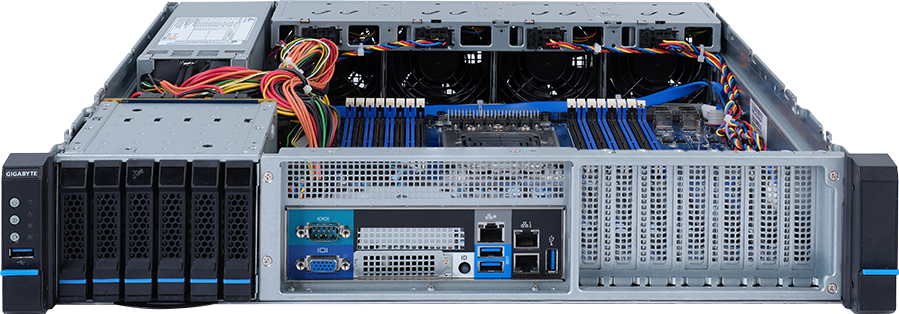

仕様
Dimensions (WxHxD, mm)
2U
439 x 86 x 449
439 x 86 x 449

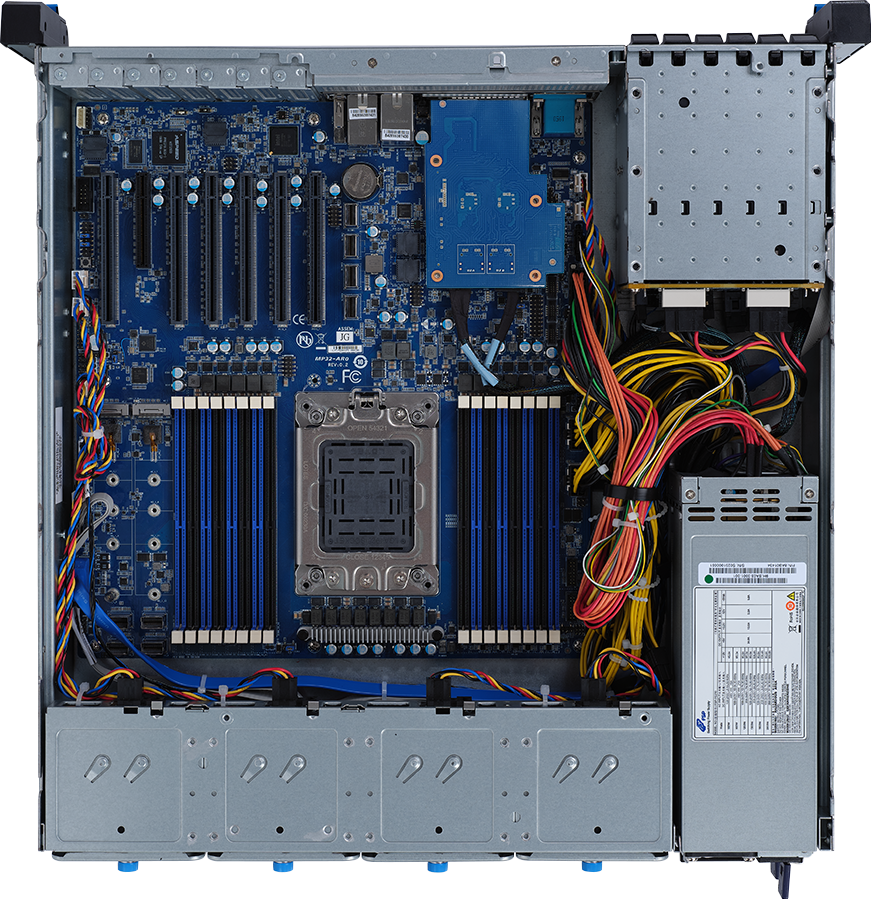

Motherboard
MP32-AR1
CPU
Ampere® Altra® Max or Altra® Processors
Single processor, TDP up to 250W
Single processor, TDP up to 250W
Socket
1 x LGA 4926
Chipset
System on Chip
Memory
16 x DIMM slots
Support DDR4 RDIMM/LRDIMM
8-Channel memory per processor
Up to 3200 MT/s
[Note] Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs.
Support DDR4 RDIMM/LRDIMM
8-Channel memory per processor
Up to 3200 MT/s
[Note] Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs.
LAN
Front:
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
6 x 2.5" SATA, from CSTO180 (ASM1164) SATA HBA
Internal M.2:
2 x M.2 (2242/2260/2280/22110), PCIe Gen4 x4
6 x 2.5" SATA, from CSTO180 (ASM1164) SATA HBA
Internal M.2:
2 x M.2 (2242/2260/2280/22110), PCIe Gen4 x4
SAS
N/A
RAID
N/A
PCIe Expansion Slots
Total 6 x LP x16 or x8 (Gen4)
Slot_7: Disabled
Slot_6: PCIe x16 (Gen4 x16)
Slot_5: PCIe x16 (Gen4 x8)
Slot_4: PCIe x16 (Gen4 x16)
Slot_3: PCIe x16 (Gen4 x8)
Slot_2: PCIe x8 (Gen4 x8)
Slot_1: PCIe x16 (Gen4 x8)
1 x OCP 2.0 mezzanine (Gen3 x16), occupied by CSTO180 (ASM1164) SATA HBA
Slot_7: Disabled
Slot_6: PCIe x16 (Gen4 x16)
Slot_5: PCIe x16 (Gen4 x8)
Slot_4: PCIe x16 (Gen4 x16)
Slot_3: PCIe x16 (Gen4 x8)
Slot_2: PCIe x8 (Gen4 x8)
Slot_1: PCIe x16 (Gen4 x8)
1 x OCP 2.0 mezzanine (Gen3 x16), occupied by CSTO180 (ASM1164) SATA HBA
Internal I/O
1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x Buzzer
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x Buzzer

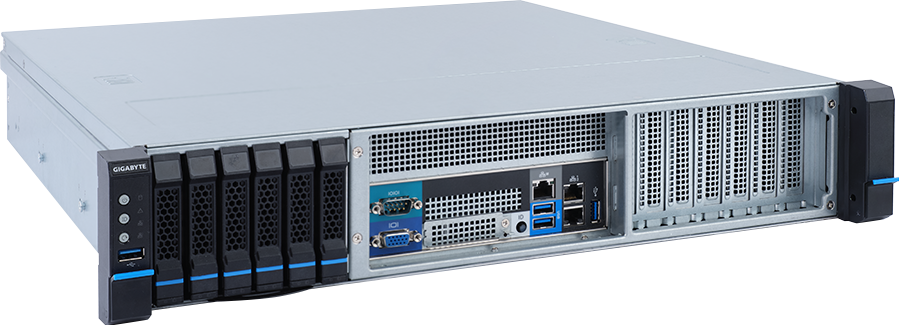

Front I/O
3 x USB 3.0 ports (Type-A)
1 x VGA port
1 x Debug port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Front Panel:
1 x USB 3.0 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x Storage activity LED
2 x LAN activity LEDs
1 x VGA port
1 x Debug port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Front Panel:
1 x USB 3.0 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x Storage activity LED
2 x LAN activity LEDs
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
Dual 800W 80 PLUS Platinum redundant power supply
System Management
ASPEED® AST2500 Baseboard Management Controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Red Hat Enterprise Linux 8.3 (aarch64) or later
Red Hat Enterprise Linux 8.5 (aarch64) or later
CentOS 8.3-2011 (aarch64) or later
CentOS-8.4.2105 (aarch64) or later
CentOS-8.5.2111 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1
Red Hat Enterprise Linux 8.5 (aarch64) or later
CentOS 8.3-2011 (aarch64) or later
CentOS-8.4.2105 (aarch64) or later
CentOS-8.5.2111 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1

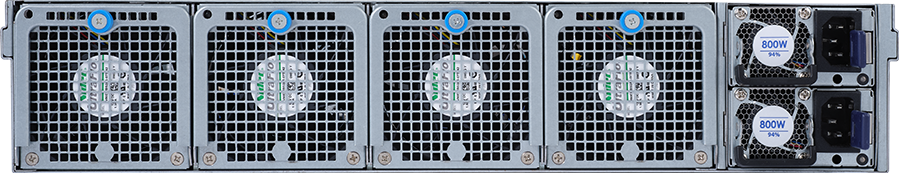

System Fans
4 x 80x80x38mm, 2-ball
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Packaging Dimensions
867 x 588 x 276 mm
Packaging Content
1 x E252-P31
1 x CPU heatsink
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
1 x CPU heatsink
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package: 6NE252P31MR-00-1*
- Motherboard: 9MP32AR1NR-00*
- CPU heatsink: 25ST1-353109-T1R
- OCP type SATA HBA Card: 9CSTO180NR-00*
Optional parts:
- 2-Section Rail kit: 25HB2-3A0205-C0R
- Motherboard: 9MP32AR1NR-00*
- CPU heatsink: 25ST1-353109-T1R
- OCP type SATA HBA Card: 9CSTO180NR-00*
Optional parts:
- 2-Section Rail kit: 25HB2-3A0205-C0R
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
