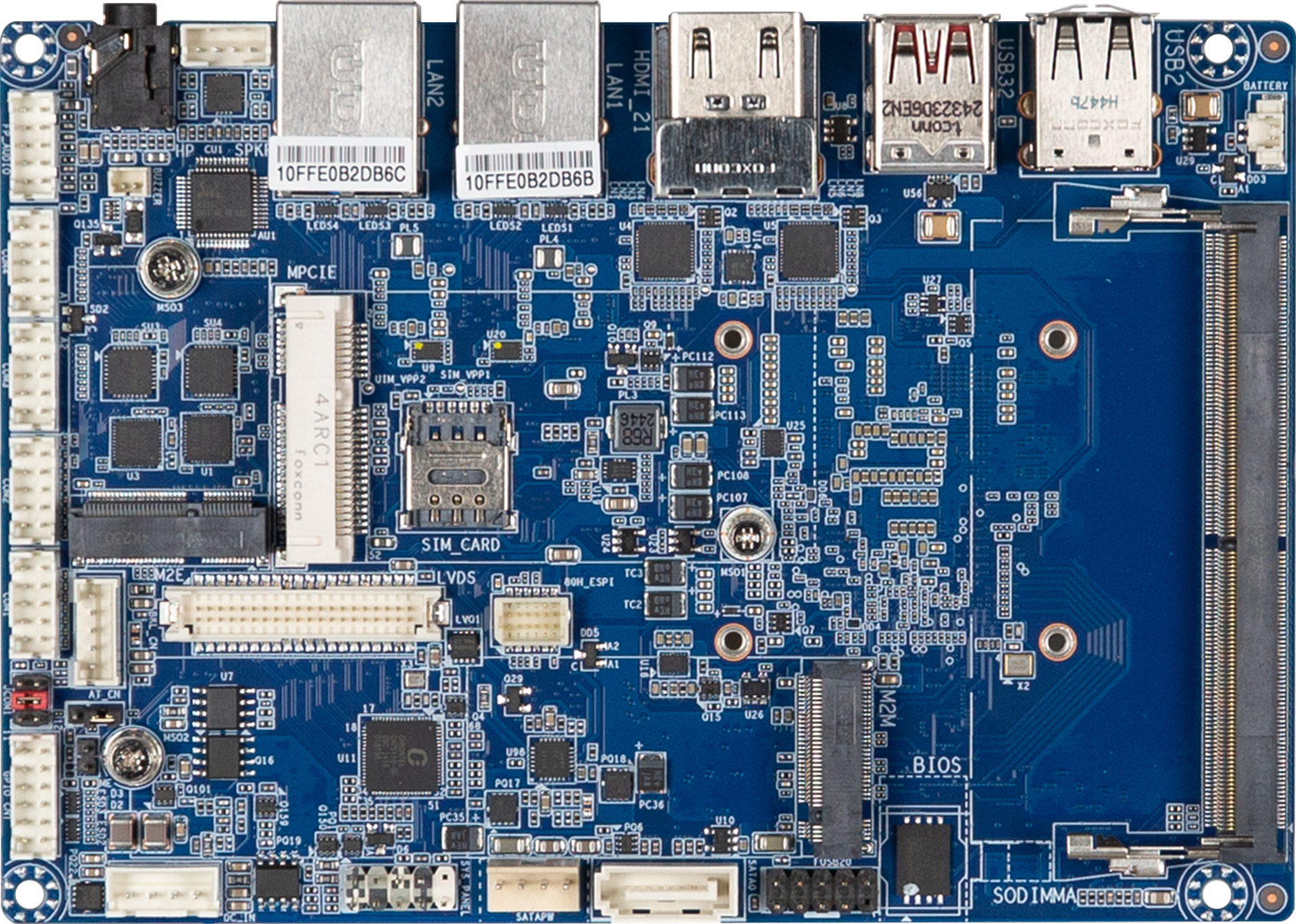

QBiP-x7433REAT
3.5" SubCompact Embedded Motherboard with Intel® x7433RE Processor, Single Channel DDR5 memory, 4 x COM, 1 x SATA 6Gb/s, 6 x USB, TPM on board
3.5" SBC
Intel® Atom x7433RE Processor
Single Channel DDR5, 1 x SO-DIMM
2 x 2.5GbE LAN Ports
1 x SATA 6Gb/s Port
HDMI, LVDS ports for multiple display
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
2 x COM Ports (RS-232)
TPM on board
Wide Temperature Embedded Motherboard
(For more product information, please contact us at sales@gigaipc.com)
(For more product information, please contact us at sales@gigaipc.com)
SPECIFICATIONS
Form Factor
3.5" SBC
146W x 101.7D(mm)
146W x 101.7D(mm)
CPU
Intel® Atom® x7433RE Processor
Intel 7, 4 cores, up to 3.40 GHz
TDP 9W
Intel 7, 4 cores, up to 3.40 GHz
TDP 9W
Socket
1 x FCBGA 1264
Memory
1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB
Support Single channel DDR5 4800 MHz memory modules
Support Single channel DDR5 4800 MHz memory modules
LAN
2 x 2.5GbE LAN Ports (Intel® I225V)
Video
Integrated Graphics Processor -Intel® UHD Graphics:
2 x HDMI 2.0 port, 1 x LVDS port
(3 independent display outputs)
2 x HDMI 2.0 port, 1 x LVDS port
(3 independent display outputs)
Audio
Realtek® ALC897
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen3x2)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)
Internal I/O
1 x 4-pin box power connector (+12V~36VDC)
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
2 x COM headers (RS-232)
1 x COM header (RS-232/422/485)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x Buzzer header
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
2 x COM headers (RS-232)
1 x COM header (RS-232/422/485)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x Buzzer header
Rear I/O
1 x Headphone Jack
2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 2.0
2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 2.0
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
INFINEON SLB9670VQ2.0
Storage
1 x SATA 6Gb/s Port
