G180-G00Legacy | Software updates supported

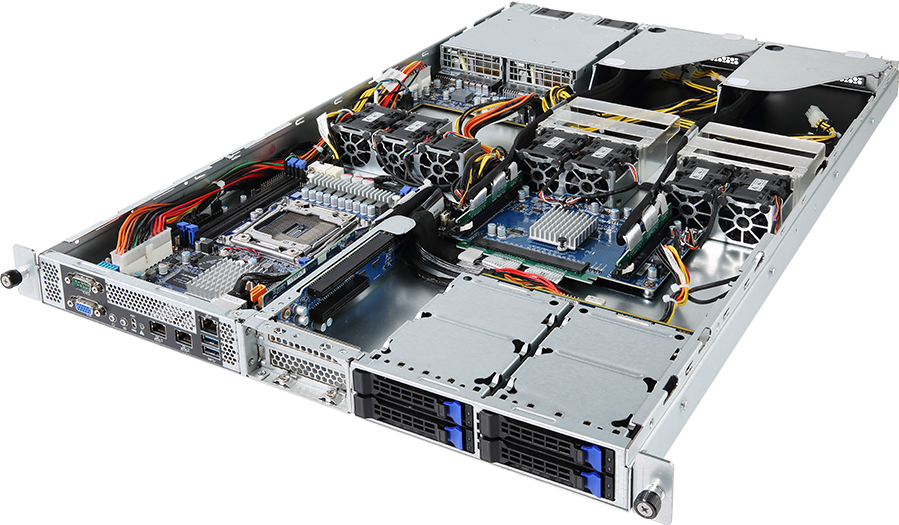

HPC Server - 2 x GPU Card Slots
- Supports up to 2 x dual slots GPU cards
- NVIDIA® validated GPU platform; Supports for NVIDIA® Tesla® GPUs
- Compatible with Intel® Visual Compute Accelerator
- Intel® Xeon® processor E5-1600 & E5-2600 v3 / v4 product families
- 4 x RDIMM/LRDIMM ECC DDR4 DIMM slots
- 2 x GbE LAN ports (Intel® I210-AT)
- 4 x 2.5" SATAIII hot-swappable HDD/SSD bays
- 80 PLUS Platinum 1200W redundant PSU
Specifications
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 740 mm
Motherboard
MG00-MP1
CPU
Supports:
Processor TDP up to 140W
- Intel® Xeon® E5-2600 V3 processors
- Intel® Xeon® E5-1600 V3 processors
- Intel® Xeon® E5-2600 V4 processors
- Intel® Xeon® E5-1600 V4 processors
Processor TDP up to 140W
Socket
1 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Mounting pitch: square ILM (80x80mm)
Chipset
Intel® C612 Express Chipset
Memory
4 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 2133/2400 MHz
LAN
2 x GbE LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
4 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
Available to support 2-port SATA DOM on motherboard
SAS card is required for SAS devices support
Available to support 2-port SATA DOM on motherboard
SAS card is required for SAS devices support
SATA
-
SAS
Supported via add-on SAS Card
RAID
Intel® SATA RAID 0/1/5/10
Peripheral Drives
-
Expansion Slots
2 x Half-length low-profile slots
- 1 x PCI-e x16 slot (Gen3 x16 or x8 bus)
- 1 x PCI-e x8 slot (Gen3 x0 or x8 bus)
NOTE: Please install optional NVMe card CNV3112 into PCIe x16 slot to enable U.2 function
2 x Full-length full-height x16 slots (Gen3 x16 bus), supporting:
- Support NVIDIA® cards
- Support Intel® Xeon Phi cards
- Support AMD® cards
Please contact us for details about the supported card models
- GIGABYTE carries out comprehensive validation to ensure support for Intel® Xeon Phi, Nvidia® and AMD® adapters.
- Note: each system is validated for population with a uniform GPU model. Support is not provided for mixed GPU populations.
- For the latest QVL, please contact your GIGABYTE representative.
- 1 x PCI-e x16 slot (Gen3 x16 or x8 bus)
- 1 x PCI-e x8 slot (Gen3 x0 or x8 bus)
NOTE: Please install optional NVMe card CNV3112 into PCIe x16 slot to enable U.2 function
2 x Full-length full-height x16 slots (Gen3 x16 bus), supporting:
- Support NVIDIA® cards
- Support Intel® Xeon Phi cards
- Support AMD® cards
Please contact us for details about the supported card models
- GIGABYTE carries out comprehensive validation to ensure support for Intel® Xeon Phi, Nvidia® and AMD® adapters.
- Note: each system is validated for population with a uniform GPU model. Support is not provided for mixed GPU populations.
- For the latest QVL, please contact your GIGABYTE representative.
Internal I/O
Per node:
1 x 24-pin ATX main power connector
1 x 8 Pin + 1 x 4 Pin ATX 12V power connectors
1 x CPU fan headers
1 x Mini-SAS HD SFF-8643 connector
1 x USB 3.0 header
2 x SATA III 6Gb/s port, SATA DOM supported
1 x TPM header
1 x PMBUS header
1 x IPMB connector
1 x Clear CMOS jumper
1 x 24-pin ATX main power connector
1 x 8 Pin + 1 x 4 Pin ATX 12V power connectors
1 x CPU fan headers
1 x Mini-SAS HD SFF-8643 connector
1 x USB 3.0 header
2 x SATA III 6Gb/s port, SATA DOM supported
1 x TPM header
1 x PMBUS header
1 x IPMB connector
1 x Clear CMOS jumper
Front I/O
2 x USB 3.0
3 x RJ45
1 x VGA
1 x Serial
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x NMI button
1 x Reset button
3 x RJ45
1 x VGA
1 x Serial
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x NMI button
1 x Reset button
Rear I/O
-
Backplane Board
4 x SAS/SATA ports
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
Power Supply[#1]
2 x 1200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
VMware ESXi 6.5
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
VMware ESXi 6.5
System Fans
1 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (23,000rpm)
4 x 40x40x56mm (25,000rpm)
2 x 40x40x56mm (23,000rpm)
4 x 40x40x56mm (25,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
L6 system: 11.2kg
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x G180-G00
1 x Quick Start Guide
1 x CPU heatsinks
1 x Rail kit
1 x Quick Start Guide
1 x CPU heatsinks
1 x Rail kit
Part Numbers
Barebone package: 6NG180G00MR-00
Spare parts list:
- Motherboard: 9MG00MP1NR-00
- Rail kit: 25HB2-3A0202-K0R
- Back plane board: 9COBP340NR-00
- Power supply: 25EP0-212002-F3S
Spare parts list:
- Motherboard: 9MG00MP1NR-00
- Rail kit: 25HB2-3A0202-K0R
- Back plane board: 9COBP340NR-00
- Power supply: 25EP0-212002-F3S
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
