• 第6世代 Intel® Core™ プロセッサーを搭載
  • ウルトラコンパクトPC設計 0.6L (46.8 x 112.6 x 119.4mm)
  • 2.5” HDD/SSD, 7.0/9.5 mmハードドライブ (1 x 6 Gbps SATA 3)をサポート
  • 1 x M.2 SSD (2280) slot
  • 2 x SO-DIMM DDR4 スロット (2133 MHz)
  • Intel® IEEE 802.11 ac ,デュアルバンドWi-Fi & Bluetooth 4.0対応 NGFF M.2 カード搭載
  • HDMIとMini DisplayPort用出力端子 (2画面表示サポート)
  • Intel® HD Graphics 520
  • 4 x USB 3.0
  • 1 x Thunderbolt™ 3 ポート(Type C)搭載
  • HDMI 2.0
  • Intel ギガビットLAN搭載
  • ヘッドフォンとマイク端子搭載
  • VESA対応マウントブラケットを付属 (75 x 75mm + 100 x 100mm)

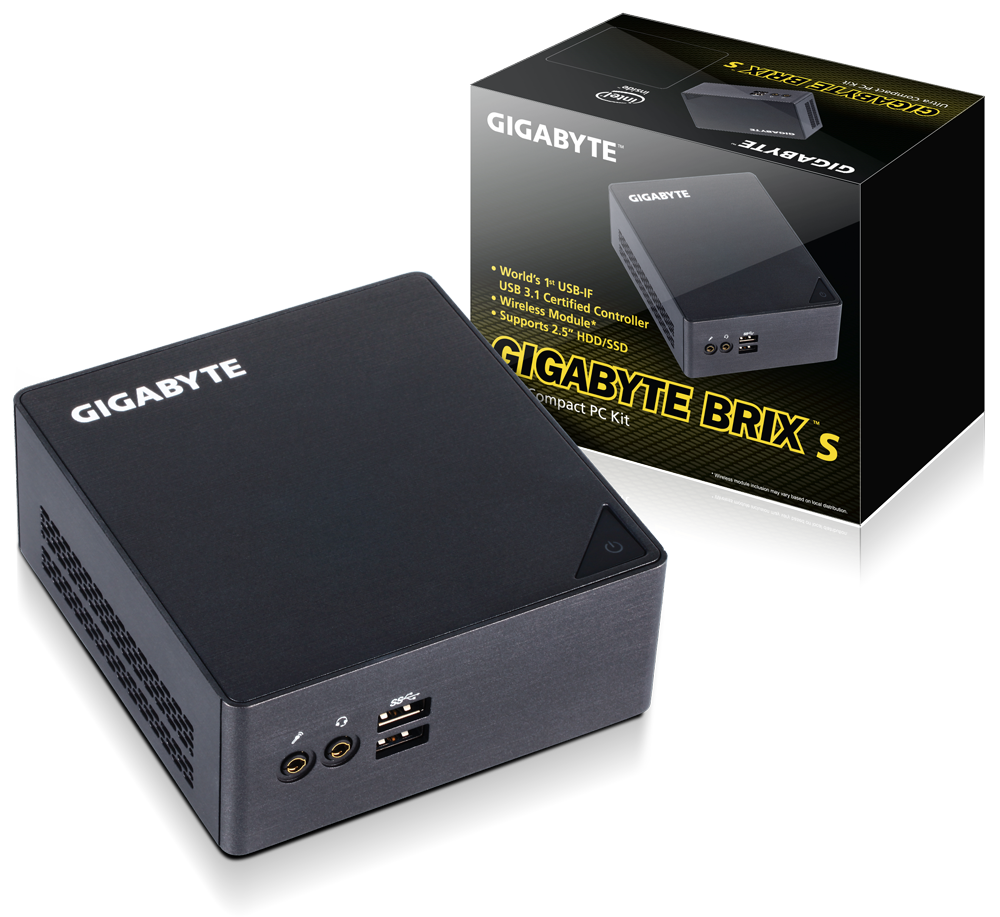

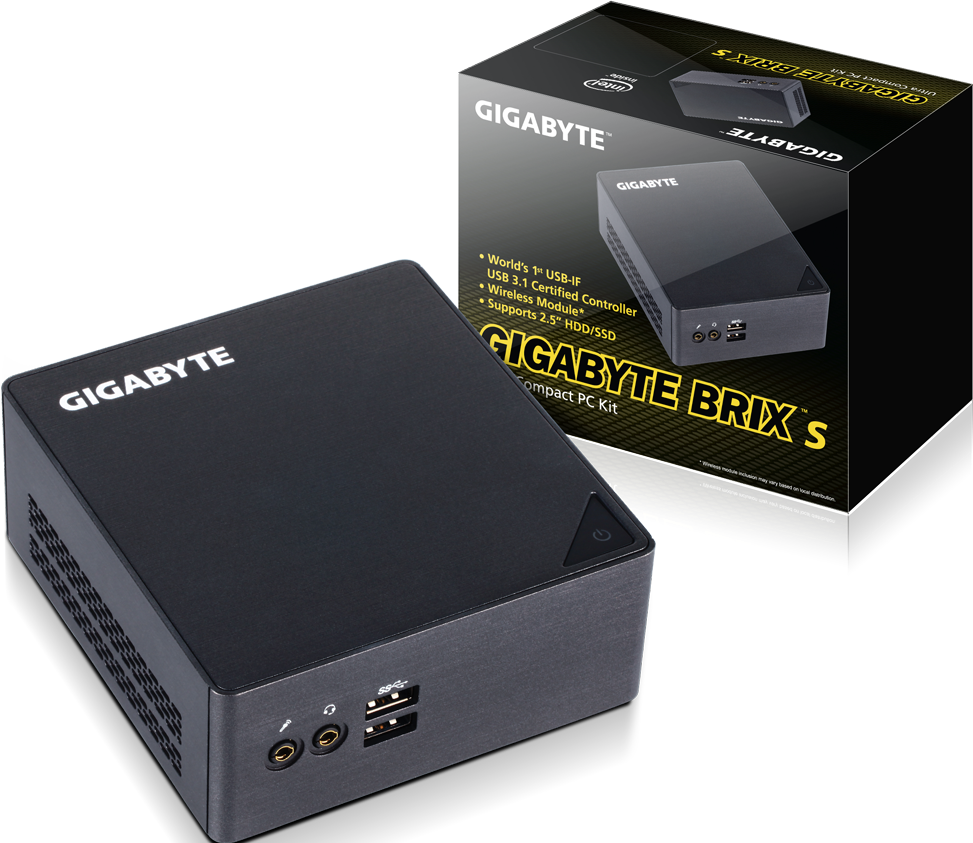

  • Redefining the Desktop PC
    Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
  • Intel® Thunderbolt™ 3 Controller, Opening a World of New Possibilities
    The new Thunderbolt™ 3 protocol, which also supports USB 3.1 over a Type-C™ connector on the back panel of the GIGABYTE BRIX T models, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2, which is able to drive a 4K resolution display at 60 FPS, and USB 3.1, also backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities. Additionally, Thunderbolt 3 over USB Type-C has the ability to daisy-chain up to 6 devices, helping you to declutter your desktop and have a true one-cable solution.

  • Dual Display
    With support for HDMI and DisplayPort, the BRIX can power two displays simultaneously, making a perfect choice as a high productivity PC in professional and home environments, or in any number of industrial and commercial multi-display applications.
  • Extreme Intel® USB 3.1 Controller
    GIGABYTE introduces the fast 10Gb/s USB3.1 Gen2 protocol to its BRIX units over the new reversible USB Type-C™ port. Powered by the Intel® USB 3.1 controller which utilizes 4 PCIe Gen 3 lanes, the GIGABYTE BRIX Type-C™ port is presented with a wide and uncompromised bandwidth to reach the limits of the USB 3.1 protocol and make back-ups or file transfers a quick operation, Additionally, USB 3.1 is backwards compatible with USB 2.0 and 3.0 making the GIGABYTE BRIX a versatile and widely compatible small form factor PC over a wider range of devices.

  • Connecting the Future - USB Type-C™: The World's Next Universal Connector
    Reversible Dual USB Type-C™ with USB 3.1
    The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed. Powered by the Intel® USB 3.1 controller, this little port provides the best USB Type-C™ experience possible. * Display feature may vary by model.
    * Display feature may vary by model.



    USB 3.0 and Network Connectivity
    GIGABYTE BRIX™ also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth devices and peripherals, as well as allowing users to easily connect mobile devices.
  • Flexible Compact PC Kit
    The BRIX is sold as a DIY PC kit, shipping with a NGFF M.2 Wi-Fi module pre-installed, plus a power adapter and cable conforming to local standards. Requiring only system memory and M.2 SSD, the BRIX gives users the flexibility to independently choose integrated storage and system memory size, without the trouble of sourcing components that are not widely available on the retail market.
  • Enjoy Always Available Responsiveness With Intel® Ready Mode Technology
    Now there’s no waiting to resume activity on your PC. With Intel® Ready Mode Technology, your PC resumes to fully functional in an instant. It works by providing an alternative to traditional sleep-a quiet, low power state similar to the kind used by your cell phone and tablet...more

    With Intel® Ready Mode Technology You Can…



    Access Your Digital Files - From Anywhere, Anytime
    Get remote access to your PC through applications on your phone and tablet to download photos, video, large files and more, no matter where you are.    		   Get Help From Your Digital Assistant Just by Asking
    An always available PC complements Microsoft Windows® 10 enabled experiences Cortana*. When you need Cortana*, all you have to do is say "Hey Cortana," and your digital assistant is instantly at your service.    		   Keep Everything Up-to-Date With Automatic Syncing
    Set your Intel® Ready Mode Technology - equipped PC to sync and store photos and files across devices automatically when you arrive at home or the office. And application updates? They're automatic too, which means you'll always work with the latest versions of your favorite tools.
  • INTEL® SMALL BUSINESS ADVANTAGE
    With 6th Generation Intel® Core™ Processor
    Hardware-enhanced Security and Productivity Solution with built in IT
    Combination of Firmware and Software usages in one intuitive Customizable UI
  • VESA Support
    Bundled with a VESA bracket, the BRIX can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This makes it simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
  • 2.5” SATA Hard Drive Support
    Utilizing SATA III 6Gb/s high speed data transfer technology, the GIGABYTE BRIX s supports the installation of one 2.5” SATA hard drive and one M.2 SSD module. This allows for optimized storage configurations which combine fast SSD performance with larger capacity hard drives.







* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
