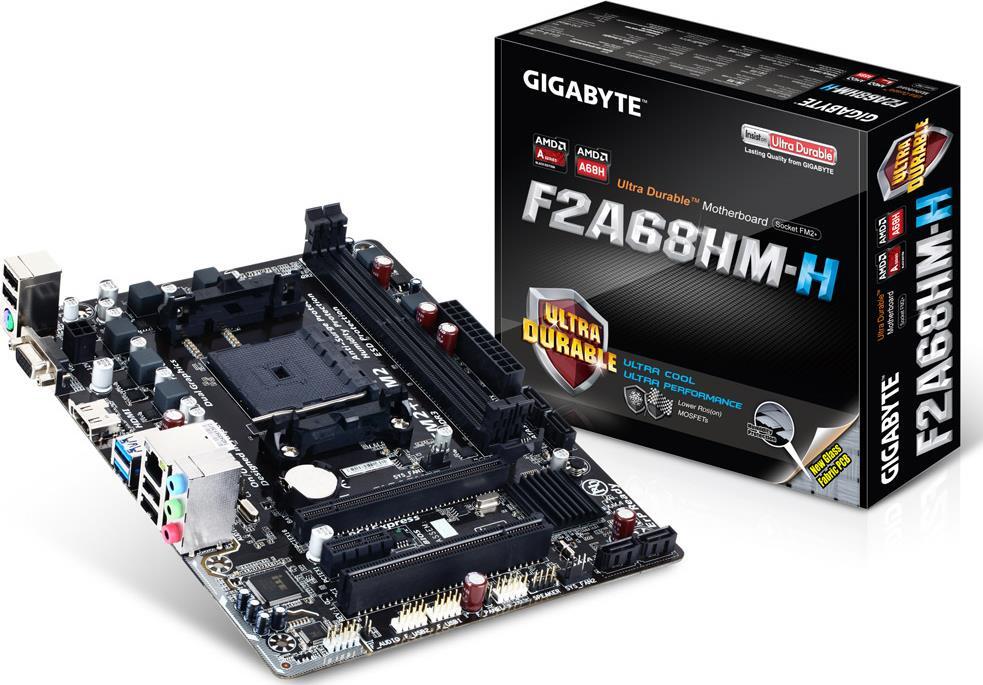

GA-F2A68HM-H (Rev. 1.0)

AMD A68H chipset
概要スペックサポートニュース＆受賞Where to Buy

スペック

  • APU
  • FM2+ Socket:
    1. AMD A series processors
    2. AMD Athlon™ series processors
    (Please refer "CPU Support List" for more information.)
  • チップセット
    1. AMD A68H
  • メモリー
    1. 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
      2. * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
    4. Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • 映像出力端子
  • Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160
      3. * The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
      * Support for HDMI 1.4a version.
    3. Maximum shared memory of 2 GB
  • オーディオ
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      4. * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • 有線 LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • 拡張スロット
    1. 1 x PCI Express x16 slot, running at x16
      2. (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
      * To support PCI Express 3.0, you must install an FM2+ APU.
    2. 1 x PCI Express x1 slot
      3. (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
    3. 1 x PCI slot
  • マルチ・グラフィックス
    1. Support for AMD Dual Graphics technology
      2. * Only A series APUs support AMD Dual Graphics.
    2. Support for AMD Eyefinity technology
  • ストレージ端子
  • Chipset:
    1. 4 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, RAID 10, and JBOD
  • USB 端子
  • Chipset:
    1. 2 x USB 3.0/2.0 ports on the back panel
    2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • 内部入出力端子
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x APU fan header
    5. 2 x system fan headers
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 2 x USB 2.0/1.1 headers
    10. 1 x speaker header
    11. 1 x Clear CMOS jumper
    12. 1 x chassis intrusion header
  • バックパネル端子
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 2 x USB 3.0/2.0 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O コントローラー
    1. iTE® I/O Controller Chip
  • ハードウェア・モニター
    1. System voltage detection
    2. APU/System temperature detection
    3. APU/System fan speed detection
    4. APU overheating warning
    5. APU/System fan fail warning
    6. APU/System fan speed control
      7. * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • 独自機能
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Install
    4. Support for EasyTune
      5. * Available functions in EasyTune may differ by motherboard model.
    5. Support for Smart Recovery 2
    6. Support for ON/OFF Charge
  • バンドル・ソフトウェア
    1. Norton® Internet Security (OEM version)
  • 対応 OS
    1. Support for Windows 8.1/7 32-bit/64-bit
    2. Support for Windows XP 32-bit
      3. * To support Windows XP 32-bit, you must install an AMD FM2+ Kaveri APU.
      * It requires Service Pack 3 to support Windows XP driver installation.
  • フォームファクター
    1. Micro ATX Form Factor; 22.6cm x 17.4cm
  • 注意
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
  • APU
  • FM2+ Socket:
    1. AMD A series processors
    2. AMD Athlon™ series processors
    (Please refer "CPU Support List" for more information.)
  • チップセット
    1. AMD A68H
  • メモリー
    1. 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
      2. * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
    4. Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • 映像出力端子
  • Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160
      3. * The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
      * Support for HDMI 1.4a version.
    3. Maximum shared memory of 2 GB
  • オーディオ
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      4. * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • 有線 LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • 拡張スロット
    1. 1 x PCI Express x16 slot, running at x16
      2. (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
      * To support PCI Express 3.0, you must install an FM2+ APU.
    2. 1 x PCI Express x1 slot
      3. (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
    3. 1 x PCI slot
  • マルチ・グラフィックス
    1. Support for AMD Dual Graphics technology
      2. * Only A series APUs support AMD Dual Graphics.
    2. Support for AMD Eyefinity technology
  • ストレージ端子
  • Chipset:
    1. 4 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, RAID 10, and JBOD
  • USB 端子
  • Chipset:
    1. 2 x USB 3.0/2.0 ports on the back panel
    2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • 内部入出力端子
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x APU fan header
    5. 2 x system fan headers
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 2 x USB 2.0/1.1 headers
    10. 1 x speaker header
    11. 1 x Clear CMOS jumper
    12. 1 x chassis intrusion header
  • バックパネル端子
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 2 x USB 3.0/2.0 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O コントローラー
    1. iTE® I/O Controller Chip
  • ハードウェア・モニター
    1. System voltage detection
    2. APU/System temperature detection
    3. APU/System fan speed detection
    4. APU overheating warning
    5. APU/System fan fail warning
    6. APU/System fan speed control
      7. * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • 独自機能
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Install
    4. Support for EasyTune
      5. * Available functions in EasyTune may differ by motherboard model.
    5. Support for Smart Recovery 2
    6. Support for ON/OFF Charge
  • バンドル・ソフトウェア
    1. Norton® Internet Security (OEM version)
  • 対応 OS
    1. Support for Windows 8.1/7 32-bit/64-bit
    2. Support for Windows XP 32-bit
      3. * To support Windows XP 32-bit, you must install an AMD FM2+ Kaveri APU.
      * It requires Service Pack 3 to support Windows XP driver installation.
  • フォームファクター
    1. Micro ATX Form Factor; 22.6cm x 17.4cm
  • 注意
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
