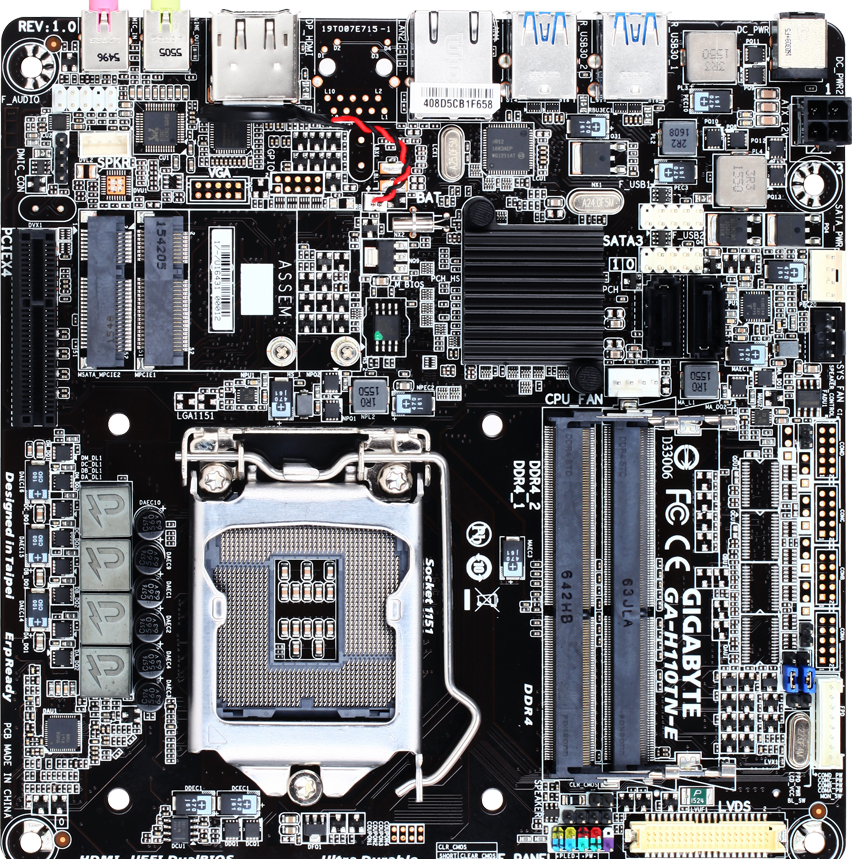

GA-H110TN-E (Rev. 1.0)

Intel® H110 Chipset
概要スペックサポートニュース＆受賞Where to Buy

スペック

  • 対応 CPU
    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
      * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • チップセット
    1. Intel® H110 Express Chipset
  • メモリー
    1. 2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 2400/2133 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • 映像出力端子
  • Integrated Graphics Processor-Intel® HD Graphics support
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 1024 MB
  • オーディオ
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
  • 有線 LAN
    1. 1 x Intel® GbE LAN chips (10/100/1000 Mbit)
  • 拡張スロット
    1. 1 x PCI Express x4 slot
      (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
    2. 1 x full size Mini PCIe slot (MSATA_MPCIE2)
      * The MSATA_MPCIE2 slot can also be used as an MSATA connector.
    3. 1 x half size Mini PCIe slot (MPCIE1)
      (The Mini PCIe slot conforms to PCI Express 2.0 standard.)
  • ストレージ端子
  • Chipset:
    1. 2 x SATA 6Gb/s connectors
    2. 1 x MSATA connector (MSATA_MPCIE2)
  • USB 端子
  • Chipset:
    1. 4 x USB 3.0/2.0 ports on the back panel
    2. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • 内部入出力端子
    1. 1 x 4-pin ATX 12V power connector
    2. 1 x CPU fan header
    3. 1 x system fan header
    4. 2 x SATA 6Gb/s connectors
    5. 1 x MSATA connector (MSATA_MPCIE2)
    6. ŠŠ1 x SATA power connector
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x battery cable header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x digital microphone header
    12. 1 x LVDS header
    13. 1 x LVDS drive voltage jumper
    14. 1 x flat panel display header
    15. 1 x flat panel display power jumper
    16. 1 x flat panel display switch header
    17. 1 x backlight switch header
    18. 1 x speaker header
    19. 1 x buzzer header
    20. 1 x Clear CMOS jumper
    21. 1 x chassis intrusion header
  • バックパネル端子
    1. 1 x DC In power connector
    2. 1 x HDMI port
    3. 1 x DisplayPort
    4. 4 x USB 3.0/2.0 ports
    5. 1 x RJ-45 port
    6. 2 x audio jacks (Line Out, Mic In)
  • I/O コントローラー
    1. iTE® I/O Controller Chip
  • ハードウェア・モニター
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan fail warning
    4. CPU/System fan speed detection
    5. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • 独自機能
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
    2. Support for Q-Flash
  • バンドル・ソフトウェア
    1. Norton® Internet Security (OEM version)
  • 対応 OS
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • フォームファクター
    1. Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
  • 動作周囲温度
  • 0°C to +60°C
  • 注意
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • 対応 CPU
      1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
        * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • チップセット
      1. Intel® H110 Express Chipset
    • メモリー
      1. 2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR4 2400/2133 MHz memory modules
      (Please refer "Memory Support List" for more information.)
    • 映像出力端子
    • Integrated Graphics Processor-Intel® HD Graphics support
      1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
        * Support for DisplayPort 1.2 version.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
        * Support for HDMI 1.4 version.
      Maximum shared memory of 1024 MB
    • オーディオ
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
    • 有線 LAN
      1. 1 x Intel® GbE LAN chips (10/100/1000 Mbit)
    • 拡張スロット
      1. 1 x PCI Express x4 slot
        (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
      2. 1 x full size Mini PCIe slot (MSATA_MPCIE2)
        * The MSATA_MPCIE2 slot can also be used as an MSATA connector.
      3. 1 x half size Mini PCIe slot (MPCIE1)
        (The Mini PCIe slot conforms to PCI Express 2.0 standard.)
    • ストレージ端子
    • Chipset:
      1. 2 x SATA 6Gb/s connectors
      2. 1 x MSATA connector (MSATA_MPCIE2)
    • USB 端子
    • Chipset:
      1. 4 x USB 3.0/2.0 ports on the back panel
      2. 4 x USB 2.0/1.1 ports available through the internal USB headers
    • 内部入出力端子
      1. 1 x 4-pin ATX 12V power connector
      2. 1 x CPU fan header
      3. 1 x system fan header
      4. 2 x SATA 6Gb/s connectors
      5. 1 x MSATA connector (MSATA_MPCIE2)
      6. ŠŠ1 x SATA power connector
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x battery cable header
      10. 2 x USB 2.0/1.1 headers
      11. 1 x digital microphone header
      12. 1 x LVDS header
      13. 1 x LVDS drive voltage jumper
      14. 1 x flat panel display header
      15. 1 x flat panel display power jumper
      16. 1 x flat panel display switch header
      17. 1 x backlight switch header
      18. 1 x speaker header
      19. 1 x buzzer header
      20. 1 x Clear CMOS jumper
      21. 1 x chassis intrusion header
    • バックパネル端子
      1. 1 x DC In power connector
      2. 1 x HDMI port
      3. 1 x DisplayPort
      4. 4 x USB 3.0/2.0 ports
      5. 1 x RJ-45 port
      6. 2 x audio jacks (Line Out, Mic In)
    • I/O コントローラー
      1. iTE® I/O Controller Chip
    • ハードウェア・モニター
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan fail warning
      4. CPU/System fan speed detection
      5. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • 独自機能
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
      2. Support for Q-Flash
    • バンドル・ソフトウェア
      1. Norton® Internet Security (OEM version)
    • 対応 OS
      1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
      2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • フォームファクター
      1. Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
    • 動作周囲温度
    • 0°C to +60°C
    • 注意
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * HDMI、HDMI High-Definition Multimedia Interfaceという語、HDMIのトレードドレスおよびHDMIのロゴは、HDMI Licensing Administrator, Inc.の商標または登録商標です。
      * ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
      * パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
      * 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
      * メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
