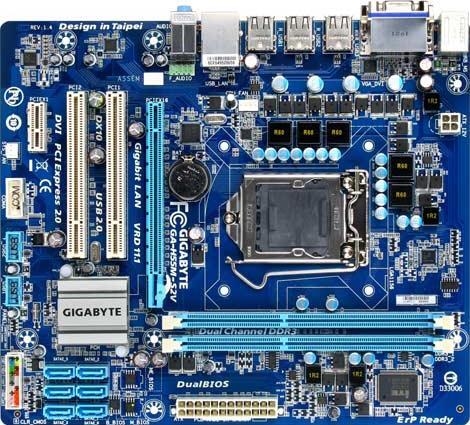

GA-H55M-S2V (Rev. 1.4)

Intel® H55 Chipset
概要スペックサポートニュース＆受賞Where to Buy

スペック

  • 対応 CPU
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
    2. L3 cache varies with CPU
  • チップセット
    1. Intel® H55 Express Chipset
  • メモリー
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 2200/1800/1600/1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
  • 映像出力端子
  • Integrated in the Chipset:
    1. 1 x DVI-D port (Note 2)(Note 3)
    2. 1 x D-Sub port (Note 2)
  • オーディオ
    1. Realtek ALC888B codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note 4)
  • 有線 LAN
    1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
  • 拡張スロット
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
    2. 1 x PCI Express x1 slot
    3. 2 x PCI slots
  • ストレージ端子
  • Chipset:
    1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
  • USB 端子
  • Chipset:
    1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • 内部入出力端子
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 6 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 2 x USB 2.0/1.1 headers
    9. 1 x serial port header
    10. 1 x clearing CMOS jumper
  • バックパネル端子
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port (Note 2)
    4. 1 x DVI port (Note 2)(Note 3)
    5. 8 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In/Line Out/Microphone)
  • I/O コントローラー
    1. iTE IT8720 chip
  • ハードウェア・モニター
    1. System voltage detection
    2. CPU temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU fan speed control (Note 5)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • 独自機能
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 6)
    8. Support for Auto Green
    9. Support for ON/OFF Charge
    10. Support for Q-Share
  • バンドル・ソフトウェア
    1. Norton Internet Security (OEM version)
  • 対応 OS
    1. Support for Microsoft® Windows 7/Vista/XP
  • フォームファクター
    1. Micro ATX Form Factor; 24.4cm x 21.0cm
  • 注記
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) To use the onboard DVI-D/D-Sub port, you must install an Intel CPU with integrated graphics.
    (Note 3) The DVI-D port does not support D-Sub connection by adapter.
    (Note 4) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    (Note 5) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
    (Note 6) Available functions in EasyTune may differ by motherboard model.
  • 注意
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • 対応 CPU
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
      2. L3 cache varies with CPU
    • チップセット
      1. Intel® H55 Express Chipset
    • メモリー
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
      2. Dual channel memory architecture
      3. Support for DDR3 2200/1800/1600/1333/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
    • 映像出力端子
    • Integrated in the Chipset:
      1. 1 x DVI-D port (Note 2)(Note 3)
      2. 1 x D-Sub port (Note 2)
    • オーディオ
      1. Realtek ALC888B codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel (Note 4)
    • 有線 LAN
      1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
    • 拡張スロット
      1. 1 x PCI Express x16 slot, running at x16
        (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
      2. 1 x PCI Express x1 slot
      3. 2 x PCI slots
    • ストレージ端子
    • Chipset:
      1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
    • USB 端子
    • Chipset:
      1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    • 内部入出力端子
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 6 x SATA 3Gb/s connectors
      4. 1 x CPU fan header
      5. 1 x system fan header
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 2 x USB 2.0/1.1 headers
      9. 1 x serial port header
      10. 1 x clearing CMOS jumper
    • バックパネル端子
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port (Note 2)
      4. 1 x DVI port (Note 2)(Note 3)
      5. 8 x USB 2.0/1.1 ports
      6. 1 x RJ-45 port
      7. 3 x audio jacks (Line In/Line Out/Microphone)
    • I/O コントローラー
      1. iTE IT8720 chip
    • ハードウェア・モニター
      1. System voltage detection
      2. CPU temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU fan speed control (Note 5)
    • BIOS
      1. 2 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • 独自機能
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune (Note 6)
      8. Support for Auto Green
      9. Support for ON/OFF Charge
      10. Support for Q-Share
    • バンドル・ソフトウェア
      1. Norton Internet Security (OEM version)
    • 対応 OS
      1. Support for Microsoft® Windows 7/Vista/XP
    • フォームファクター
      1. Micro ATX Form Factor; 24.4cm x 21.0cm
    • 注記
    • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      (Note 2) To use the onboard DVI-D/D-Sub port, you must install an Intel CPU with integrated graphics.
      (Note 3) The DVI-D port does not support D-Sub connection by adapter.
      (Note 4) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
      (Note 5) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
      (Note 6) Available functions in EasyTune may differ by motherboard model.
    • 注意
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * HDMI、HDMI High-Definition Multimedia Interfaceという語、HDMIのトレードドレスおよびHDMIのロゴは、HDMI Licensing Administrator, Inc.の商標または登録商標です。
      * ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
      * パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
      * 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
      * メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
