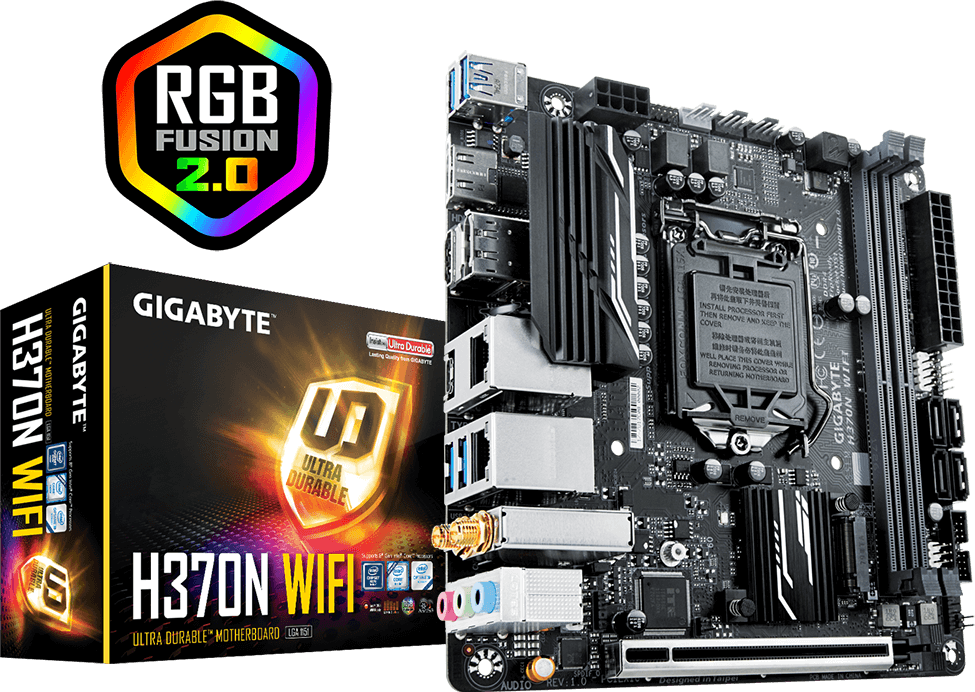

H370N WIFI (Rev. 1.0)

Intel® H370 Chipset
主な特徴スペックサポートニュース＆受賞Where to Buy

スペック

  • 対応 CPU
    1. Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors//Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • チップセット
    1. Intel® H370 Express Chipset
  • メモリー
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 2666/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
      * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
    (Please refer "Memory Support List" for more information.)
  • 映像出力端子
  • Integrated Graphics Processor+MegaChips MCDP2800 chip:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
      (Requires the latest Intel® graphics driver from the GIGABYTE website.)
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2.
    Support for up to 3 displays at the same time
    Maximum shared memory of 1 GB
    Actual support may vary by CPU.
  • オーディオ
    1. Realtek® ALC1220-VB codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • 有線 LAN
    1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
  • 無線 LAN
    1. Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5
    3. Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • 拡張スロット
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  • ストレージ端子
  • Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
    2. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2)*
      * The connector is on the back of the motherboard.
    3. 4 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Intel® Optane™ Memory Ready
  • USB 端子
  • Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
    2. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    3. 2 x USB 2.0/1.1 ports available through the internal USB header
  • 内部入出力端子
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 4 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 2 x system fan headers
    7. 1 x digital LED strip header
    8. 1 x digital LED strip power select jumper
    9. 1 x RGB (RGBW) LED strip header
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x USB 3.1 Gen 1 header
    13. 1 x USB 2.0/1.1 header
    14. 1 x S/PDIF Out header
    15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    16. 1 x speaker header
    17. 1 x Clear CMOS jumper
    18. 1 x chassis intrusion header
  • バックパネル端子
    1. 1 x DisplayPort
    2. 2 x HDMI ports
    3. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
    4. 4 x USB 3.1 Gen 1 ports
    5. 2 x RJ-45 ports
    6. 2 x SMA antenna connectors (2T2R)
    7. 3 x audio jacks
  • I/O コントローラー
    1. iTE® I/O Controller Chip
  • ハードウェア・モニター
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • 独自機能
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • バンドル・ソフトウェア
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • 対応 OS
    1. Support for Windows 10 64-bit
  • フォームファクター
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • 注意
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • 対応 CPU
      1. Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors//Intel® Celeron® processors in the LGA1151 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • チップセット
      1. Intel® H370 Express Chipset
    • メモリー
      1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR4 2666/2400/2133 MHz memory modules
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
        * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
      (Please refer "Memory Support List" for more information.)
    • 映像出力端子
    • Integrated Graphics Processor+MegaChips MCDP2800 chip:
      1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
        (Requires the latest Intel® graphics driver from the GIGABYTE website.)
      Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
        * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
        * Support for HDMI 1.4 version and HDCP 2.2.
      Support for up to 3 displays at the same time
      Maximum shared memory of 1 GB
      Actual support may vary by CPU.
    • オーディオ
      1. Realtek® ALC1220-VB codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
      4. Support for S/PDIF Out
    • 有線 LAN
      1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
    • 無線 LAN
      1. Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
      2. BLUETOOTH 5
      3. Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
        * Actual data rate may vary depending on environment and equipment.
    • 拡張スロット
      1. 1 x PCI Express x16 slot, running at x16
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    • ストレージ端子
    • Chipset:
      1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
      2. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2)*
        * The connector is on the back of the motherboard.
      3. 4 x SATA 6Gb/s connectors
      4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      Intel® Optane™ Memory Ready
    • USB 端子
    • Chipset:
      1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
      2. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      3. 2 x USB 2.0/1.1 ports available through the internal USB header
    • 内部入出力端子
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 2 x M.2 Socket 3 connectors
      4. 4 x SATA 6Gb/s connectors
      5. 1 x CPU fan header
      6. 2 x system fan headers
      7. 1 x digital LED strip header
      8. 1 x digital LED strip power select jumper
      9. 1 x RGB (RGBW) LED strip header
      10. 1 x front panel header
      11. 1 x front panel audio header
      12. 1 x USB 3.1 Gen 1 header
      13. 1 x USB 2.0/1.1 header
      14. 1 x S/PDIF Out header
      15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      16. 1 x speaker header
      17. 1 x Clear CMOS jumper
      18. 1 x chassis intrusion header
    • バックパネル端子
      1. 1 x DisplayPort
      2. 2 x HDMI ports
      3. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
      4. 4 x USB 3.1 Gen 1 ports
      5. 2 x RJ-45 ports
      6. 2 x SMA antenna connectors (2T2R)
      7. 3 x audio jacks
    • I/O コントローラー
      1. iTE® I/O Controller Chip
    • ハードウェア・モニター
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • 独自機能
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        @BIOS
        AutoGreen
        Cloud Station
        EasyTune
        Easy RAID
        Fast Boot
        Game Boost
        ON/OFF Charge
        Platform Power Management
        RGB Fusion
        Smart Backup
        Smart Keyboard
        Smart TimeLock
        Smart HUD
        System Information Viewer
        USB Blocker
        V-Tuner
      2. Support for Q-Flash
      3. Support for Xpress Install
    • バンドル・ソフトウェア
      1. Norton® Internet Security (OEM version)
      2. cFosSpeed
    • 対応 OS
      1. Support for Windows 10 64-bit
    • フォームファクター
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm
    • 注意
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * HDMI、HDMI High-Definition Multimedia Interfaceという語、HDMIのトレードドレスおよびHDMIのロゴは、HDMI Licensing Administrator, Inc.の商標または登録商標です。
      * ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
      * パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
      * 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
      * メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
