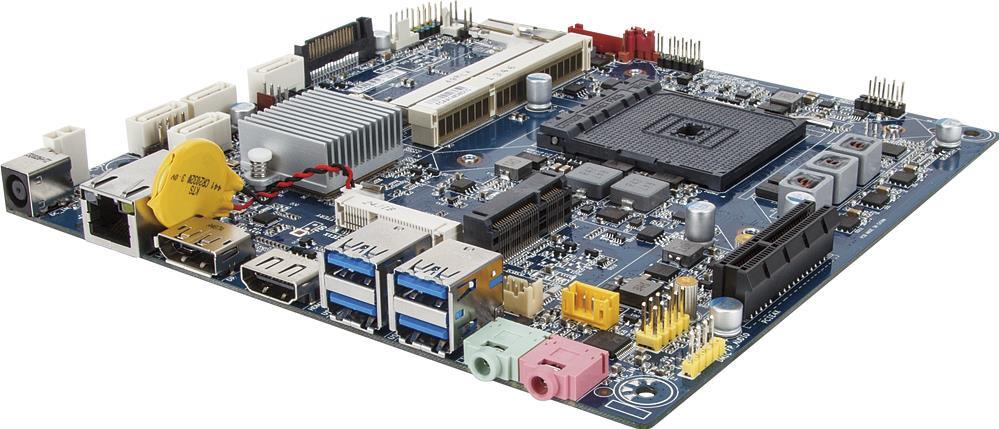

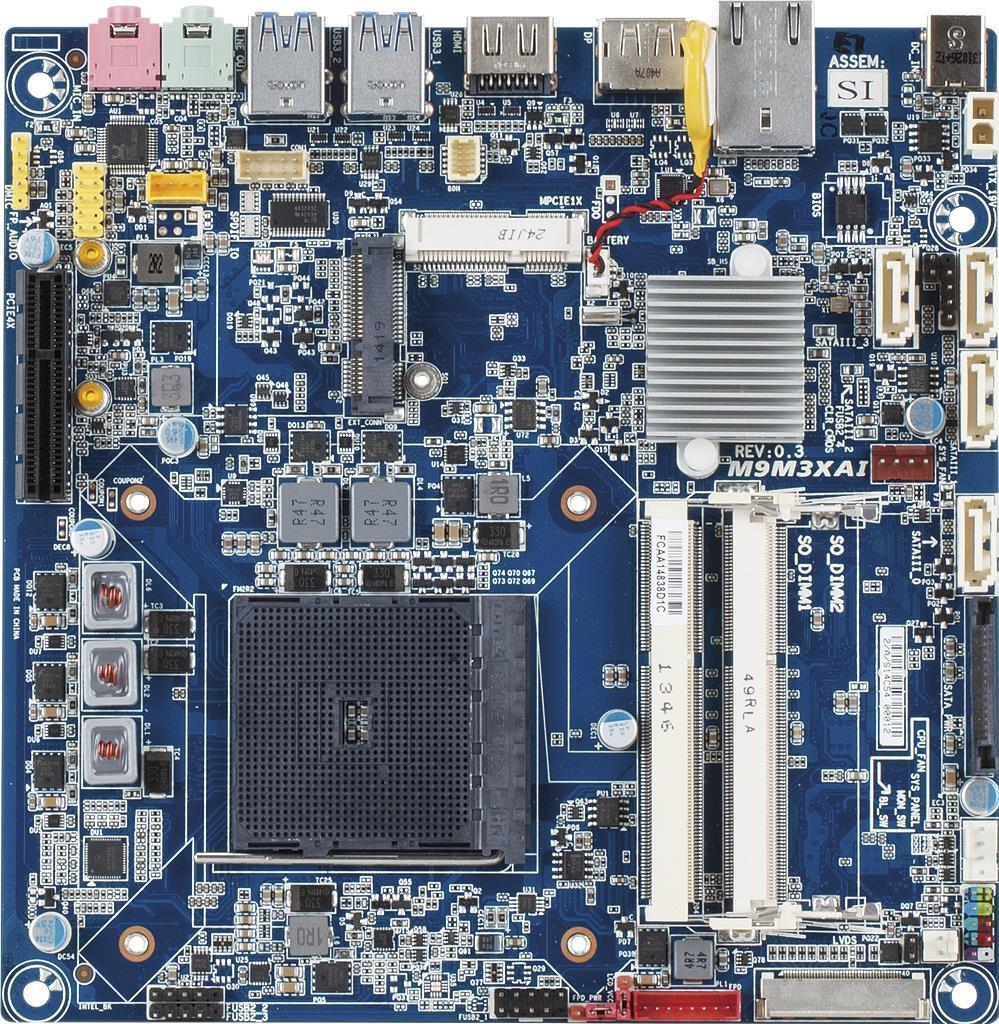

M9M3XAILegacy | Software updates supported

Thin Mini-ITX
170W x 170D (mm)

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)Š
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)

Supports AMD A series APU or Athlon™ series CPU

1 x FM2+

AMD A75

2 x SO-DIMM DDR3/DDR3L slots
Dual channel memory architecture
Up to 16GB
1.35V, 1.5V modules: 1600/1866/2133 MHz

1 x GbE LAN port (Realtek RTL8111G)

APU with integrated AMD Radeon HD 8000/7000 series graphics:
*To use the onboard graphics ports, you must install an AMD APU with integrated graphics.
1 x DisplayPort supports a maximum resolution of 2560 x 1600
1 x HDMI supports a maximum resolution of 4096 x 2160
Onboard LVDS supports a maximum resolution of 1920 x 1080 @ 24Hz
Maximum shared memory of 2 GB

Realtek ALC887 codec
Supports 2/4/5.1/7.1 channels

-

4 x SATA III 6Gb/s ports

AMD SATA RAID 0/1/10

1 x PCIe x4 (3.0 x4 bus)
1 x mSATA slot supports SATA 6Gb/s
1 x Half-size Mini-PCIe slot

1 x 2-pin 19V ATX power connector
1 x LVDS 18/24bit connector
1 x 80H connector
1 x 15-pin SATA power connector
4 x SATA III 6Gb/s ports
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (for 5 x USB 2.0 ports)
1 x Front audio header
1 x Digital MIC header
1 x Front panel header
1 x Speaker header
1 x Serial header
1 x Monitor switch header
1 x Backlight header
1 x FPD header
1 x FPD power jumper
1 x LCD voltage selection jumper
1 x Clear CMOS jumper

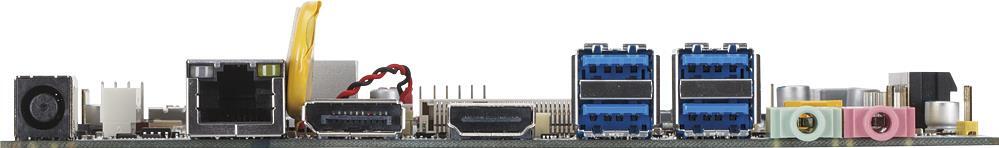

1 x DC-in
1 x RJ45
1 x DisplayPort v1.2
1 x HDMI v1.4
4 x USB 3.0
1 x Line-out
1 x MIC-in

-

Windows 8.1 (x64)
Windows 7 (x32/x64)

1 x 2-pin 19V ATX power connector

DC-in 19V / 12V

1 x M9M3XAI
1 x I/O shield
1 x SATA power cable

9M9M3XAINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
Spare parts:
- I/O shield: 12AIO-H77TN4-00R
- SATA power cable: 25CRI-710300-S8R
