MW31-SP0 (rev. 1.0)

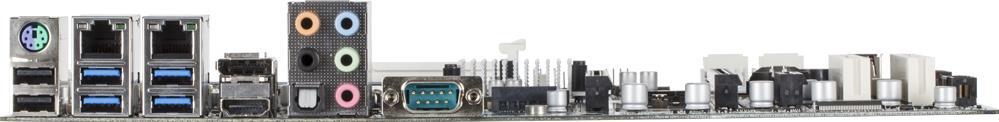

Intel^® C236 chipset

ATX form factor
Intel^® Xeon^® processors E3-1200 V6/V5 product family
Intel® C236
4 x UDIMM slots, DDR4 2400MHz
Supports 2-Way NVIDIA^® SLI™ / AMD^® CrossFireX™
2 x GbE LAN ports (Intel^® I210 + I219)
1 x M.2 slot M-key
8 x SATA III 6Gb/s

Request a Quote

비교

MW31-SP0 Intel Xeon E3-1200 V5 Workstation Motherboard

1/4

* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.

SPECIFICATIONS

Form Factor

ATX
305W x 244D (mm)

CPU

Intel^® Xeon^® processor E3-1200 V6/V5 product family
7^th/ 6^th Gen Intel^® Core™ i3 processors, Intel^® Celeron^® processors, Intel^® Pentium^® processors

Socket

1 x LGA 1151

Chipset

Intel^® C236

Memory

4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz

LAN

2 x GbE LAN ports (Intel^® I210 + I219LM)

Video

Integrated Graphics Processor-Intel^® HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2160@24 Hz or 3840x2160@60 Hz
* Support for DisplayPort 1.2 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.

Support for up to 2 displays at the same time
Maximum shared memory of 512 MB

Audio

Realtek^® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations

SAS

SATA

4 x SATA III 6Gb/s ports
4 x SATA III 6Gb/s ports (Marvell^® 9230 controller)

RAID

Intel^® SATA RAID 0/1/10/5
Marvell^® SATA RAID 0/1/10

Expansion Slots

2 x PCIe x16 (Gen3 x16 bus) connectors
1 x PCIe x4 (Gen3 x2 bus) connector
1 x PCIe x4 (Gen3 x4 bus) mezzanine card slot
2 x PCI connectors

Support NVIDIA^® SLI™ and AMD^® CrossFireX™ technologies (2-way)

1 x M.2 (Gen3 x4 bus) slot:
- Socket 3
- M-key
- Max. width: 22mm
- Max. length: 80mm

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
8 x SATA III 6Gb/s ports
1 x USB 2.0 vertical type A port
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
2 x USB 2.0 headers
1 x TPM header
1 x Serial header
1 x Front audio header
1 x S/PDIF-In header
1 x S/PDIF-Out header
1 x Front panel header
1 x HDD back plane board header
1 x SATA GPIO header
1 x JTAG header
1 x Chassis intrusion header
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x Force to stop FRB3 timer jumper
1 x CPLD jumper
1 x SMB selection jumper
1 x PMBus connector
2 x SATA DOM connectors

Rear I/O

4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x HDMI
1 x DisplayPort
1 x Serial
2 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out

TPM

1 x TPM header

OS Supported

Windows 10 (x64)
Windows 8.1 (x64)
Windows 7 Ultimate SP1 (x86)

Board Management

PSU Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MW31-SP0
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
1 x CrossFire™ bridge
1 x 2-SLI™ bridge
Box dimensions: 360 x 330 x 80 mm

Bulk Packaging Content

10 x MW31-SP0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Reference Numbers

Retail: 9MW31SP0MR-00
Bulk: 9MW31SP0NR-00
