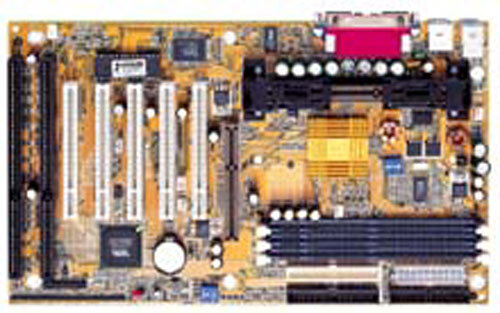

GA-6VXE+

제품 사양지원뉴스/수상 내역Where to Buy

제품 사양

  • CPU
    1. Slot 1 for Intel® Pentium II / III and Celeron Processors
    2. 66/75*/83*/100/112*/124*/133/140*/150* MHz System Bus
    3. Clock multipliers 3.0~9.5
    4. Auto Detect CPU Voltage
  • 칩셋
    1. VIA Apollo Pro family AGPset
    2. iTE 8671 I/Oset
  • 메모리
    1. 8MB to 768MB DRAM size
    2. 3 * 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • 확장 슬롯
    1. 1 * AGP Slot Supports 66/133MHz Speeds
    2. 5 * PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 2 * ISA Slot
  • I / O 컨트롤러
    1. 2 * Ultra DMA33/66 Bus Master IDE ports on board
    2. 1 * FDD, 2 * COM, 1 * LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 * USB ports on board
    4. IrDA TX / RX Header (optional)]
  • BIOS
    1. AWARD BIOS with Enhanced ACPI Features for PC98/Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. 2 Mbit Flash RAM
    3. IDE#1 ~ #4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX, 4 layer PCB (30.6cm * 18.0cm)
  • Driver
    1. VIA Ultra DMA33/66 Bus Master IDE Driver
    2. VIA AGP GART V*D & Power Management Controller Driver
    3. VIA Patch 95 Driver
    4. VIA Windows 98 IRQ Routing Driver
  • 기타 특징
    1. Includes Wake-On-LAN (WOL), Header
    2. Supports Internal / External Modem Ring on
    3. 3 Fan Power & Speed Detection Connectors Includes SB-LINK™ connector
    4. Poly fuse for keyboard overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by keyboard, PS/2 Mouse, LAN, RTC, Modem & Switch
    3. Power-off by Windows 98 Shut down & switch
    4. Stop CPU Fan during entering suspend mode
    5. 3 Level ACPI LED Support
  • CPU
    1. Slot 1 for Intel® Pentium II / III and Celeron Processors
    2. 66/75*/83*/100/112*/124*/133/140*/150* MHz System Bus
    3. Clock multipliers 3.0~9.5
    4. Auto Detect CPU Voltage
  • 칩셋
    1. VIA Apollo Pro family AGPset
    2. iTE 8671 I/Oset
  • 메모리
    1. 8MB to 768MB DRAM size
    2. 3 * 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • 확장 슬롯
    1. 1 * AGP Slot Supports 66/133MHz Speeds
    2. 5 * PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 2 * ISA Slot
  • I / O 컨트롤러
    1. 2 * Ultra DMA33/66 Bus Master IDE ports on board
    2. 1 * FDD, 2 * COM, 1 * LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 * USB ports on board
    4. IrDA TX / RX Header (optional)]
  • BIOS
    1. AWARD BIOS with Enhanced ACPI Features for PC98/Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. 2 Mbit Flash RAM
    3. IDE#1 ~ #4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX, 4 layer PCB (30.6cm * 18.0cm)
  • Driver
    1. VIA Ultra DMA33/66 Bus Master IDE Driver
    2. VIA AGP GART V*D & Power Management Controller Driver
    3. VIA Patch 95 Driver
    4. VIA Windows 98 IRQ Routing Driver
  • 기타 특징
    1. Includes Wake-On-LAN (WOL), Header
    2. Supports Internal / External Modem Ring on
    3. 3 Fan Power & Speed Detection Connectors Includes SB-LINK™ connector
    4. Poly fuse for keyboard overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by keyboard, PS/2 Mouse, LAN, RTC, Modem & Switch
    3. Power-off by Windows 98 Shut down & switch
    4. Stop CPU Fan during entering suspend mode
    5. 3 Level ACPI LED Support
