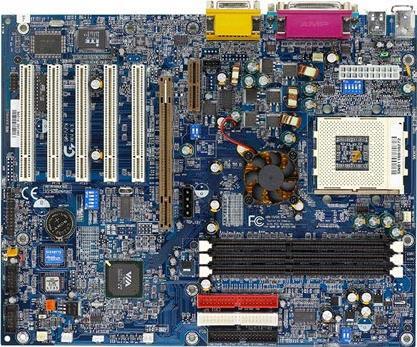

GA-7VTX (Rev. 1.0)

상세 정보지원뉴스/수상 내역Where to Buy

상세 정보

  • CPU
    1. Socket A for AMD Athlon ™ /Duron ™ 200/266 MHz FSB processors
    2. 95/100/.../133/.../166.6* MHz FSB
    3. Multiplier auto/5x/5.5x/6x/.../12.0x/12.5x
  • 칩셋
    1. VIA VT8366 System controller north bridge
    2. VIA VT8233 V-Link south bridge
    3. Creative CT-5880 sound chip & AC97 codec
  • 메모리
    1. Supports up to 3GB DDR SDRAM
    2. 3 DIMMs of 184-pin DDR sockets
    3. Supports either PC1600/DDR200 or PC2100/DDR266 DDR SDRAM
    4. Supports 72bits ECC type DRAM integrity mode
  • 확장 슬롯
    1. 1 x AGP Pro slot with an extra power-in socket
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x AMR (Audio Modem Riser) slot
  • I / O 컨트롤러
    1. 2 x UDMA ATA 66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB ports on board, 4 x USB ports by cable (cable optional)
    5. 1 x IrDA connector
  • H / W 모니터링
    1. 3 cooling fan connectors
    2. System health status detect & report by BIOS
    3. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. Dual AWARD BIOS, 2 x 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect & report system health status
    5. Gigabyte DualBIOS ™ and @BIOS ™
  • Form Factor
    1. ATX form factor, 4 layers PCB (24.40 * 30.50cm)
  • Driver
    1. VIA 4-in-1 service pack utility
    2. Creative PCI sound driver
    3. Hardware monitor utility
  • 기타 특징
    1. Suspend-To-RAM (STR)
    2. Supports Wake-On-LAN (WOL)
    3. Supports Internal / External Modem Ring On
    4. Supports USB KB/MS Wake up from S3
    5. Poly fuse for keyboard over-current protection
    6. Supports EasyTune III ™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/Me/2000/NT shut down & Switch
  • CPU
    1. Socket A for AMD Athlon ™ /Duron ™ 200/266 MHz FSB processors
    2. 95/100/.../133/.../166.6* MHz FSB
    3. Multiplier auto/5x/5.5x/6x/.../12.0x/12.5x
  • 칩셋
    1. VIA VT8366 System controller north bridge
    2. VIA VT8233 V-Link south bridge
    3. Creative CT-5880 sound chip & AC97 codec
  • 메모리
    1. Supports up to 3GB DDR SDRAM
    2. 3 DIMMs of 184-pin DDR sockets
    3. Supports either PC1600/DDR200 or PC2100/DDR266 DDR SDRAM
    4. Supports 72bits ECC type DRAM integrity mode
  • 확장 슬롯
    1. 1 x AGP Pro slot with an extra power-in socket
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x AMR (Audio Modem Riser) slot
  • I / O 컨트롤러
    1. 2 x UDMA ATA 66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB ports on board, 4 x USB ports by cable (cable optional)
    5. 1 x IrDA connector
  • H / W 모니터링
    1. 3 cooling fan connectors
    2. System health status detect & report by BIOS
    3. H/W detect & report Power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. Dual AWARD BIOS, 2 x 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect & report system health status
    5. Gigabyte DualBIOS ™ and @BIOS ™
  • Form Factor
    1. ATX form factor, 4 layers PCB (24.40 * 30.50cm)
  • Driver
    1. VIA 4-in-1 service pack utility
    2. Creative PCI sound driver
    3. Hardware monitor utility
  • 기타 특징
    1. Suspend-To-RAM (STR)
    2. Supports Wake-On-LAN (WOL)
    3. Supports Internal / External Modem Ring On
    4. Supports USB KB/MS Wake up from S3
    5. Poly fuse for keyboard over-current protection
    6. Supports EasyTune III ™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 95/98/Me/2000/NT shut down & Switch
