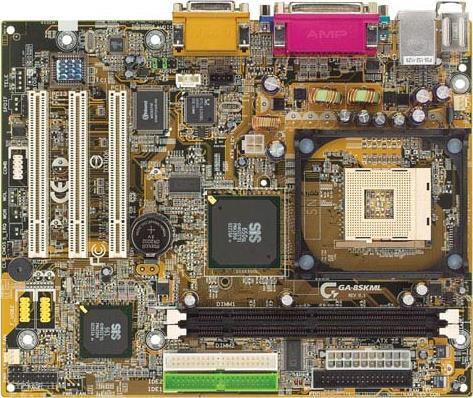

GA-8SKML-C (Rev. 1.x)

상세 정보지원뉴스/수상 내역Where to Buy

상세 정보

  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 400 MHz
  • 칩셋
    1. North bridge: SiS650GL IGUI Host Memory Controller
    2. South bridge: SiS961(B) MuTIOL® Media I/O
    3. Super I/O: Winbond 83697HF
  • 메모리
    1. Type: PC133 SDRAM by 168-pin DIMM slot
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • 확장 슬롯
    1. 3 x PCI slots (PCI 2.2 compliant)
  • 내부 I / O 커넥터
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB 1.1 connectors (4 ports by cable)
    3. 1 x FDD port
  • 후면 패널 커넥터
    1. 1 x VGA port
    2. 2 x USB 1.1 ports
    3. PS/2 Keyboard / Mouse
    4. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    5. 1 x COM port
    6. 1 x Game/Midi Port
  • H / W 모니터링
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for Case open and CPU and System fan speed
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • 번들 소프트웨어
    1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Form Factor
    1. Micro-ATX form factor, 4 layers PCB (24.4 x 19.5 cm)
  • CPU/AGP/DIMM 세팅
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
  • Driver
    1. SiS 650GL VGA driver
    2. REALTEK Sound Driver
  • 기타 특징
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 400 MHz
  • 칩셋
    1. North bridge: SiS650GL IGUI Host Memory Controller
    2. South bridge: SiS961(B) MuTIOL® Media I/O
    3. Super I/O: Winbond 83697HF
  • 메모리
    1. Type: PC133 SDRAM by 168-pin DIMM slot
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • 확장 슬롯
    1. 3 x PCI slots (PCI 2.2 compliant)
  • 내부 I / O 커넥터
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB 1.1 connectors (4 ports by cable)
    3. 1 x FDD port
  • 후면 패널 커넥터
    1. 1 x VGA port
    2. 2 x USB 1.1 ports
    3. PS/2 Keyboard / Mouse
    4. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    5. 1 x COM port
    6. 1 x Game/Midi Port
  • H / W 모니터링
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for Case open and CPU and System fan speed
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • 번들 소프트웨어
    1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Form Factor
    1. Micro-ATX form factor, 4 layers PCB (24.4 x 19.5 cm)
  • CPU/AGP/DIMM 세팅
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
  • Driver
    1. SiS 650GL VGA driver
    2. REALTEK Sound Driver
  • 기타 특징
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch

* HDMI, HDMI High-Definition Multimedia Interface(고화질멀티미디어인터페이스), HDMI 트레이드드레스및 HDMI 로고라는용어는 HDMI Licensing Administrator, Inc.의상표또는등록상표입니다.
* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
