• Supports Intel® Core™ i7 6950X Processor Extreme Edition
  • Support Intel(R) Turbo Boost Max Technology 3.0
  • Supports New Intel® Core™ i7 Processor Extreme Edition
  • Support for DDR4 XMP up to 3400MHz
  • World's 1st USB-IF Certified Intel® USB 3.1 Controller with USB Type-C™
  • Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage® ICs
  • 4-Way Graphics with Premium PCIe Lane
  • M.2 Technology for SSD Drive
  • Realtek ALC1150 115dB SNR HD Audio with built-in Rear Audio Amplifier
  • Independent Right and Left Audio Channel PCB Layers
  • High-end Nichicon Audio Capacitors
  • Audio Noise Guard with Multi-Color Choices of LED Trace Path Lighting
  • All Stainless Steel connectors on rear panel
  • SATA Express support for up to 10 Gb/s data transfer
  • GIGABYTE UEFI DualBIOS™
  • Long lifespan Durable Black™ Solid caps
  • APP Center including EasyTune™ and Cloud Station™ utilities
  • Safer Design Around Screw Mounting Holes
  • Support for DDR4 XMP up to 3400MHz
    DDR4 memory modules are available at a stock frequency of 2133MHz, but memory vendors encode XMP profiles which can automatically modify the frequency and timings of the supported memory modules to work in par with your CPU. With the X99 Series, GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 3400MHz.

    What is XMP?
    The synchronization of the memory modules with the CPU is crucial for good performance of your system. DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

    * XMP Profile support may vary depending on memory module. Please refer "Memory Support List" for more information.

    Support for DDR4 XMP up to 3400MHz
  • GIGABYTE Ultra Durable ™ Motherboards

    The GIGABYTE GA-X99P-SLI motherboard supports the latest Intel® Core™ i7 Extreme Edition processors and quad channel DDR4 memory. Designed to fulfill the needs of the high-end desktop segment, the X99P-SLI is the ultimate motherboard for users wanting long lasting quality, unrivaled performance, cutting edge features and great looks that complement any system build.

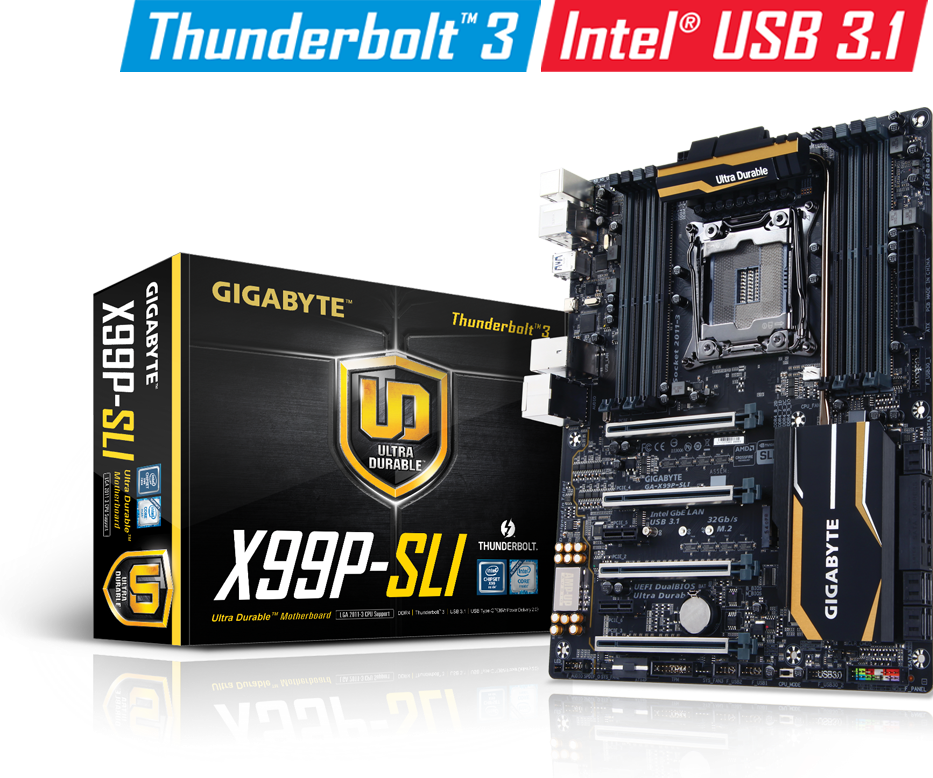

  • GIGABYTE X99P-SLI World's First Intel® Thunderbolt™ 3 Certified X99 Motherboard

    The GIGABYTE X99P-SLI motherboard is the world's first X99 motherboard to be certified to support Thunderbolt™ 3. This gives enthusiasts that need the tried-and-true horsepower and reliability of the X99 chipset access to the world’s fastest connectivity protocol. Powered by Intel’s own Thunderbolt 3 controller, the new Thunderbolt 3 protocol is available over a USB Type-C™ connector on the back I/O of select GIGABYTE motherboards including the X99P-SLI. Bringing an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation!


    Support for Thunderbolt™ 3 on the GIGABYTE GA-X99P-SLI motherboard opens up a world of possibilities for enthusiasts or professionals using the X99 chipset. With the unmatched bandwidth that Thunderbolt™ 3 provides, enthusiasts can use new devices such as discrete GPU boxes, external quad M.2 drives, or U.2 expansion drives.

    One of the main advantages of Thunderbolt™ 3 is its ability to carry a video signal, but as X99 platforms don’t have a GPU integrated in the CPU, the Thunderbolt controller needs to link with a discrete graphics card. In order to solve this conundrum, GIGABYTE designed the GA-X99P-SLI with a DisplayPort input on the back I/O allowing users to pair their system to a monitor with a Type-C connector (the required cables to connect the graphics card to Thunderbolt controller are bundled with the board).


    The packing includes Two cables for building Thunderbolt™ 3 function:
    * DisplayPort to mini-DisplayPort
    * DisplayPort to DisplayPort





    Daisy-chain Multiple Devices
    With a single wire, users can now daisy-chain up to 6 devices via Thunderbolt 3, including a monitor with all the GPU power from the discrete graphics card to display high frame rate games at max settings or render 3D models in a flash.
    Compatibility may vary according to system configuration and device specifications.
  • Intel® USB 3.1 컨트롤러는 PCIe Gen3 x4 레인을 채택, 최대 32Gb/s 전송 주파수를 USB 3.1에 공급하여, 10Gb/s 전송 주파수를 공급하는 다른 USB 3.1에 비해 Intel® USB 3.1 콘트롤러는 성능면에서 우월한 강점을 갖고 있다. 기존의 USB와 비교해보면, USB 3.1은 2배의 전송 주파수를 제공할 뿐만 아니라 USB 2.0 및 USB 3.0과도 양방향 호환된다. 특히 USB 3.1은 무방향성의 최신 기술을 보유한 USB Type-C™ 포트와 보통의 Standard-A 커넥터와 호환되어 외장형 장치를 훨씬 간편하게 사용하여 응용 범위가 광범위하다는 점을 주목해야 한다.
    Intel USB 3.1
  • 무한한 미래와 연결 - USB Type-C™:
    전세계의 차세대 커넥터
    USB 3.1의 무방향성을 채택한 USB Type-C™
    USB Type-C™는 USB 3.1의 무방향성 외장형장치 커넥터 기술로서, 실용적인 기능을 다수 통합했다. 예컨대 USB 3.1의 최대 10 Gb/s의 전송 속도와 주파수를 지원할 수 있다. 또한 GIGABYTE의 USB Type-C™ 는 DisplayPort 1.2를 지원하여 네이티브 4K HD 화면을 지원할 수 있다.

    * 디스플레이 성능은 제품 모델에 따라 다를 수 있습니다.


    USB Type-C

  • Fast Onboard Storage with 32Gb/s M.2
    GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.



    * Theoretical Bandwidth, M.2 Bandwidth may vary by CPU model.


  • 업계를 선도하는 울트라 듀러블™ 스테인레스로 감싼 PCIe 슬롯
    GIGABYTE가 고안한 스테인레스로 감싼 PCIe 슬롯은 PCIe 슬롯의 강도를 효율적으로 제고했다. 이로써 사용자들이 큰 사이즈의 그래픽카드를 잘못 설치하거나 그래픽카드가 무거워 PCIe 슬롯이 손상되는 것을 막을 수 있다.


    Ultra Durable™ PCIe Metal Shielding

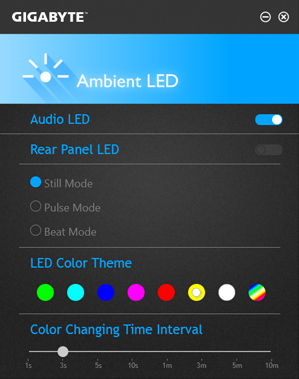

  • LED Trace Path with Multi-Color Choices
    Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the LED trace path lighting. A total of 7 colors are available to make your system appearance unique!
  • Performance
  • Genuine All Digital Power Design
    GIGABYTE X99 series motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel® Core™ i7 Extreme Edition CPUs.

    IR Digital PWM & IR PowIRstage® ICs
    This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.
  • Single Package Design
    IR® has leveraged it's world class packaging technology developed for the DirectFET®, improving the thermal capability and layout of the PowIRstage® significantly over that of other MCM packages.


    Single Package Design* VS. Multi-Chip Design
    Other MOSFET layout implementations use a multi-chip, side-by-side arrangement of the high and low side MOSFETs and driver ICs, taking up significant board real estate and creating more electrical leakage.

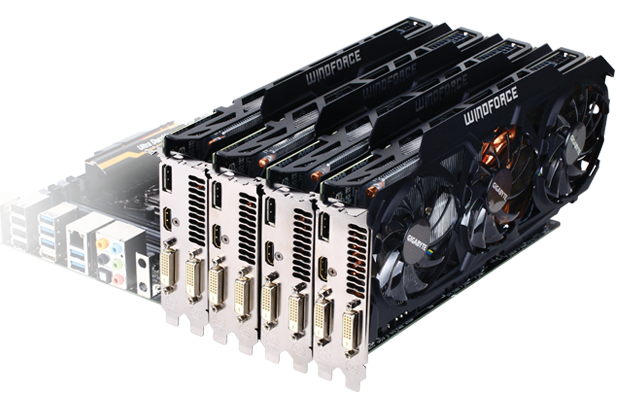

  • 4-Way SLI™/4-Way CrossFire™ Multi-Graphics
    Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.



  • Next Generation SATA Express Connector
    GIGABYTE X99 series motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.

  • The above photos are for reference only.
    HD 오디오
    ALC1150는 고성능 멀티 채널의 HD 오디오칩으로서 최대 115db SNR 오디오를 지원하여 최적의 PC 오디오 품질과 서라운드 오디오를 체험할 수 있게 해준다.

    최고 품질의 전문 오디오 커패시터는 최고 품질의 선명한 오디오 및 오디오 앰프 기능을 제공하여 매우 사실적인 오디오를 감상할 수 있게 해준다.


    High Definition Audio Design
  • Independent Right and Left Audio Channel PCB Layers
    Locating the right and left audio channels on separate PCB layers, GIGABYTE X99 series motherboards are able to eliminate channel crosstalk and maintain the best audio quality.
  • Intel® GbE LAN with cFosSpeed
    Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environments.
  • Durable
  • Server Level Chokes
    GIGABYTE X99 series motherboards feature Server Level Chokes.
    • Server level reliability.
    • High current capacity.
    • New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.
  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE X99 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. With ultra-low ESR no matter how high the CPU loading, these exclusive capacitors also come in customized jet black, exclusively on GIGABYTE X99 series motherboards.

  • Gold Plated CPU Socket
    GIGABYTE X99 motherboards come equipped with gold plating for the CPU socket, 4 PCIe slots and over the 8 DIMM slots, which means that enthusiasts can enjoy better connectivity, absolute reliability and longevity for the diverse connectors overtime, without having any concerns about corroded pins and bad contacts.
  • 2x Copper PCB Design(2 oz Copper PCB)
    GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


  • Safe
  • GIGABYTE Patented DualBIOS™
    GIGABYTE DualBIOS™ means that you motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
  • Safer Design Around Screw Mounting Holes
    Don't worry anymore about accidental damage while mounting your motherboard to you chassis. GIGABYTE X99 motherboards all feature a wider copper ground pad and onboard components free area around the PCB screw mounting holes. This exclusive design reduces the chances of damaging any surrounding onboard components during the PC assembly process. Bigger copper ground pads also provide the added benefit of lower EMI disturbance for reduced noise interference across your system.

    * The above photos are for reference only.
  • Intel® Core™ i7 Extreme Edition CPUs(Haswell-E)
    Intel® Core™ i7 Extreme Edition Processors are Intel’s first 8 core desktop CPUs and is the first to support DDR4 memory. These next generation 22nm CPUs delivers greater performance and energy efficiency as well as the industry's highest level of discrete graphics performance by sporting 40 PCIe Gen.3 lanes, which GIGABYTE X99 motherboards are able to take full advantage of, delivering bandwidth totaling 320 Gb/s for the most demanding gamers or graphics intensive creation tasks such as video editing. On top of that, Intel® Core™ i7 Extreme Edition CPUs deliver 8 core (16 threaded) multitask processing, higher frequencies, as well as larger cache size.
    Additionally, GIGABYTE X99 users can draw even more performance out of their Extreme Edition CPUs, as they are fully unlocked for overclocking. With enhanced overclocking oriented options available on all GIGABYTE X99 series motherboards, users will be able to take full advantage of all the performance potential of Intel Extreme Edition CPUs.
    *CPU core count and PCIe bandwidth varies by CPU model.
  • 4 Channel DDR4

    The next generation of DRAM is here with DDR4. Featuring stock frequencies starting at 2133 MHz, DDR4 delivers up to 20% less energy consumption and twice as much density as the previous generation DDR3. DDR4 can help GIGABYTE X99 users to load their programs faster, increase responsiveness of their system and help them to handle heavy data tasks in a flash. GIGABYTE X99 motherboards provide 4 Channel DDR4 memory support across the entire range, bringing exceptionally fast memory access.
  • Intel® GIGABYTE App Center Including EasyTune™ and Cloud Station™ Utilities
    GIGABYTE APP Center
    The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

    Customized the APP Center's look and behavior according to your taste in the Preferences Menu.
  • EasyTune™
    GIGABYTE EasyTune™ is a simple and easy-to-use Windows-based software application that allows users to fine-tune their system settings.
    • Adjust system and memory clocks and voltages in a Windows environment.
    • System-related information display without the need to install additional software.

    Overclocking Boost Your Frame Rates
    Get the most from your PC with easy to use GIGABYTE overclocking features.


    Smart Quick Boost
    Smart Quick Boost provides users with different levels of CPU frequency to choose to achieve desired system performance.
    Advanced CPU OC
    Advanced CPU OC allows users to set the CPU’s base clock, frequency and voltages, and integrated graphics frequency.


    Advanced DDR OC
    Advanced DDR OC allows users to set the memory clock with XMP profile support.
    3D Power
    3D Power allows users to change power phase, voltage, and frequency settings.

  • Cloud Station™ Server
    GIGABYTE Cloud Station™ Server is composed of several GIGABYTE's unique apps that allow your smart phone/tablet/PC devices to communicate, share resources, and control desktop PCs via wireless connection.

    HomeCloud
    HomeCloud allows users to share the files between your smart phone/tablet device and computer or back up the files from the device to the computer.
    HotSpot
    HotSpot turns your computer into a virtual wireless access point and allows you to share your connection with your other wireless devices.
    GIGABYTE Remote
    GIGABYTE Remote allows users to remotely control the mouse/keyboard/Windows Media Player on your computer from your smart phone/tablet device.


    Remote OC
    Remote OC allows users to remotely control their desktop PC with a powerful suite of software functions that Include overclocking and system tweaking, system monitoring plus the ability to also remotely power down/reset the PC when needed.
    Auto Green
    Auto Green is an easy-to-use tool that provides users with simple options to enable system power savings via a Bluetooth-enabled smart phone/tablet device. When the device is out of the range of the computer's Bluetooth receiver, the system will enter the specified power saving mode.
