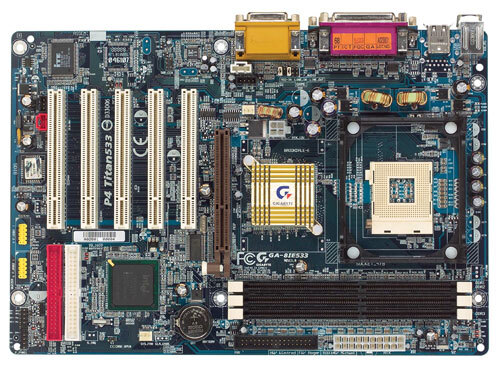

GA-8IE533 (Rev. 2.0)

СпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Socket 478 for Intel® Pentium® 4 processor
    2. 533/400 MHz FSB
  • Чипсет
    1. Intel® 845E
    2. Intel® 82801DB ICH4
    3. Realtek ALC650 PCI sound controller chip
    4. Super I/O: ITE8702 chip
    5. 1 x 2M bit flash ROM
  • Подсистема памяти
    1. Type: DDR266 (PC 2100) / DDR200(PC1600) 184 pin (2.5v)
    2. Max capacity: Up to 2 GB by 3 DIMM slots
  • Разъёмы для плат расширения
    1. 1 x AGP 4X, supports 1.5V display card only
    2. 5 x PCI (PCI 2.2 compliant)
  • Разъемы на системной плате
    1. 1 x FDD
    2. 2 x UDMA ATA 100/66 Bus Master IDE
    3. 2 x USB 2.0 (4 ports by cable with rear USB bracket)
    4. 3 x cooling fan pin headers
    5. CD/AUX in
  • Разъемы на задней панели
    1. 2 x USB 2.0 ports
    2. 1 x LPT, 2 x COM ports
    3. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
    4. PS/2 Keyboard/Mouse connector
    5. 1 x Game / Midi port
  • ПО в комплекте поставки
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
    4. IAA (Intel® Application Accelerator)
  • Форм-фактор
    1. ATX (29.5cm x 20.1cm)
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier/ Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Driver
    1. AC97 sound driver
  • Other Features
    1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
    5. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
  • Процессор
    1. Socket 478 for Intel® Pentium® 4 processor
    2. 533/400 MHz FSB
  • Чипсет
    1. Intel® 845E
    2. Intel® 82801DB ICH4
    3. Realtek ALC650 PCI sound controller chip
    4. Super I/O: ITE8702 chip
    5. 1 x 2M bit flash ROM
  • Подсистема памяти
    1. Type: DDR266 (PC 2100) / DDR200(PC1600) 184 pin (2.5v)
    2. Max capacity: Up to 2 GB by 3 DIMM slots
  • Разъёмы для плат расширения
    1. 1 x AGP 4X, supports 1.5V display card only
    2. 5 x PCI (PCI 2.2 compliant)
  • Разъемы на системной плате
    1. 1 x FDD
    2. 2 x UDMA ATA 100/66 Bus Master IDE
    3. 2 x USB 2.0 (4 ports by cable with rear USB bracket)
    4. 3 x cooling fan pin headers
    5. CD/AUX in
  • Разъемы на задней панели
    1. 2 x USB 2.0 ports
    2. 1 x LPT, 2 x COM ports
    3. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
    4. PS/2 Keyboard/Mouse connector
    5. 1 x Game / Midi port
  • ПО в комплекте поставки
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
    4. IAA (Intel® Application Accelerator)
  • Форм-фактор
    1. ATX (29.5cm x 20.1cm)
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier/ Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Driver
    1. AC97 sound driver
  • Other Features
    1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
    5. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch

* Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
