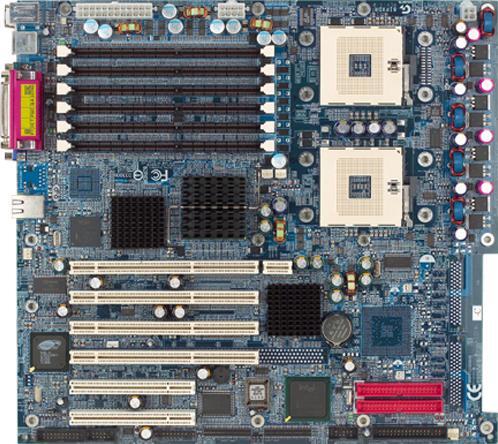

GA-8IPXDR-CLegacy | Software updates supported
- Intel® E7500 (Plumas), ICH3-S, Dual P64H2, ATI® Rage XL 8MB
- Dual Intel® Xeon™ Processors with 512KB L2 Cache(Socket 603/400MHz FSB/2.4GHz+)
- Max. 12 GB Registered (ECC) DDR-266 Memory in 6 DIMM Slots(Dual Channels, 3.2GB/s)
- 4 PCI-X Slots with 133, 100, 66MHz Support (3.3V), 2 PCI 32-Bit/33MHz
- Dual ATA-100 IDE Channels
- Single Intel® 82544GC LAN controller
- EATX 12”W x 13”D, SSI 3.0 Power (24-Pin, 8-Pin, 4-Pin 12V. Auxiliary), VRM 9.1
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Dual Intel® Xeon Prestonia CPUs up to 2.4 GHz
- 400 Mhz FSB
Chipset
- Intel® E7500 MCH (Memory Controller Hub)
- Intel® ICH 3
- P64H2*2 (PCI-X)
LAN
- Single Intel® 82544GC Gigabit Controller
- Wake On LAN (WOL)
Video
- ATI Rage-XL on board with 8MB memory
IDE / SCSI
- Dual ATA-100 IDE Channels
Expansion Slots
- 4 x PCI-X 133, 100, 66MHz
- 2 x PCI 32/33 Mhz
Rear I/O
- 2 x PS/2(Keyboard and Mouse Connectors)
- 4 x USB (2x at Rear, 2x By.Cable)
- 2 x COM (1xRear, 1x By.Cable)
- 1 x LPT
