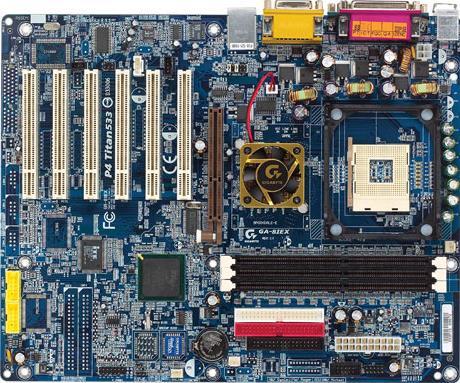

GA-8IEX (Rev. 2.0)

Rev. 2.0Rev. 1.2
SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
    2. 533/400 MHz FSB
  • Chipset
    1. Intel® 845E
    2. Intel® 82801DB ICH4
    3. Intel® PRO/100 VE LAN chip
    4. Realtek ALC650 AC'97 codec
    5. Super I/O: ITE8712F chip
    6. 2 x 3M bit flash ROM
  • Memory
    1. Type: DDR266 (PC 2100) / DDR200(PC1600) 184 pin (2.5v)
    2. Max capacity: Up to 2 GB by 3 DIMM slots
  • Expansion Slots
    1. 1 x AGP 4X, supports 1.5V display card only
    2. 6 x PCI (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 1 x FDD
    2. 2 x UDMA ATA 100/66 Bus Master IDE
    3. 2 x USB 2.0 (4 ports by cable with rear USB bracket)
    4. 3 x cooling fan pin headers
    5. CD/AUX in
    6. S/P DIF out
  • Back Panel Connectors
    1. 2 x USB 2.0 ports
    2. 1 x RJ45 LAN port
    3. 1 x LPT, 2 x COM ports
    4. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
    5. PS/2 Keyboard/Mouse connector
    6. 1 x Game / Midi port
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. H / W detect and report power-in voltage, CPU voltage, and fan speed
  • Bundled Software
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
    4. IAA (Intel® Application Accelerator)
  • Form Factor
    1. ATX (30.5cm x 20.4cm)
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Other Features
    1. GIGABYTE patented DualBIOS™
    2. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    3. Suspend to RAM (STR)
    4. Supports USB KB / MS wake up from S3
    5. Poly fuse for keyboard over-current protection
    6. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
    2. 533/400 MHz FSB
  • Chipset
    1. Intel® 845E
    2. Intel® 82801DB ICH4
    3. Intel® PRO/100 VE LAN chip
    4. Realtek ALC650 AC'97 codec
    5. Super I/O: ITE8712F chip
    6. 2 x 3M bit flash ROM
  • Memory
    1. Type: DDR266 (PC 2100) / DDR200(PC1600) 184 pin (2.5v)
    2. Max capacity: Up to 2 GB by 3 DIMM slots
  • Expansion Slots
    1. 1 x AGP 4X, supports 1.5V display card only
    2. 6 x PCI (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 1 x FDD
    2. 2 x UDMA ATA 100/66 Bus Master IDE
    3. 2 x USB 2.0 (4 ports by cable with rear USB bracket)
    4. 3 x cooling fan pin headers
    5. CD/AUX in
    6. S/P DIF out
  • Back Panel Connectors
    1. 2 x USB 2.0 ports
    2. 1 x RJ45 LAN port
    3. 1 x LPT, 2 x COM ports
    4. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
    5. PS/2 Keyboard/Mouse connector
    6. 1 x Game / Midi port
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. H / W detect and report power-in voltage, CPU voltage, and fan speed
  • Bundled Software
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
    4. IAA (Intel® Application Accelerator)
  • Form Factor
    1. ATX (30.5cm x 20.4cm)
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Other Features
    1. GIGABYTE patented DualBIOS™
    2. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    3. Suspend to RAM (STR)
    4. Supports USB KB / MS wake up from S3
    5. Poly fuse for keyboard over-current protection
    6. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
