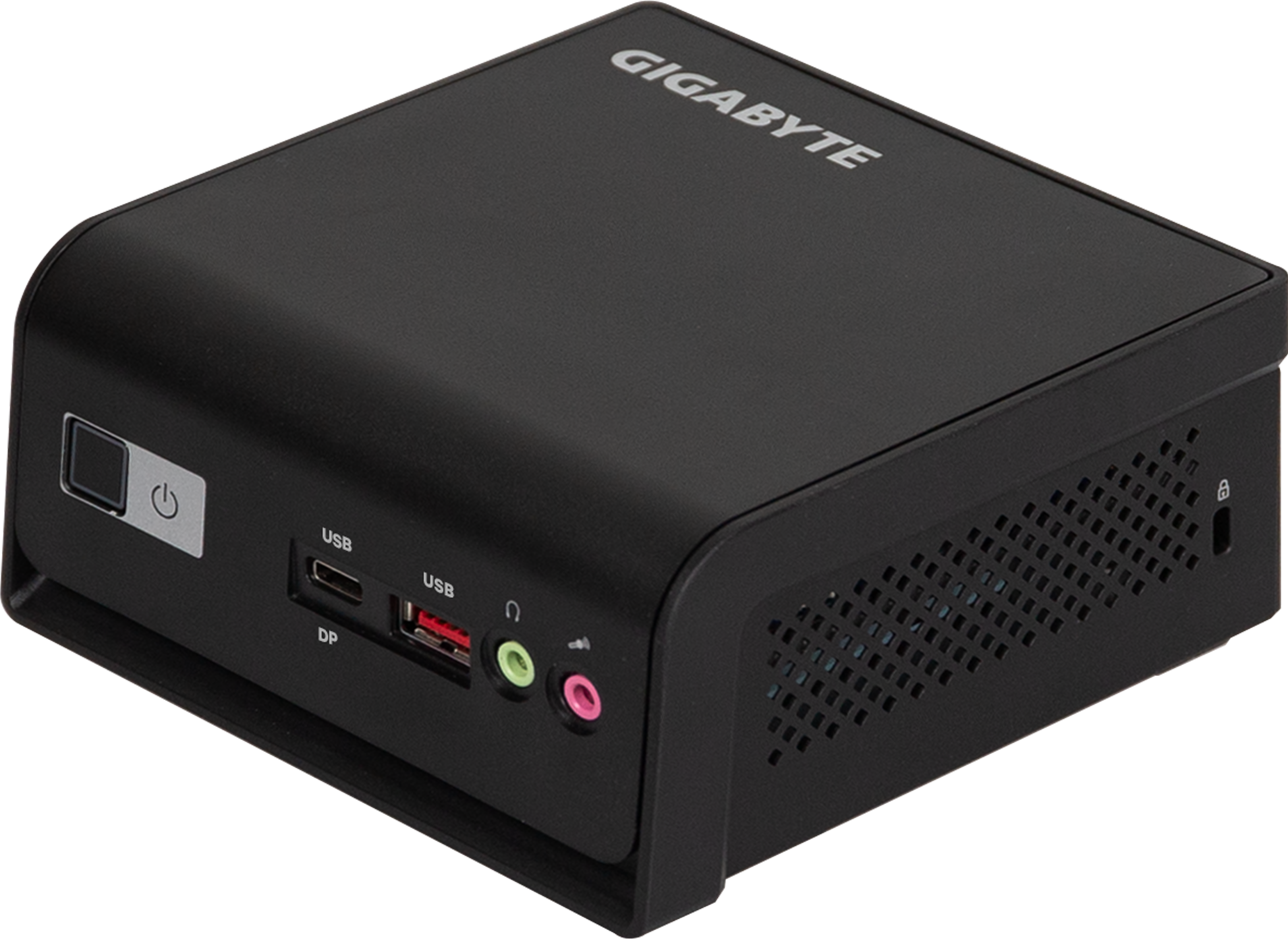

GB-BTIP-N150

BRIXs / Ultra Compact PC kit
Características principalesEspecificaciónSoporte y Descargas

Especificación

  • Dimension
  • 113 mm x 116.52 mm x 56.22 mm
  • Motherboard Size
  • 108 mm x 103 mm
  • CPU
  • Intel® Processor N150
    4C, up to 3.6 GHz, 6W
  • Memory
  • 1 x SO-DIMM DDR5 slot, support up to 4800MHz
    Max. 16GB
  • LAN
  • GbE LAN (Realtek® RTL8111H)
  • Wifi Card
  • AW-CB515NF
    Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0
  • Graphics
  • Intel® Graphics 24EUs
    1 x HDMI v2.0, 4096x2160@60Hz
    1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
    1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
  • Audio
  • Realtek® ALC897
  • Storage
  • 1 x 2.5" slot for SATA HDD/SSD
  • Expansion Slots
  • 1 x M.2 M Key 2280 slot (PCIe Gen 3x2)
    1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)
  • Front I/O
  • 1 x Power button
    1 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB)
    1 x Headphone
    1 x Microphone
  • Rear I/O
  • 1 x HDMI
    1 x RJ45
    2 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB)
    1 x Wire Clamp Screw Hole
  • Left I/O
  • 1 x DC-In
  • Right I/O
  • 1 x Kensington lock slot
  • Power Supply
  • Input: AC 100-240V
    Output: DC 19V / 3.42A, 65W
  • VESA
  • VESA support
    Supports 75 x 75 and 100 x 100 mm
  • Support OS
  • Windows 11 64bits
    Fedora 40
    Ubuntu 24.04.2 LTS
    Ubuntu 24.04.3 LTS
    Ubuntu 24.10
    Ubuntu 25.04
  • Environment
  • System Environment Operating Temperature: 0°C to +35°C
    System Storage Temperature: -20°C to +60°C
  • Dimension
  • 113 mm x 116.52 mm x 56.22 mm
  • Motherboard Size
  • 108 mm x 103 mm
  • CPU
  • Intel® Processor N150
    4C, up to 3.6 GHz, 6W
  • Memory
  • 1 x SO-DIMM DDR5 slot, support up to 4800MHz
    Max. 16GB
  • LAN
  • GbE LAN (Realtek® RTL8111H)
  • Wifi Card
  • AW-CB515NF
    Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0
  • Graphics
  • Intel® Graphics 24EUs
    1 x HDMI v2.0, 4096x2160@60Hz
    1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
    1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
  • Audio
  • Realtek® ALC897
  • Storage
  • 1 x 2.5" slot for SATA HDD/SSD
  • Expansion Slots
  • 1 x M.2 M Key 2280 slot (PCIe Gen 3x2)
    1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)
  • Front I/O
  • 1 x Power button
    1 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB)
    1 x Headphone
    1 x Microphone
  • Rear I/O
  • 1 x HDMI
    1 x RJ45
    2 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB)
    1 x Wire Clamp Screw Hole
  • Left I/O
  • 1 x DC-In
  • Right I/O
  • 1 x Kensington lock slot
  • Power Supply
  • Input: AC 100-240V
    Output: DC 19V / 3.42A, 65W
  • VESA
  • VESA support
    Supports 75 x 75 and 100 x 100 mm
  • Support OS
  • Windows 11 64bits
    Fedora 40
    Ubuntu 24.04.2 LTS
    Ubuntu 24.04.3 LTS
    Ubuntu 24.10
    Ubuntu 25.04
  • Environment
  • System Environment Operating Temperature: 0°C to +35°C
    System Storage Temperature: -20°C to +60°C
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
