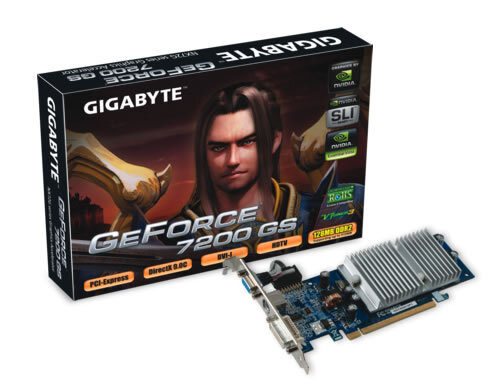

• Powered by GeForce 7200 GS GPU
  • Supports PCI Express
  • Microsoft DirectX 9.0c and OpenGL 2.0 support
  • Integrated 256MB GDDR2 64-bit memory interface and support NVIDIA® TurboCache™ Technology
  • Supports PureVideo technology
  • Features DVI-I / D-sub / HDTV
  • RoHS Compliant
    As a citizen of the global village, GIGABYTE exert ourselves to be a pioneer in environment care. Give the whole of Earth a promise that our products do not contain any of the restricted substances in concentrations and applications banned by the RoHS Directive, and are capable of being worked on at the higher temperatures required for lead free solder. One Earth and GIGABYTE Cares!
  • TurboCache™ Technology
    By allowing the graphics processing unit (GPU) to share the capacity and bandwidth of dedicated video memory and dynamically available system memory, TurboCache turbocharges performance and provides larger total graphics memory.
    Key features of the TurboCache architecture:
    * Patented hardware and software technologies that render directly to system memory.
    * A TurboCache Manager (TCM), which dynamically allocates memory for maximum system performance.
    * Intelligent software algorithms that maximize application performance.
    * Bidirectional PCI Express® bandwidth, in conjunction with TurboCache architecture, which improves graphics price/performance.
  • PureVideo™
    PureVideo™ technology ensures support for new video formats, while its motion estimation engine (MEE) allows the card to record and play video files simultaneously without interrupting system performance. An added value PureVideo™ provides is its high-definition MPEG-2 and WMV HD hardware accelerator that take on much of the heavy lifting during playback of Hi-Def video. Other video playback enhancements include a unique color correction mechanism that will help to create a home theater from a PC.
  • OpenGL 2.0® Optimizations and Support
    Ensure top-notch compatibility and performance for all OpenGL 2.0 application.
  • PCI Express
    Designed to run perfectly with the next-generation PCI Express bus architecture. This new bus doubles the bandwidth of AGP 8X delivering over 4 GB/sec. in both upstream and downstream data transfers.
  • GIGABYTE V-tuner3
    GIGABYTE's monitoring and overclocking tool V-tuner 3 enables users to dynamically optimize the memory and GPU frequencies; moreover, demonstrates real-time temperature for models integrated with hardware thermal sensor chip.

    What's new with V-tuner3:
    *Auto detect most suitable OC Clock
    *Resume back to original CLK(BIOS Clock) while abnormal shut down
    *Use GPU internal Diode to get temp information, no more H/W monitor chip
    *Show 2D/3D CLK at the same time and tuning separately
    *Save CLK to enable OC every booting
  • Display Support
    *Dual integrated 400MHz RAMDACs for analog display resolutions up to and including 2048x1536 at 75Hz.
    *Dual-link DVI capability to drive the industry's largest and highest resolution digital flat panel displays up to 2560x1600 at 60 Hz.
    *Integrated HDTV encoder provides analog TV-output (Component/Composite/S-Video) up to 1080i resolution....more information

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
