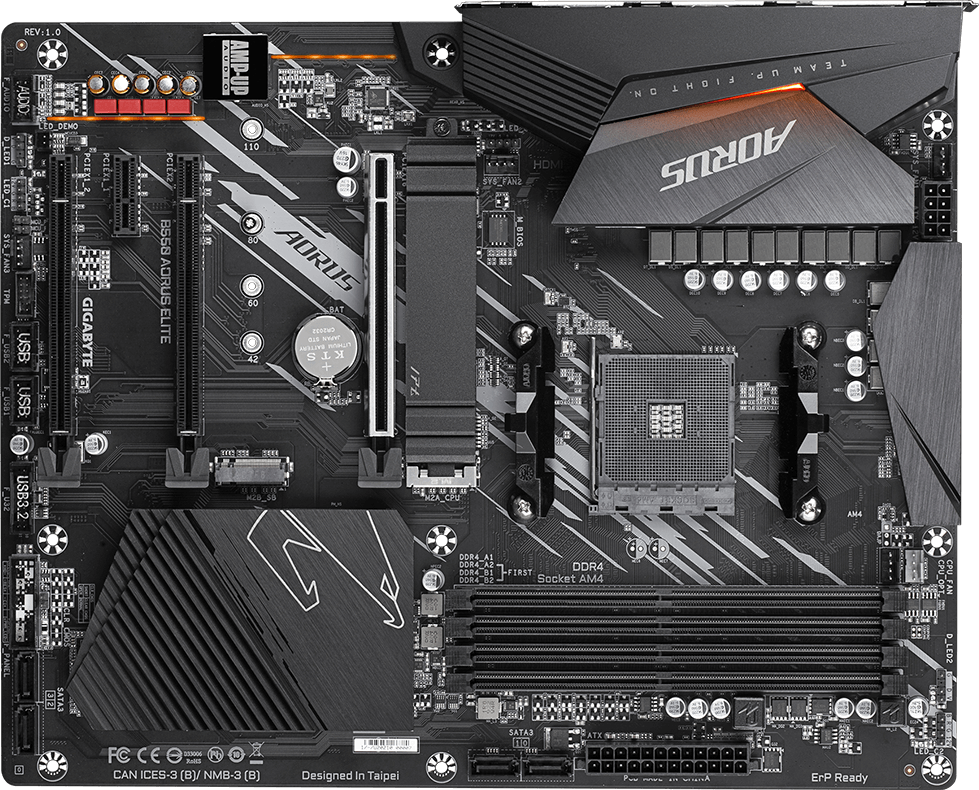

B550 AORUS ELITE (Rev. 1.0)

AMD B550 chipset
امکانات کلیدیمشخصاتپشتیبانیخبرها / جوایزWhere to Buy

مشخصات

  • پردازنده
    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
    (Please refer "CPU Support List" for more information.)
  • چیپ ست
    1. AMD B550
  • حافظه
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
      * ECC memory (ECC mode) support varies by CPU
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • گرافیک آنبرد
  • Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • صوتی
    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • شبکه
    1. Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • سوکت های اضافه
    1. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
      - AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
      * Actual support may vary by AMD CPU's specification.
      - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
      - Supporting PCIe 3.0 x2 mode
    3. 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
      - Supporting PCIe 3.0 x1 mode
    4. 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
      - Supporting PCIe 3.0 x1 mode
  • رابط ذخیره سازی
    1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
      - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
      - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
    2. 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
      - Supporting SATA and PCIe 3.0 x4/x2 SSDs
    3. 4 x SATA 6Gb/s connectors, integrated in the Chipset:
      - Support for RAID 0, RAID 1, and RAID 10
  • USB
  • CPU:
    1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 2 x USB 3.2 Gen 1 ports on the back panel
    2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    3. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • رابط های ورودی/خروجی داخلی
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 4 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x water cooling CPU fan header
    7. 3 x system fan headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x addressable LED strip headers
    10. 2 x RGB LED strip headers
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB 3.2 Gen 1 header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    16. 1 x Clear CMOS jumper
    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • رابط های پنل پشتی
    1. 1 x DisplayPort
    2. 1 x HDMI port
    3. 2 x USB 3.2 Gen 2 Type-A ports (red)
    4. 4 x USB 3.2 Gen 1 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x Q-Flash Plus button
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks
  • کنترلر ورودی/خروجی
    1. iTE® I/O Controller Chip
  • نظارت بر روی سخت افزار
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • بایوس
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • ویژگی های خاص
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • بسته نرم افزار
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8125 Gaming LAN Bandwidth Control Utility
  • سیستم عامل
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • فاکتور فرم
    1. ATX Form Factor; 30.5cm x 24.4cm
  • تذکر
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • پردازنده
      1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
      (Please refer "CPU Support List" for more information.)
    • چیپ ست
      1. AMD B550
    • حافظه
      1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
      3. Dual channel memory architecture
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
        * ECC memory (ECC mode) support varies by CPU
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • گرافیک آنبرد
    • Integrated Graphics Processor:
      1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
        * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
      Maximum shared memory of 16 GB
    • صوتی
      1. Realtek® ALC1200 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • شبکه
      1. Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    • سوکت های اضافه
      1. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
        - AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
        * Actual support may vary by AMD CPU's specification.
        - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
        - Supporting PCIe 3.0 x2 mode
      3. 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
        - Supporting PCIe 3.0 x1 mode
      4. 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
        - Supporting PCIe 3.0 x1 mode
    • رابط ذخیره سازی
      1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
        - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
        - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
      2. 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
        - Supporting SATA and PCIe 3.0 x4/x2 SSDs
      3. 4 x SATA 6Gb/s connectors, integrated in the Chipset:
        - Support for RAID 0, RAID 1, and RAID 10
    • USB
    • CPU:
      1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
      2. 2 x USB 3.2 Gen 1 ports on the back panel
      Chipset:
      1. 2 x USB 3.2 Gen 1 ports on the back panel
      2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
      3. 2 x USB 2.0/1.1 ports on the back panel
      Chipset+USB 2.0 Hub:
      1. 4 x USB 2.0/1.1 ports available through the internal USB headers
    • رابط های ورودی/خروجی داخلی
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 2 x M.2 Socket 3 connectors
      4. 4 x SATA 6Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x water cooling CPU fan header
      7. 3 x system fan headers
      8. 1 x CPU cooler LED strip/RGB LED strip header
      9. 2 x addressable LED strip headers
      10. 2 x RGB LED strip headers
      11. 1 x front panel header
      12. 1 x front panel audio header
      13. 1 x USB 3.2 Gen 1 header
      14. 2 x USB 2.0/1.1 headers
      15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      16. 1 x Clear CMOS jumper
      ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
    • رابط های پنل پشتی
      1. 1 x DisplayPort
      2. 1 x HDMI port
      3. 2 x USB 3.2 Gen 2 Type-A ports (red)
      4. 4 x USB 3.2 Gen 1 ports
      5. 2 x USB 2.0/1.1 ports
      6. 1 x Q-Flash Plus button
      7. 1 x RJ-45 port
      8. 1 x optical S/PDIF Out connector
      9. 5 x audio jacks
    • کنترلر ورودی/خروجی
      1. iTE® I/O Controller Chip
    • نظارت بر روی سخت افزار
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Overheating warning
      6. Fan fail warning
      7. Fan speed control
        * Whether the fan speed control function is supported will depend on the fan you install.
    • بایوس
      1. 1 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • ویژگی های خاص
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        EasyTune
        Fast Boot
        Game Boost
        ON/OFF Charge
        RGB Fusion
        Smart Backup
        System Information Viewer
      2. Support for Q-Flash Plus
      3. Support for Q-Flash
      4. Support for Xpress Install
    • بسته نرم افزار
      1. Norton® Internet Security (OEM version)
      2. Realtek® 8125 Gaming LAN Bandwidth Control Utility
    • سیستم عامل
      1. Support for Windows 11 64-bit
      2. Support for Windows 10 64-bit
    • فاکتور فرم
      1. ATX Form Factor; 30.5cm x 24.4cm
    • تذکر
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
      * کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
      * کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
      * با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
