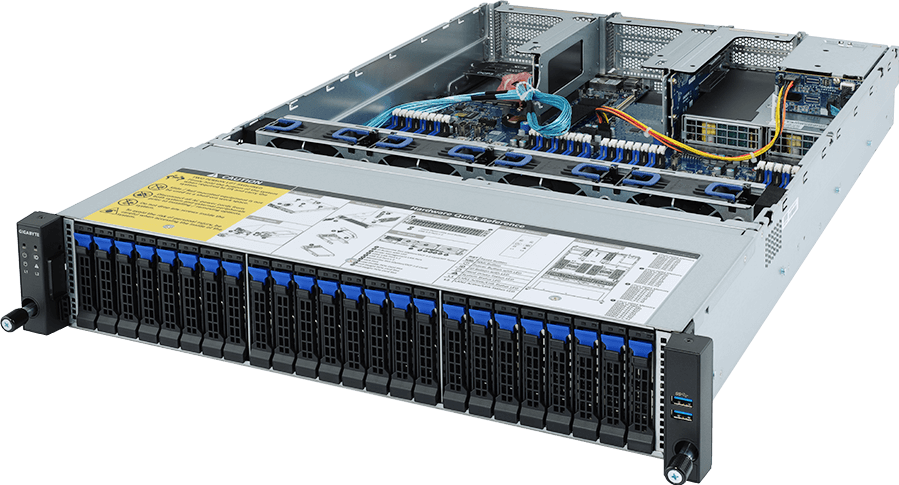

Rack Server - AMD EPYC™ 7003/7002 - 2U DP 24+2-Bay SATA/SAS
- Dual AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- Onboard 12Gb/s SAS expander
- 24 x 2.5" SATA/SAS hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 6 x FHHL PCIe Gen4 x16 and x8 slots
- 2 x LP PCIe Gen4 x8 slots
- 1 x OCP 3.0 Gen4 x16 slot
- 1 x OCP 2.0 Gen3 x8 mezzanine slot
- 1+1 1600W 80 PLUS Platinum redundant power supplies
Specifications
Dimensions (WxHxD, mm)
2U
438 x 87 x 730
438 x 87 x 730
Motherboard
MZ92-FS0 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
24 x 2.5" SATA/SAS hot-swappable bays, connected to SAS expander
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, connected to SAS expander
Broadcom SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
0 x SAS/SATA drives
SAS card is required to enable the drives
Suggested 12Gb/s SAS cards:
CRA4448
CRA3338
24 x 2.5" SATA/SAS hot-swappable bays, connected to SAS expander
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, connected to SAS expander
Broadcom SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
0 x SAS/SATA drives
SAS card is required to enable the drives
Suggested 12Gb/s SAS cards:
CRA4448
CRA3338
SAS
Supported via SAS add-in cards
RAID
Depends on SAS add-in cards
Expansion Slots
Riser Card CRS2027:
- 2 x PCIe x8 (Gen4 x8) low-profile slots, from CPU_1
Riser Card CRS2033 x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
- 2 x PCIe x8 (Gen4 x8) low-profile slots, from CPU_1
Riser Card CRS2033 x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20O5: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2020: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20O5: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2020: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
1+1 1600W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A +12Vsb/ 2.5A
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A +12Vsb/ 2.5A
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 18.5 kg
Gross Weight: 25.5 kg
Gross Weight: 25.5 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R282-Z91
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR282Z91MR-00-A*
- Motherboard: 9MZ92FS0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2020: 9CBP2020NR-00
- Expander board - CEP26O0: 9CEP26O0NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2027: 9CRS2027NR-00
- Riser card - CRS2033: 9CRS2033NR-00
- Power supply: 25EP0-216008-L0S
Optional parts:
- 4 x NVMe kit: 6NR282Z9CSR-00-100
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR282Z91SR-RMA-A100
- Motherboard: 9MZ92FS0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2020: 9CBP2020NR-00
- Expander board - CEP26O0: 9CEP26O0NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2027: 9CRS2027NR-00
- Riser card - CRS2033: 9CRS2033NR-00
- Power supply: 25EP0-216008-L0S
Optional parts:
- 4 x NVMe kit: 6NR282Z9CSR-00-100
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR282Z91SR-RMA-A100
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
