Intel® P35 + ICH9R Chipset
- Supports Intel® Core™ 2 multi-core and 45nm processors
- Supports DDR2 1066* memory for outstanding system performance.
- Ultimate graphics performance with dual PCI-E x16 interface
- Integrated SATA 3Gb/s with RAID function
- Features high speed Gigabit Ethernet and IEEE1394
- Ultra Durable 2 motherboard features High Quality CPU Power design with Ferrite core chokes, Low RDS (on) MOSFET and Solid Capacitors.
- Durable Capacitors that take advantage of Japanese manufactured solid capacitors
- Audio controller from ALC 889A featuring 106 dB Signal to Noise ratio and support for Blu-ray.

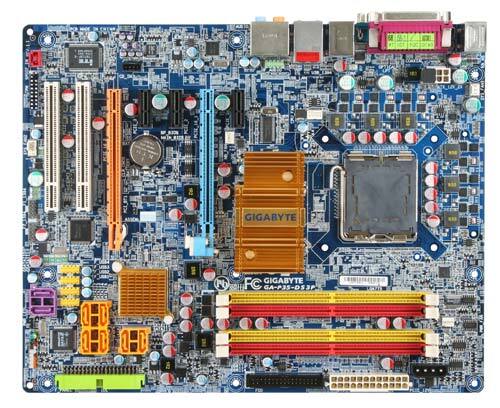

IntroductionThe GA-P35-DS3P is GIGABYTE high performance platform based on the killer combination of the new Intel P35 chipset plus support for the latest multi-core processors up to FSB 1333MHz, including the upcoming 45nm platform. The GA-P35-DS3P is also part of the GIGABYTE Ultra Durable 2 Series of motherboards, featuring top quality electronic components which provide optimized power savings, ultra cooling and extended system durability.
Ultra Durable 2 -Designed with Top Quality Highly Efficient Components
Ultra Cooling - Low RDS(on) MOSFET Design
Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging.
Low Power Loss - Ferrite Core Choke Design
Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.
Longer Life - All-Solid Capacitor Design
Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors.
Intel® Core™ 2 multi-core and upcoming 45nm processorsGA-EP41T-UD3L supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform.
Intel® P35 Express ChipsetThe Intel® P35 Express Chipsets support the latest multi-core processors up to FSB 1333MHz, including the upcoming 45nm platform, with its record breaking performance and greater energy efficiency. Intel® P35 chipset, with optimized system memory capabilities, chipset over-speed protection removed for maximum overclocking and Intel® Turbo Memory technology, providing faster boot and application load times and additional power savings. Intel® P35 chipset provides scalable options for users wanting to take advantage of higher memory performance with less power consumption to run next generation applications such as high-definition video and 3D visualization.
Qualified for Windows® 7The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
Windows Vista Premium Logo CertifiedWindows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more
Dual Channel DDR2 1066* MHzExperience the advanced technology of DDR2 1066* memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* DDR2 1066 is supported with combination of AM2+ processors and DDR2 1066 memory modules, please refer "Memory Support List" for detail memory support information.
SATA 3Gb/s storage interfaceSATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
IEEE1394 motherboardThis motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video.
ALC889A enables a Superior Audio Experience
Excellent Audio Performance
High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.
Blu-ray Full Rate Audio Support
The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support Blu-ray formats for an exhilarating home theater entertainment experience.
7.1+2 Channel High Definition Output
The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
ATI CrossFireWith support for ATI CrossFire, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the motherboard allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.
Attention: When attempting to enable ATI Crossfire Technology on this board.In case of unable to get Crossfire Technology working normally, please make sure to use ATI graphic cards that have hardware Crossfire bridge.
Intel® Matrix Storage TechnologyIntel® Matrix Storage Technology, can deliver up to 80% faster storage performance with PCs equipped with two hard drives using RAID 0 data striping. Using RAID 1 data mirroring can protect against a hard drive failure by mirroring all data among two hard drives. In addition RAID 5 offers the fault-tolerant capability to automatically back up your most important files, while also providing faster disk access and adding storage capacity.
Gigabit LAN connectivityThe Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents
RoHS compliantAs a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.
SpeedThe Speed compliant motherboards of GIGABYTE S-series provide intelligent over-clocking and over-voltage software settings through both hardware and software design...more
SmartThe Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
SafeSafe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
