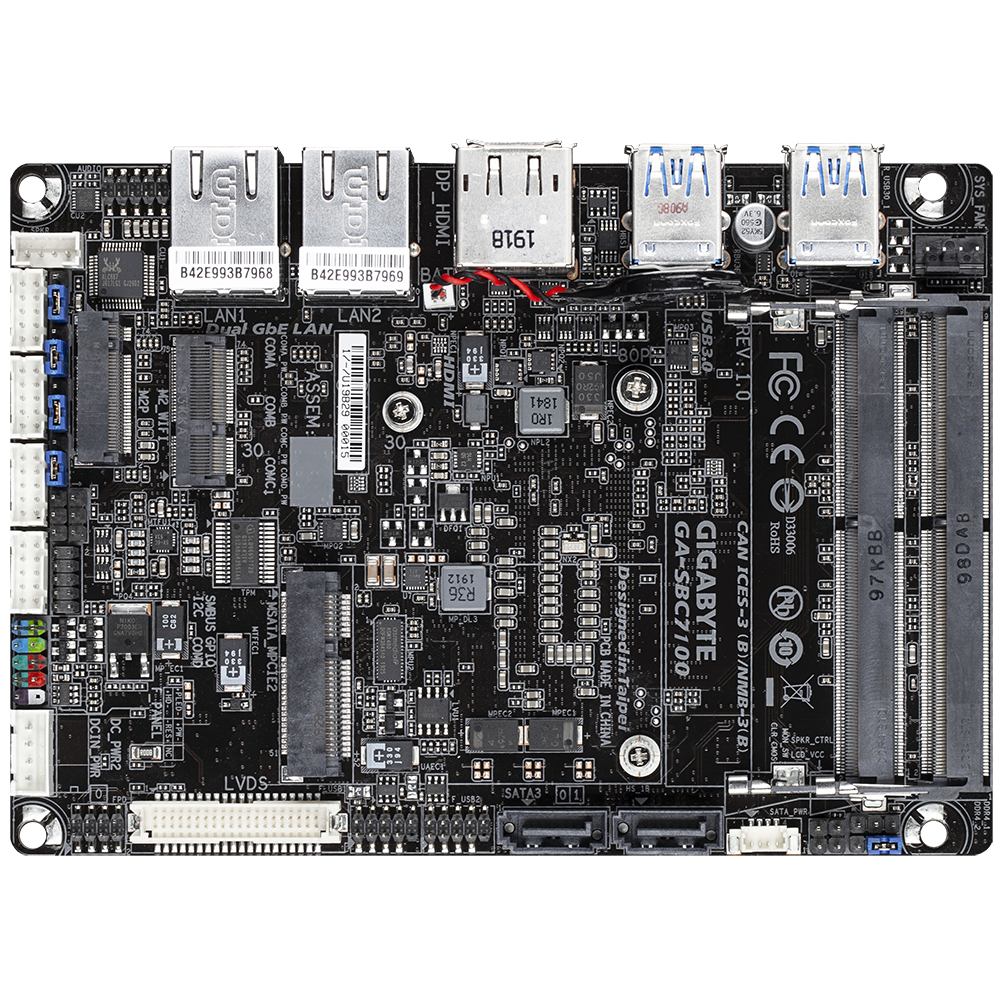

• Built-in Intel® Core I Series i3-7100U Quad core MCP 15W processor
  • Dual channel DDR4 SO-DIMM slot support
  • 2 x RS232/422/485, 2 x RS232, Digital I/O 4-in/4-out
  • 1 x Mini-PCIe/mSATA Slot for full-Length WIFI/mSATA Support
  • 1 x M.2 2280 SSD slot, 1 x M.2 Wifi slot
  • LVDS Header signal for System Integrated Flat Panel Display Support
  • Dual GbE LAN with high ESD Protection support WOL and PXE
  • SBC 146x102mm Form Factor with Wide Range 9~36V DC-In Power Design
  • Op Temp 0~60 degress


    • * Datasheet Download
  • Intel® Core™ i3 Processor
    The Intel® core I Series™ i3-7100U Quad-Core MCP processor from Intel, combining CPU, graphics and memory controller in one package. Based on the 14nm manufacturing process, the Intel® Core I Series ™ i3-7100U uses the smallest package of any desktop processor within a low thermal envelope of on 15 watts. The Intel® Core™ I series i3-7100U boasts excellent performance including DX12 on Intel® HD Graphics, plus a dedicated HEVC decoder for smooth HD video playback.
  • GIGABYTE Ultra Durable™
    GIGABYTE Ultra Durable™ debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
  • Humidity Protection
    Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.


  • Electrostatic Protection
    GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.


  • Dual Gigabit LAN with WOL and PXE support


    The Dual Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.




  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • GIGABYTE @BIOS
    The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.
