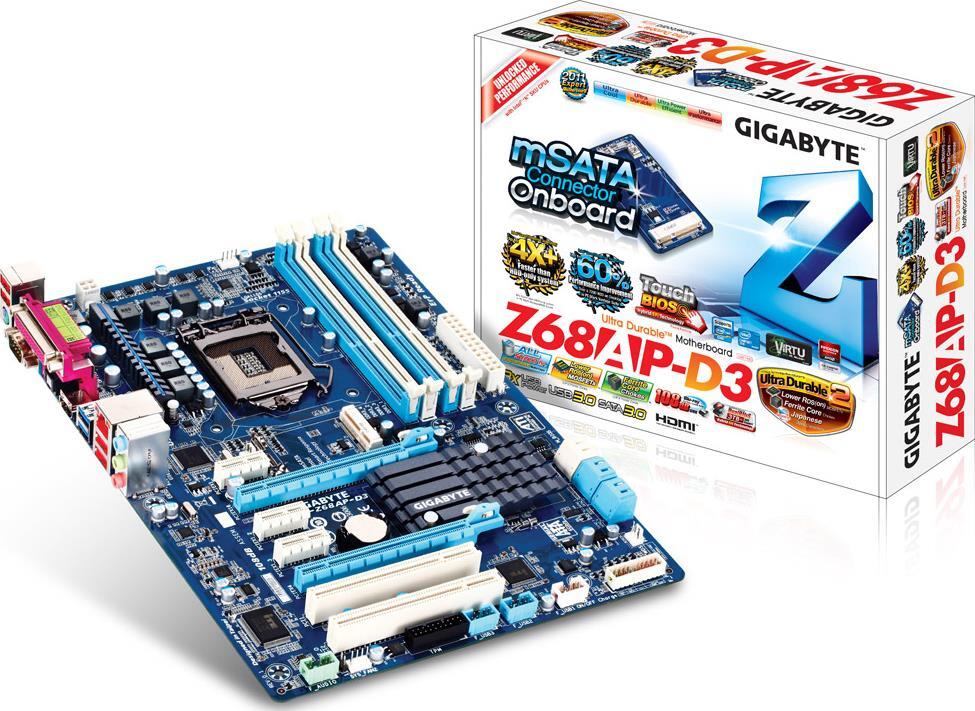

GA-Z68AP-D3 (Rev. 1.0)

Rev. 1.0Rev. 2.0
Intel® Z68 Chipset
PrezentacjaSpecyfikacjaSupportAktualności/NagrodyLearn MoreWhere to Buy

Specyfikacja

  • Procesor
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
  • Chipset
    1. Intel® Z68 Express Chipset
  • Pamięć
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Wyjścia graficzne
  • Integrated Graphics Processor:
    1. 1 x HDMI port, supporting a maximum resolution of 1920x1200
  • Układ audio
    1. Realtek ALC889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
  • Złącza rozszerzeń
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 slot or the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
    3. 3 x PCI Express x1 slots
      (All PCI Express slots conform to PCI Express 2.0 standard.)
    4. 2 x PCI slots
  • Multi-Graphics Technology
    1. Support for AMD CrossFireX™ technology
      * The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX™ is enabled.
  • Złącza SATA
  • Chipset:
    1. 2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
    2. 4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
      * The SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • USB
  • Chipset:
    1. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
    Etron EJ168 chip:
    1. Up to 2 USB 3.0/2.0 ports on the back panel
  • Wewnętrzne złącza wejścia/wyjścia
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x SATA 6Gb/s connectors
    4. 4 x SATA 3Gb/s connectors
    5. 1 x mSATA connector
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x S/PDIF Out header
    12. 3 x USB 2.0/1.1 headers
    13. 1 x clearing CMOS jumper
    14. 1 x Trusted Platform Module (TPM) header
  • Złącza wejścia/wyjścia na tylnym panelu
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x parallel port
    3. 1 x serial port
    4. 1 x optical S/PDIF Out connector
    5. 1 x HDMI port
    6. 4 x USB 2.0/1.1 ports
    7. 2 x USB 3.0/2.0 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In/Line Out/Microphone)
  • Kontroler I/O
    1. iTE IT8728 chip
  • Monitoring sprzętowy
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control
      * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
  • BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Inne funkcje
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    8. Support for Smart 6™
    9. Support for Auto Green
    10. Support for eXtreme Hard Drive (X.H.D)
    11. Support for ON/OFF Charge
    12. Support for Cloud OC
    13. Support for 3TB+ Unlock
    14. Support for TouchBIOS
    15. Support for Q-Share
  • Bundled Software
    1. Norton Internet Security (OEM version)
    2. Intel® Smart Response Technology
    3. LucidLogix Virtu
      * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
  • System operacyjny
    1. Support for Microsoft® Windows® 8/7/Vista/XP
  • Wymiary
    1. ATX Form Factor; 30.5cm x 21.5cm
  • Uwagi
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesor
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
      2. L3 cache varies with CPU
      (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
    • Chipset
      1. Intel® Z68 Express Chipset
    • Pamięć
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Wyjścia graficzne
    • Integrated Graphics Processor:
      1. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    • Układ audio
      1. Realtek ALC889 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
      4. Support for S/PDIF Out
    • LAN
      1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
    • Złącza rozszerzeń
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 slot or the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
      3. 3 x PCI Express x1 slots
        (All PCI Express slots conform to PCI Express 2.0 standard.)
      4. 2 x PCI slots
    • Multi-Graphics Technology
      1. Support for AMD CrossFireX™ technology
        * The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX™ is enabled.
    • Złącza SATA
    • Chipset:
      1. 2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
      2. 4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
        * The SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
      3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
        * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
    • USB
    • Chipset:
      1. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
      Etron EJ168 chip:
      1. Up to 2 USB 3.0/2.0 ports on the back panel
    • Wewnętrzne złącza wejścia/wyjścia
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 2 x SATA 6Gb/s connectors
      4. 4 x SATA 3Gb/s connectors
      5. 1 x mSATA connector
      6. 1 x CPU fan header
      7. 2 x system fan headers
      8. 1 x power fan header
      9. 1 x front panel header
      10. 1 x front panel audio header
      11. 1 x S/PDIF Out header
      12. 3 x USB 2.0/1.1 headers
      13. 1 x clearing CMOS jumper
      14. 1 x Trusted Platform Module (TPM) header
    • Złącza wejścia/wyjścia na tylnym panelu
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x parallel port
      3. 1 x serial port
      4. 1 x optical S/PDIF Out connector
      5. 1 x HDMI port
      6. 4 x USB 2.0/1.1 ports
      7. 2 x USB 3.0/2.0 ports
      8. 1 x RJ-45 port
      9. 3 x audio jacks (Line In/Line Out/Microphone)
    • Kontroler I/O
      1. iTE IT8728 chip
    • Monitoring sprzętowy
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System/Power fan speed detection
      4. CPU overheating warning
      5. CPU/System/Power fan fail warning
      6. CPU/System fan speed control
        * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    • BIOS
      1. 2 x 32 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Inne funkcje
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      8. Support for Smart 6™
      9. Support for Auto Green
      10. Support for eXtreme Hard Drive (X.H.D)
      11. Support for ON/OFF Charge
      12. Support for Cloud OC
      13. Support for 3TB+ Unlock
      14. Support for TouchBIOS
      15. Support for Q-Share
    • Bundled Software
      1. Norton Internet Security (OEM version)
      2. Intel® Smart Response Technology
      3. LucidLogix Virtu
        * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
    • System operacyjny
      1. Support for Microsoft® Windows® 8/7/Vista/XP
    • Wymiary
      1. ATX Form Factor; 30.5cm x 21.5cm
    • Uwagi
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Terminy „HDMI” oraz „ HDMI High-Definition Multimedia Interface ”, charakterystyczny kształt produktów HDMI (HDMI trade dress) oraz Logo HDMI stanowią znaki towarowe lub zastrzeżone znaki towarowe spółki HDMI Licensing Administrator, Inc.
      * Zamieszczony materiał został udostępniony jedynie w celach informacyjnych. GIGABYTE zastrzega sobie prawo do wprowadzania zmian w specyfikacji produktu i udostępnionych informacji o produkcie bez wcześniejszego powiadomienia.
      * Przedstawiane dane są oparte na maksymalnych teoretycznych wydajnościach przedstawionym przez producentów chipsetów lub organizacji określających zakres tych specyfikacji. Rzeczywista wydajność może się różnić w zależności od konfiguracji systemu.
      * Wszystkie znaki towarowe są własnością ich właścicieli.
      * Z uwagi na budowę systemu, zakres pamięci może się różnić.
