Performance
Connectivity
1
8 Solid Pin CPU Power Connector
2
PCI Express 4.0 Design
  1. 1*PCIe 4.0 x16 Slot
  2. 2*PCIe 4.0 x4 M.2 Connectors
3
Audio Solution
  1. 8-ch HD Audio
  2. Audio Noise Guard
  3. High-End Audio Capacitors
4
6+2+1 Phases Hybrid Digital VRM Design
5
Support 14th/13th/12th Gen. Intel® Core™ Processors
6
Dual Channel DDR5, 2 DIMMs
7
PCIe EZ-Latch
8
Q-FLASH Plus Onboard Button
1
Wi-Fi 802.11AX & BT
2
HDMI
3
D-Sub
4
DisplayPort
5
USB 3.2 Gen 1 Type-C®
6
2.5GbE LAN
7
4*SATA 6Gb/s
8
RGB FUSION
  1. 2*Addressable LED Headers
  2. 1*RGB LED Header
PERFORMANCE
Hybrid Digital VRM Design
PCIe 4.0 Design

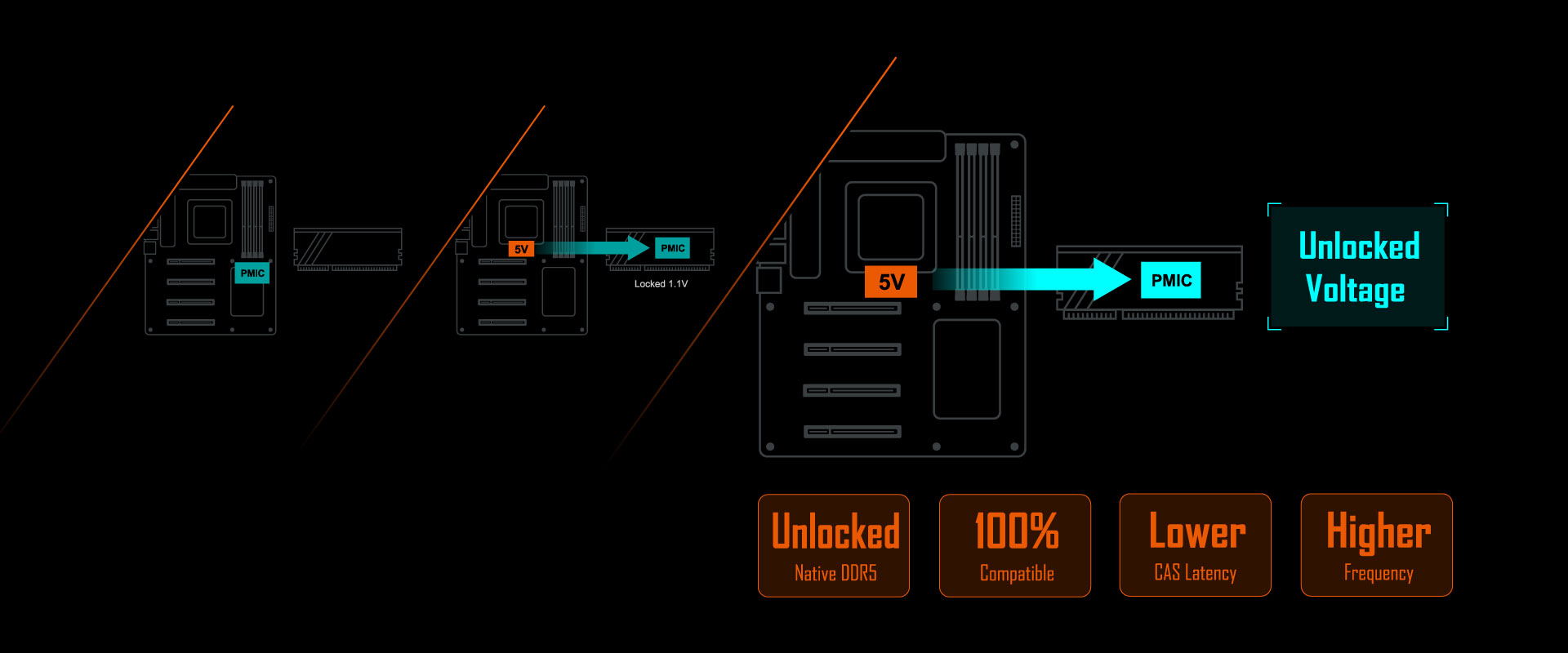

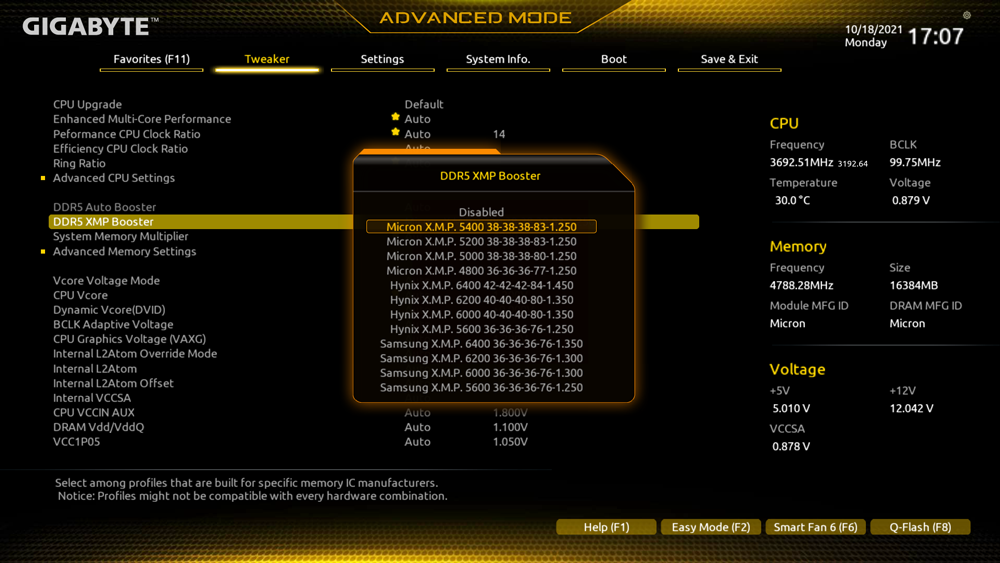

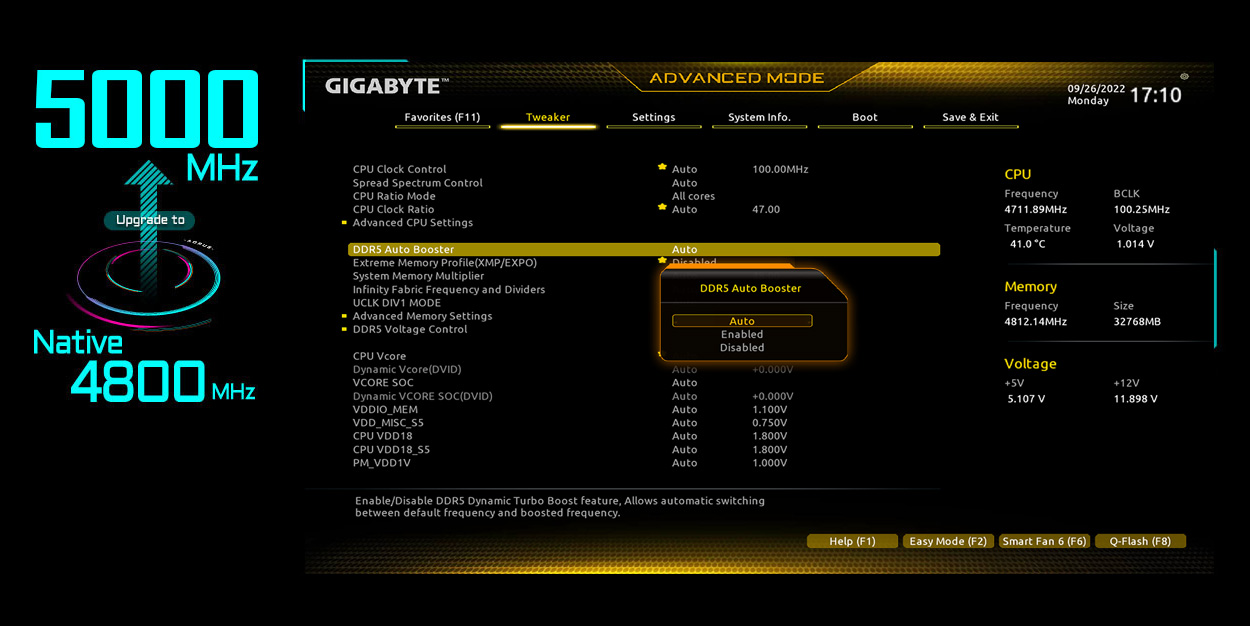

Unlock DDR5
2 x PCIe 4.0x4 M.2
PerfDrive

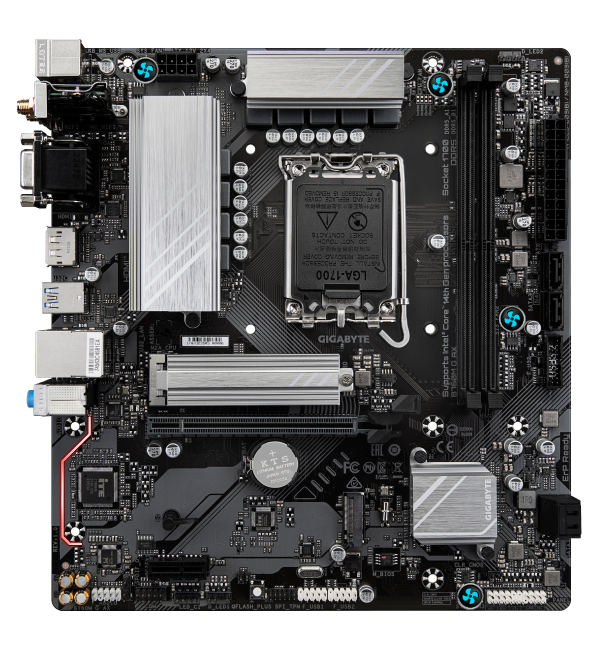

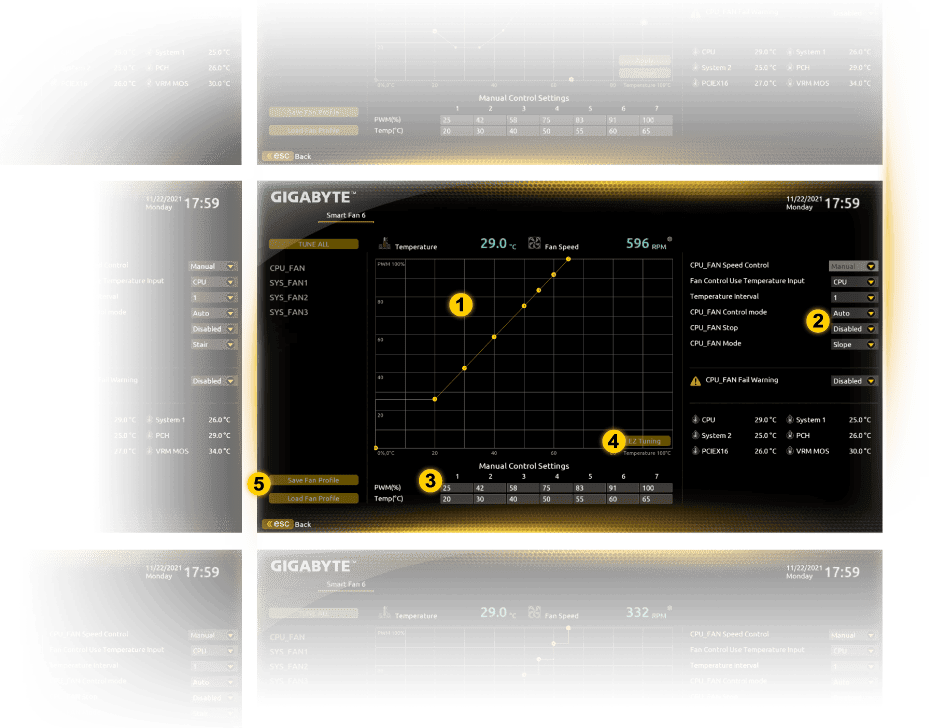

Smart Fan 6
To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE GAMING series motherboard equip the best VRM design ever built with the highest quality components.
6+2+1 Phases Hybrid Digital VRM Design
• 6+2+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation

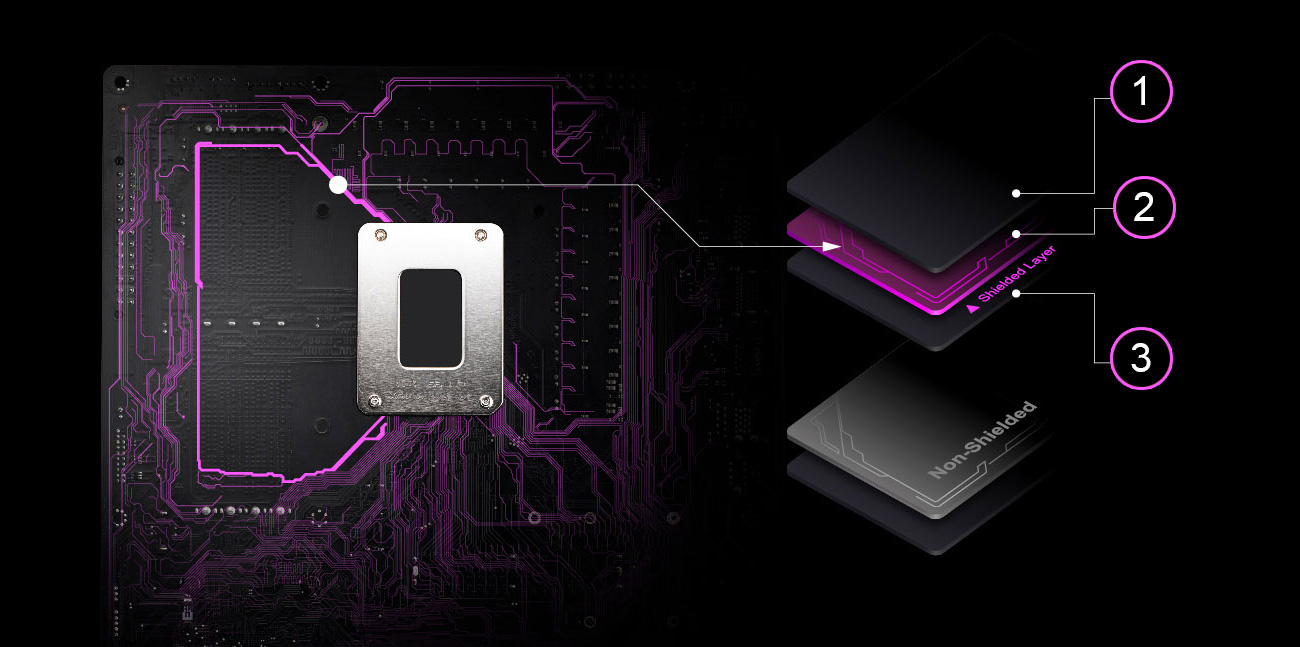

GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
1. PCIe 4.0 M.2 Slots
2. PCIe 4.0 x16 Slot
Dual PCIe 4.0 x4 M.2
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
Max Turbo
Optimization
Spec Enhance
E-Core™ Disable
Max Turbo allows Intel® 13th Gen. Core™ CPU to run at Maximum Turbo Boost speed.
The Optimization mode enables Intel® 13th Gen. Core™ CPU to balance between high performance and low temperature.
The Spec Enhance mode enables Intel® 13th Gen. Core™ CPU to run at high performance under a lower temperature setting.
The E-Core™ Disable mode allocates CPU resources to P-core exclusively to boost its gaming performance, while diminishing the overall power consumption of processors.
* Features and function vary depending on Motherboard and CPU specifications, image is for reference only.
CONNECTIVITY

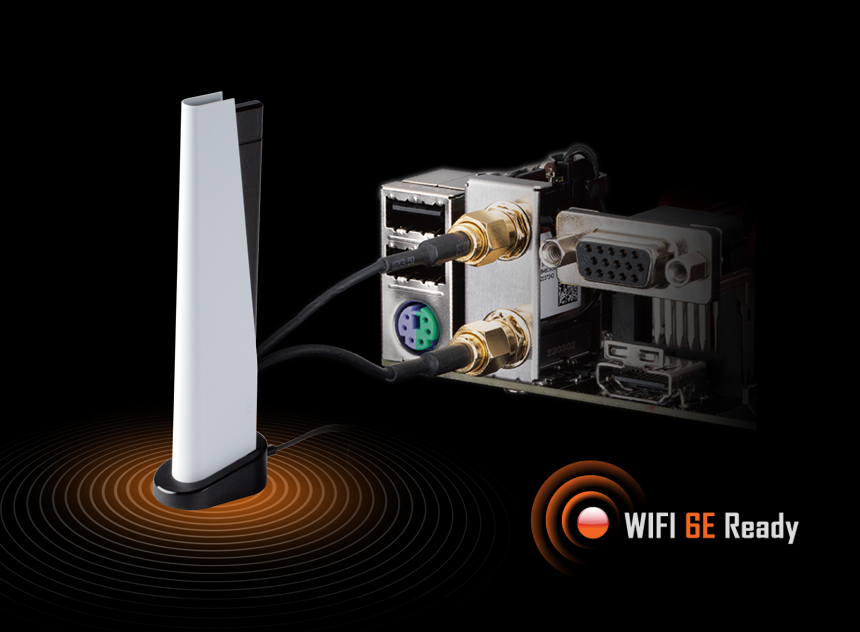

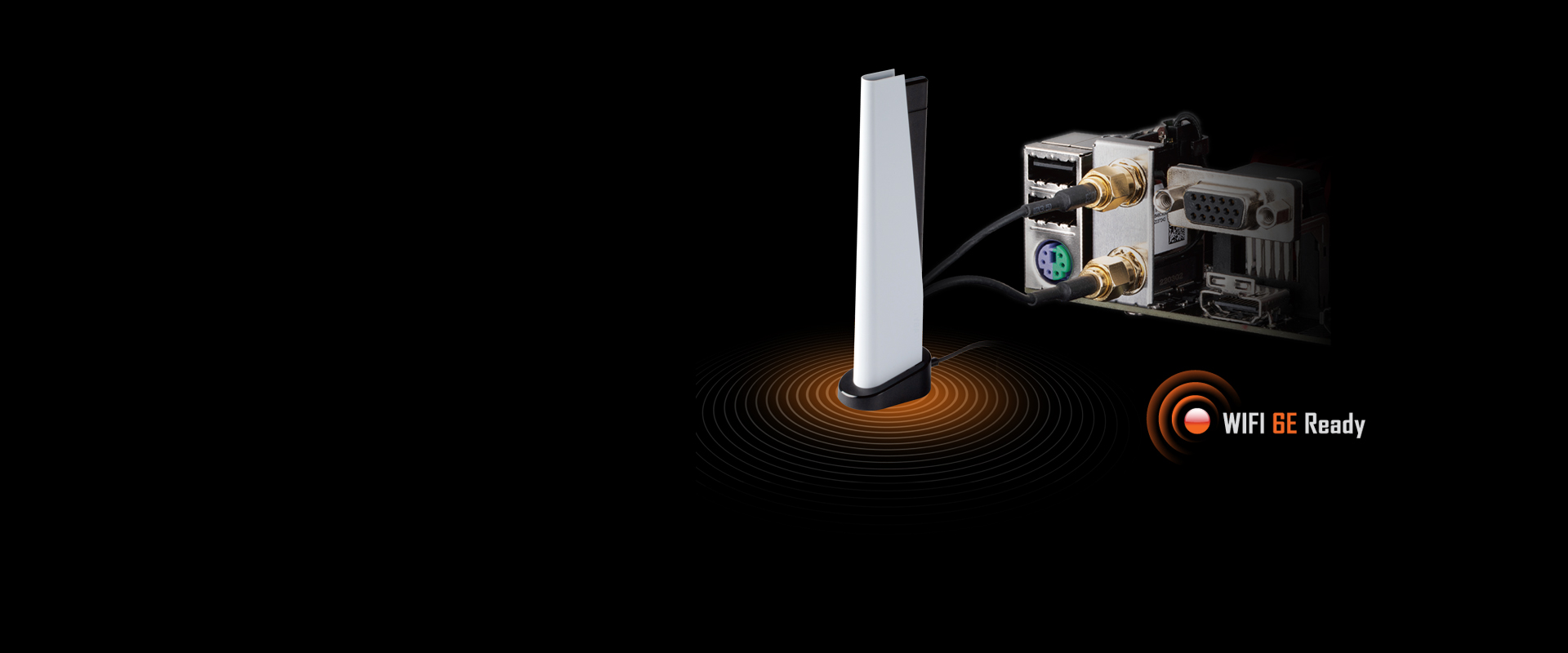

802.11ax Wi-Fi 6E
2.5GbE LAN
Hi-Fi Audio
First adopter on 2.5GbE LAN onboard
2X Faster than ever
  • Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
  • Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

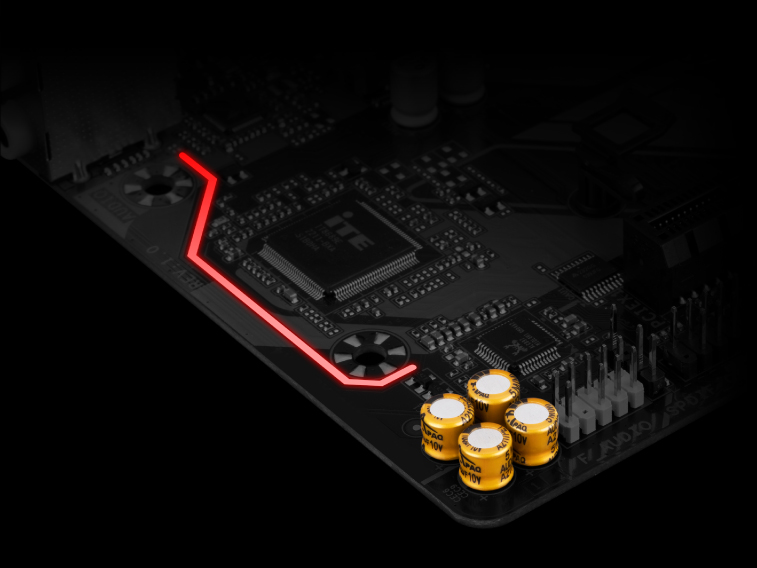

  • High-End Audio Capacitors
    GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
    Audio Noise Guard
    GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
    * Photo for reference only.
    PERSONALIZATION
    UEFI BIOS
    GIGABYTE Control Center
    Friendly User Interface
    The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
    My Favorites
    Add constantly used items into the favorite menu for quick access.
    Storage Information
    Show all kinds of storage information including SATA, PCIE and M.2 interface.
    Changelog
    List all changes before saving and exiting bios. Quickly review overall settings modification.
    Intuitive Load Line Curve
    Clearly show each loadline calibration setting in an intuitive curve graph.

    GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
    1. Unified software platform for all Gigabyte supported products
    2. Intuitive user interface for an eased experience
    3. Modularized control components only for installed hardware
    4. Auto update function to keep system up to date and support future products
    ULTRA DURABLE
    DIY Friendly
    Q-Flash Plus
    PCIe EZ-Latch
    Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
    * Photo for reference only.
    STEP 1.
    Plug 24pin & 8pin power supply cable on motherboard
    STEP 2.
    Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
    STEP 3.
    Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
