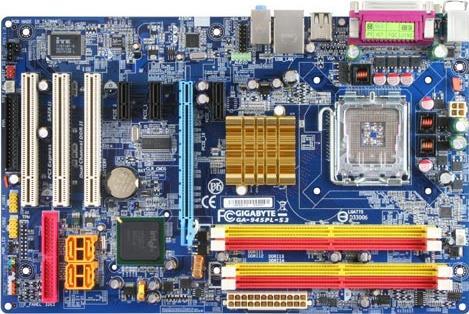

GA-945PL-S3 (Rev. 1.0)

Rev. 1.0Rev. 2.0Rev. 3.x
Intel 945PL+ ICH7 chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / Premios

Especificación

  • Procesador
    1. LGA775 Intel Core™ 2 Extreme/ Intel Core™ 2 Duo processor*
    2. Intel® Pentium® D Processor
    3. Intel® Pentium® 4 Processor
    4. Supports 800/533MHz FSB
  • Chipset
    1. Northbridge: Intel® 945PL Express Chipset
    2. Southbridge: Intel® ICH7
    3. Realtek 8111B Gigabit Ethernet controller
    4. Realtek ALC883 8 Channel Audio Codec
  • Memoria
    1. 4 DDR II DIMM memory slots (supports up to 4GB memory)
    2. Supports 1.8V DDR II DIMM
    3. Supports dual channel DDR II 533/400 DIMM
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Puertos de Expansión
    1. 1 PCI Express x 16 slot
    2. 3 PCI Express x 1 slots
    3. 3 PCI slots
  • Conectores Internos de E/S
    1. 4 Serial ATA II 3.0Gb/s connectors
    2. 1 UDMA ATA 100/66/33 connectors
    3. 1 SPDIF IN/OUT connectors
    4. 1 FDD connector
    5. 2 USB 2.0/1.1 connector (supports 4 ports)
    6. 2 Cooling fan pin headers
    7. 1 CD IN connector
    8. 1 Chassis Intrusion connector
  • Conectores del Panel Trasero
    1. 4 USB 2.0/1.1 ports
    2. 1 RJ45 ports
    3. 3 Audio ports (Line-in/ Line-out/ MIC)
    4. PS/2 Keyboard/ Mouse
    5. 1 COM port connector
    6. 1 LPT port
  • BIOS
    1. 1 4 Mbit flash ROM
    2. Use of licensed AWARD BIOS
    3. Supports Virtual Dual BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.
  • Diseño
    1. ATX form factor; 305mm x 190mm
  • Otras Características
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune 5
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Virtual DualBIOS
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
    3. * Due to 945PL express chipset specification, 945PL-S3 can only support up to FSB800MHz.
  • Procesador
    1. LGA775 Intel Core™ 2 Extreme/ Intel Core™ 2 Duo processor*
    2. Intel® Pentium® D Processor
    3. Intel® Pentium® 4 Processor
    4. Supports 800/533MHz FSB
  • Chipset
    1. Northbridge: Intel® 945PL Express Chipset
    2. Southbridge: Intel® ICH7
    3. Realtek 8111B Gigabit Ethernet controller
    4. Realtek ALC883 8 Channel Audio Codec
  • Memoria
    1. 4 DDR II DIMM memory slots (supports up to 4GB memory)
    2. Supports 1.8V DDR II DIMM
    3. Supports dual channel DDR II 533/400 DIMM
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Puertos de Expansión
    1. 1 PCI Express x 16 slot
    2. 3 PCI Express x 1 slots
    3. 3 PCI slots
  • Conectores Internos de E/S
    1. 4 Serial ATA II 3.0Gb/s connectors
    2. 1 UDMA ATA 100/66/33 connectors
    3. 1 SPDIF IN/OUT connectors
    4. 1 FDD connector
    5. 2 USB 2.0/1.1 connector (supports 4 ports)
    6. 2 Cooling fan pin headers
    7. 1 CD IN connector
    8. 1 Chassis Intrusion connector
  • Conectores del Panel Trasero
    1. 4 USB 2.0/1.1 ports
    2. 1 RJ45 ports
    3. 3 Audio ports (Line-in/ Line-out/ MIC)
    4. PS/2 Keyboard/ Mouse
    5. 1 COM port connector
    6. 1 LPT port
  • BIOS
    1. 1 4 Mbit flash ROM
    2. Use of licensed AWARD BIOS
    3. Supports Virtual Dual BIOS
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.
  • Diseño
    1. ATX form factor; 305mm x 190mm
  • Otras Características
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune 5
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Virtual DualBIOS
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
    3. * Due to 945PL express chipset specification, 945PL-S3 can only support up to FSB800MHz.

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
