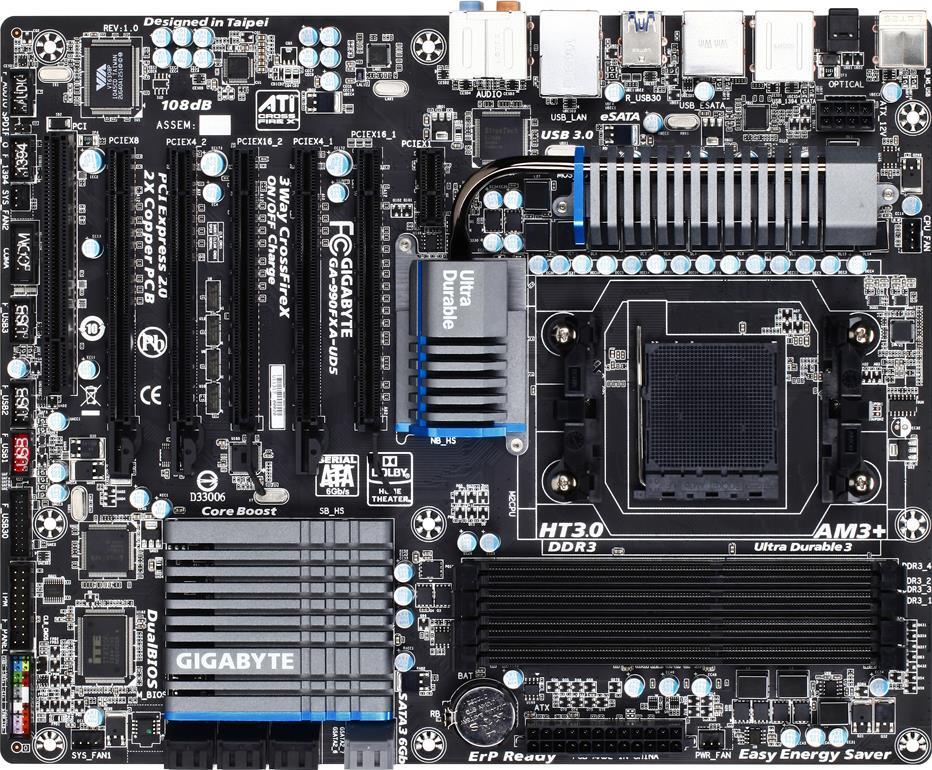

GA-990FXA-UD5 (Rev. 1.x)

Rev. 1.xRev. 3.0Rev. 3.1
AMD 990FX + SB950 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosAprender más

Especificación

  • Procesador
  • AM3+ Socket:
    1. Support for AMD AM3+ FX processors
    2. Support for AMD AM3 Phenom™ II processors / AMD Athlon™ II processors
    (Please refer "CPU Support List" for more information.)
  • Bus Hyper Transport
    1. 5200 MT/s
  • Chipset
    1. North Bridge: AMD 990FX
    2. South Bridge: AMD SB950
  • Memoria
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2)
    (Please refer "Memory Support List" for more information.)
  • Audio
    1. Realtek ALC889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby Home Theater
    5. Support for S/PDIF Out
  • LAN
    1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) (Note 3)
    2. 1 x PCI Express x16 slots, running at x8 (PCIEX8) (Note 4)
    3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
    4. 1 x PCI Express x1 slot
      5. (All PCI Express slots conform to the PCI Express 2.0 standard.)
    5. 1 x PCI slot
  • Tecnología Multi-Gráficos
    1. Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ Technologies
    2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ Technologies
  • Interfaz de Almacenamiento
  • South Bridge:
    1. 6 x SATA 6Gb/s connectors (SATA3_0~SATA3_5) supporting up to 6 SATA 6Gb/s devices
    2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD
    2 x Marvell 88SE9172 chips:
    1. 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
    2. 2 x eSATA 6Gb/s connectors on the back panel supporting up to 2 SATA 6Gb/s devices
    3. Support for RAID 0 and RAID 1
  • USB
  • South Bridge:
    1. Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)
    2 x Etron EJ168 chips:
    1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • IEEE 1394
  • VIA VT6308 chip:
    1. Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 8 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 2 x system fan headers
    6. 1 x power fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 3 x USB 2.0/1.1 headers
    11. 1 x USB 3.0/2.0 header
    12. 1 x IEEE 1394a header
    13. 1 x serial port header
    14. 1 x clearing CMOS jumper
    15. 1 x Trusted Platform Module (TPM) header
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x optical S/PDIF Out connector
    3. 1 x IEEE 1394 port
    4. 8 x USB 2.0/1.1 ports
    5. 2 x USB 3.0/2.0 ports
    6. 2 x eSATA 6Gb/s connector
    7. 1 x RJ-45 port
    8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • Controlador de E/S
    1. ITE IT8720 chip
  • Monitorización H/W
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control (Note 5)
  • BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Características Únicas
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 6)
    8. Support for Easy Energy Saver
    9. Support for Smart Recovery
    10. Support for Auto Green
    11. Support for ON/OFF Charge
    12. Support for Cloud OC
    13. Support for 3TB+ Unlock
    14. Support for Q-Share
  • Software Incluido
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft Windows 8/ 7/ Vista/ XP
  • Diseño
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Nota
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

    (Note 2) To support a DDR3 1866 MHz (and above) memory, you must install an AMD AM3+ CPU first.

    (Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.

    (Note 4) The PCIEX8 slot shares bandwidth with the PCIEX16_2 slot. When PCIEX8 is populated with a PCI Express expansion card, the PCIEX16_2 slot will operate at up to x8 mode.

    (Note 5) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

    (Note 6) Available functions in EasyTune may differ by motherboard model.
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
