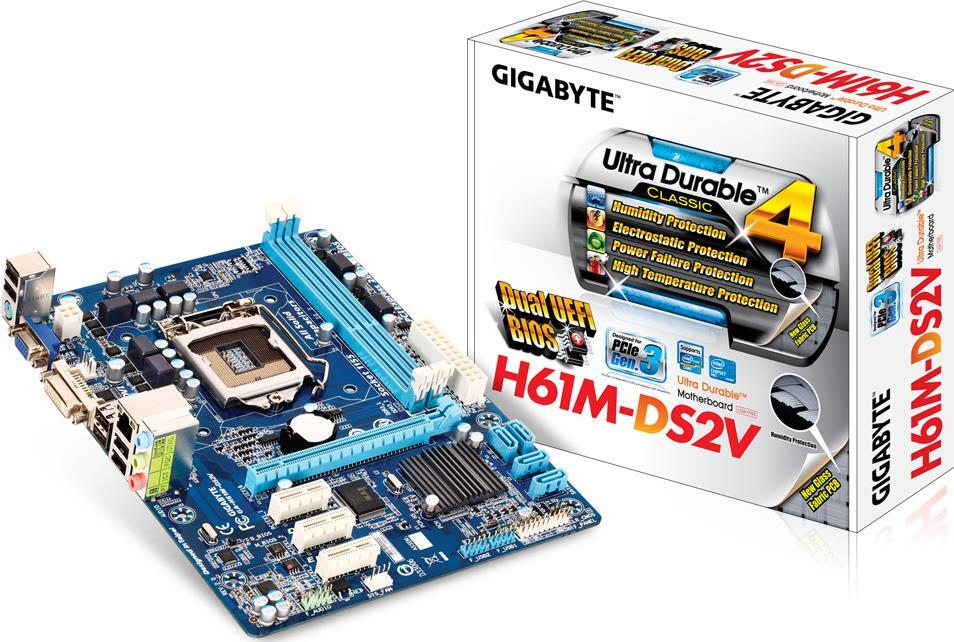

  4. GA-H61M-DS2V

GA-H61M-DS2V (Rev. 2.0)

Rev. 2.0Rev. 2.1
Intel® H61 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosAprender más

Especificación

  • Procesador
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
  • Chipset
    1. Intel® H61 Express Chipset
  • Memoria
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráficos Integrados
  • Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
  • Audio
    1. Realtek ALC887 audio codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    1. 1 x Realtek 8111F chip (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
      * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
    2. 3 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Interfaz de Almacenamiento
  • Chipset:
    1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
  • USB
  • Chipset:
    1. Up to 10 USB 2.0/1.1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 2 x USB 2.0/1.1 headers
    9. 1 x Clear CMOS jumper
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 6 x USB 2.0/1.1 ports
    5. 1 x RJ-45 port
    6. 3 x audio jacks (Line In/Line Out/Microphone)
  • Controlador de E/S
    1. iTE IT8728 chip
  • Monitorización H/W
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.
  • BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
  • Características Únicas
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Recovery2
    4. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    5. Support for ON/OFF Charge
  • Software Incluido
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft® Windows 8/7/Vista/XP
  • Diseño
    1. Micro ATX Form Factor; 24.4cm x 17.4cm
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
      2. L3 cache varies with CPU
      (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
    • Chipset
      1. Intel® H61 Express Chipset
    • Memoria
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
        * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
      (Please refer "Memory Support List" for more information.)
    • Gráficos Integrados
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        * The DVI-D port does not support D-Sub connection by adapter.
    • Audio
      1. Realtek ALC887 audio codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • LAN
      1. 1 x Realtek 8111F chip (10/100/1000 Mbit)
    • Puertos de Expansión
      1. 1 x PCI Express x16 slot, running at x16
        (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
        * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
      2. 3 x PCI Express x1 slots
        (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
    • Interfaz de Almacenamiento
    • Chipset:
      1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    • USB
    • Chipset:
      1. Up to 10 USB 2.0/1.1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
    • Conectores Internos de E/S
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 4 x SATA 3Gb/s connectors
      4. 1 x CPU fan header
      5. 1 x system fan header
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 2 x USB 2.0/1.1 headers
      9. 1 x Clear CMOS jumper
    • Conectores del Panel Trasero
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 6 x USB 2.0/1.1 ports
      5. 1 x RJ-45 port
      6. 3 x audio jacks (Line In/Line Out/Microphone)
    • Controlador de E/S
      1. iTE IT8728 chip
    • Monitorización H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.
    • BIOS
      1. 2 x 32 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
    • Características Únicas
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress Recovery2
      4. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      5. Support for ON/OFF Charge
    • Software Incluido
      1. Norton Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Microsoft® Windows 8/7/Vista/XP
    • Diseño
      1. Micro ATX Form Factor; 24.4cm x 17.4cm
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
