B450M D3HP WIFI6E

B450M D3HP WF6E
المزايا الرئيسيةالمواصفاتالدعممعرض الصور
1/4

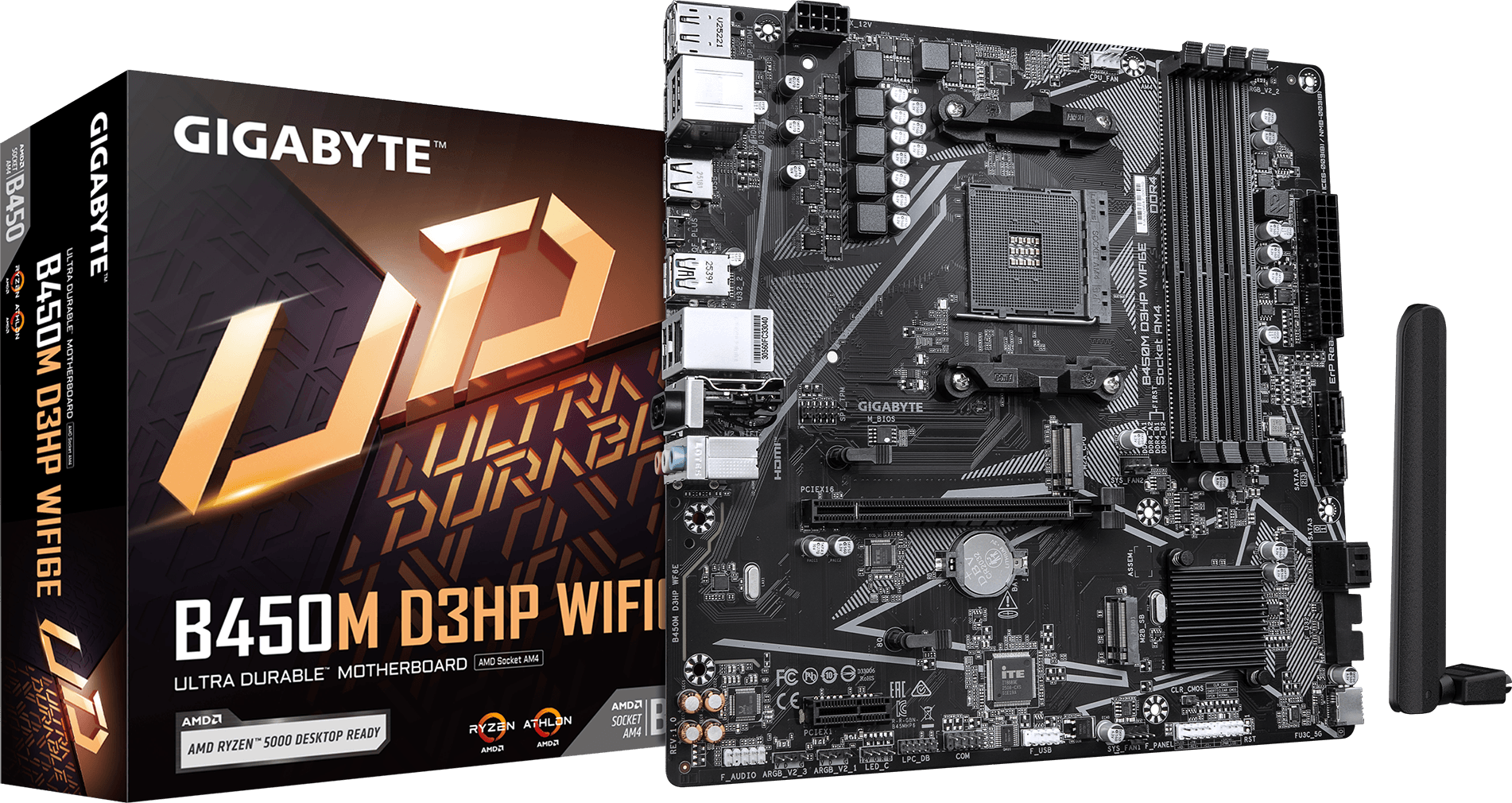

اللوحة الرئيسية - B450M D3HP WIFI6E
AMD B450 Ultra Durable Motherboard with Digital VRM Solution, Wi-Fi 6E, GbE LAN, NVMe PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 6 with FAN STOP

  • AMD Socket AM4: Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
  • Digital 4+2 phases VRM solution
  • Dual Channel DDR4: 4*DIMMs
  • NVMe PCIe 3.0 x4 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Fast Networking: GbE LAN & Wi-Fi 6E
  • Extended Connectivity: HDMI, Displayport

المزايا الرئيسية

SPEC OVERVIEW
PERFORMANCE
CONNECTIVITY
COOLING
AUDIO
ULTRA DURABLE
GCC
SPEC OVERVIEW
PERFORMANCE
CONNECTIVITY
COOLING
AUDIO
ULTRA DURABLE
GCC
GET READY FOR AMD RYZEN™ 5000 SERIES
GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.
AMD Ryzen™ 5000, 4000, 3000, 2000, 1000 Series Compatible
AMD StoreMI technology
GIGABYTE 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi
1
1 x DisplayPort
2
2 x HDMI
3
4 x USB 3.2 Gen 1
4
3 x USB 2.0 Gen 1
5
Q-FLASH PLUS Button
6
GbE LAN
7
WIFI EZ-Plus
Wi-Fi 6E
8
Realtek® GbE LAN
9
High-end Audio Capacitors
10
RGB FUSION
-1 x RGB LED Header
-3 x ARGB LED Headers
11
4+2 Hybrid Digital VRM Design
-Premium Choke and Capacitor
12
Supports AMD Ryzen™ Series Processors
13
4 x DIMMs, Dual Channel DDR4
14
SATA3
15
M.2 Connector for SSD
16
Front USB-C 5Gb/s
PERFORMANCE
4+2 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 4+2 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.



Benefits of Low RDS(on) MOSFETs

‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.

CONNECTIVITY
802.11ax Wi-Fi 6E

The Wireless solution 802.11ax Wi-Fi 6E enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.



Benefit of Wi-Fi 6E

- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience



Wi-Fi 6E bring you the Ultimate VR experience!

Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.

Wi-Fi 6E compared to Wi-Fi 5 provide…
40% faster speed for smoother gaming/streaming experience
50% higher resolution for video game related content
Better battery life for VR devices



Wi-Fi 6E Advantage

Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.

NVMe PCIe Gen3 x4 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Realtek GbE LAN with cFosSpeed Internet Accelerator Software
Realtek Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
COOLING
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
  • High Current Support

    • Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

  • Precision Control

    • Multiple temperature/fan speed control points for precise fan curve

  • Dual Curve Mode

    • Slope/Stair dual mode for different user scenario

  • Fan Stop

    • Fan can stop completely below users' specified temperature point

Smart Fan 6 BIOS UI
1
Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
2
Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
3
Manual Input
For advanced users, we provide fan speed manual input for more precise control.
4
EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
5
Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
Note: The picture is for reference and may vary by model.
AUDIO
High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

The below photos are for reference only.

  • Audio Noise Guard
  • High-End Audio Components
ULTRA DURABLE

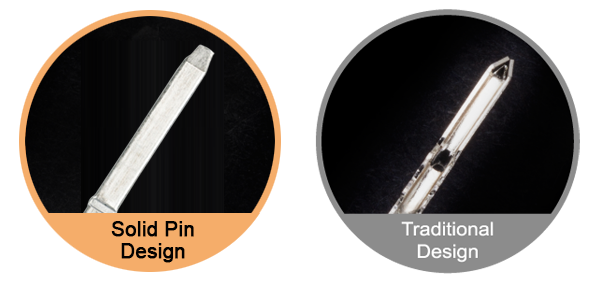

Solid Pin Power Connectors
Make Good Connection and Significantly Lower the Wires Capacity

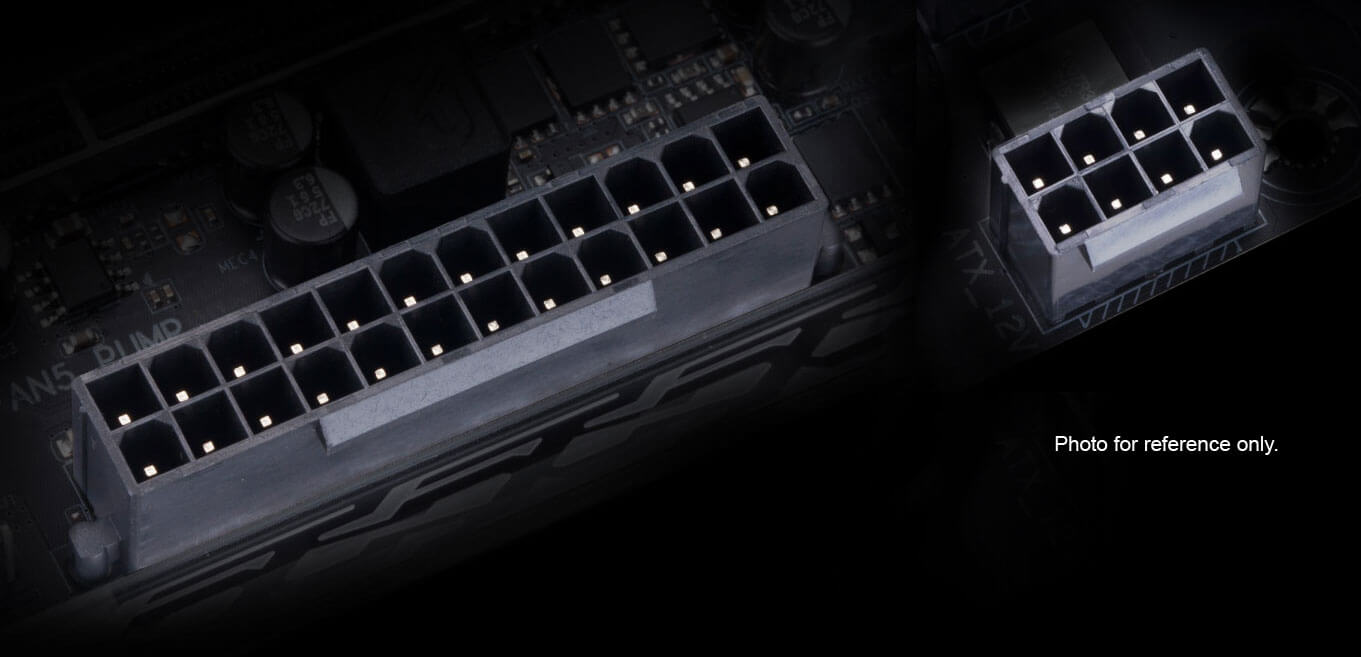

GIGABYTE 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
GIGABYTE Patented Double Locking Bracket

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

GIGABYTE Control Center

A unified software platform encompassing multiple GIGABYTE product.



RGB Fusion

Personalize the RGB illumination on your motherboard and connected peripherals.

Spotlight your flair

Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.

Varnish your shine

Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

* The information provided is for reference; please prioritize your specific setup and specifications.



1x RGB LED header
3x ARGB LED headers
4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.


* يراجتلا رهظملاو ،HDMI High-Definition Multimedia Interfaceو ،HDMI تاحلطصم دعُ ت HDMI Licensing ةكرشل ةلجسم ةيراجت تاملاع وأ ةيراجت تاملاع ،HDMI تاراعشو ،HDMI Administrator, Inc.
