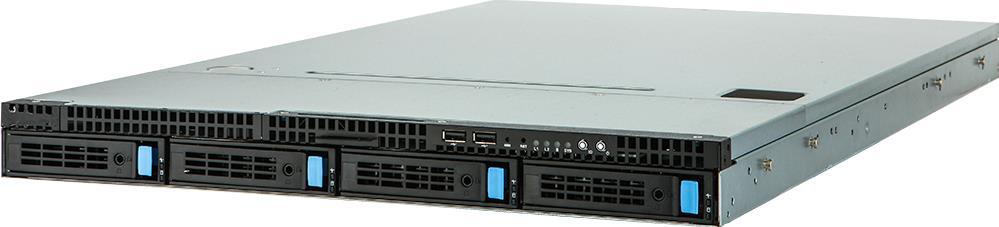

GS-R12PELegacy | Software updates supported
Dual Socket 1U Rackmount Server
- Intel® Xeon® processor E5-2600 & 2600 V2 product families
- 24 x RDIMM/UDIMM ECC DIMM slots
- 4 x 3.5" hot-swappable HDD bays
- Supports SATA III 6Gb/s and SAS 6Gb/s
- 2 x 10GbE BASE-T ports (Intel® X540)
- 2 x GbE LAN ports (Intel® I350-AM2)
- 650W 80 PLUS Platinum 380 DC redundant PSU
- Overview
- Specifications
- Support
- Related Resources
Specifications
Dimensions (WxHxD, mm)
1U
430 x 43 x 710
430 x 43 x 710
Motherboard
GA-7PPSH
CPU
Supports:
- Intel® Xeon® E5-2600 V2 processors
- Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
- Intel® Xeon® E5-2600 processors
- Intel® Xeon® E5-1600 processors (single CPU configuration only)
- Intel® 2nd & 3rd Gen. Core™ i7 processors (single CPU configuration only)
Socket
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
2 x CPU heatsinks included
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
2 x CPU heatsinks included
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C602
Memory
24 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
LAN
2 x 10GbE BASE-T ports (Intel® X540)
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100 management LAN
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
4 x 3.5" hot-swappable HDD/SSD bays
SATA
2 x SATA III 6Gb/s ports
SAS
2 x Mini-SAS (for 8 x SAS 6Gb/s)
1 x Mini-SAS (for 4 x SATA II 3Gb/s ports)
2 x Mini-SAS (disabled, can be enabled via Intel® upgrade key)
1 x Mini-SAS (for 4 x SATA II 3Gb/s ports)
2 x Mini-SAS (disabled, can be enabled via Intel® upgrade key)
RAID
Intel® SATA RAID 0/1/5/10
LSI® SAS2008 RAID 0/1/1E/10
LSI® SAS2008 RAID 0/1/1E/10
Peripheral Drives
-
Expansion Slots
1 x Full-length low-profile slot
1 x PCIe x16 (Gen3 x16 bus) connector
1 x PCIe x16 (Gen3 x16 bus) connector
Internal I/O
2 x 8-pin ATX 12V power connectors
1 x 24-pin ATX main power connector
1 x PMBus connector
1 x HDD back plane board connector
2 x CPU fan headers
2 x System fan headers
1 x Front panel header
5 x Mini-SAS cable connectors
2 x SATA III 6Gb/s ports
2 x USB 2.0 headers
1 x IPMB connector
1 x TPM header
1 x Patsburg-A SKU Select connector
1 x RAID select connector
1 x Serial header
1 x CMOS battery
1 x 24-pin ATX main power connector
1 x PMBus connector
1 x HDD back plane board connector
2 x CPU fan headers
2 x System fan headers
1 x Front panel header
5 x Mini-SAS cable connectors
2 x SATA III 6Gb/s ports
2 x USB 2.0 headers
1 x IPMB connector
1 x TPM header
1 x Patsburg-A SKU Select connector
1 x RAID select connector
1 x Serial header
1 x CMOS battery
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x HDD Status LED
2 x LAN LEDs
1 x Reset button
1 x NMI button
1 x ID button with LED
1 x System status LED
1 x HDD Status LED
2 x LAN LEDs
1 x Reset button
1 x NMI button
Rear I/O
2 x USB 2.0
1 x Serial
1 x VGA
5 x RJ45 ports
1 x ID button with LED
1 x Serial
1 x VGA
5 x RJ45 ports
1 x ID button with LED
Backplane Board
N/A
TPM
1 x TPM header
Power Supply[#1]
2 x 650W redundant PSU
80 PLUS Platinum
380V DC
220V AC in option
80 PLUS Platinum
380V DC
220V AC in option
System Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2003 R2 + SP1 (x64)
Windows Server 2008 SP2 (x86/x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 SP2 (x86/x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
System Fans
6 x 40x40x56mm (16'000rpm)
Operating Properties
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C
Weight
~17.5 kg
Part Numbers
Barebone: 6NR12PEMR-00
Rail kit: 25HB2-074000-I0R
Rail kit: 25HB2-074000-I0R
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
