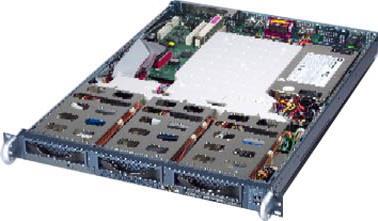

GS-SR113Legacy | Software updates supported
- Dimensions: 19"W x 1.73"H x 23"D (1U)
- One Easy-Swap ATA-100 Drive Bay for OS Boot Drive
- Two Hot-Swap ATA- 133 Drive Bays with IDE RAID 0, 1
- Intel® 845D, ICH2, ATI® Rage XL 8MB
- Intel® P4 Processor (Socket 478/400MHz FSB/2.2GHZ+)
- Max. 2GB Un-Buffered (ECC) DDR-266 Memory in 2 Angle DIMM Slots
- Dual Intel® 82550PM 10/100Mbps Fast Ethernet with Advanced Software Functions
- 1 PCI 32-Bit/33MHz Full-Height Slot
- Promise® PDC20276 Dual ATA-133 Channels with IDE RAID 0,1
- Winbond® W83910F BMC Chip with IPMI 1.0 Support
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Single Intel® P4 Northwood Processor up to 2.20 Ghz and above
- 400 Mhz FSB
Chipset
- Intel® Brookdale 845 D (MCH+ICH2)
LAN
- Dual Intel® 82550PM Ethernet controllers
- Supports Wake on LAN (WOL)
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- Fast EtherChannel (FEC)
Video
- Integrated ATI Rage XL graphics acceleration with 8 MB RAM
RAID
- Supports Raid 0,1
Expansion Slots
- 1 full-length 32bit/33 MHz PCI slot
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
