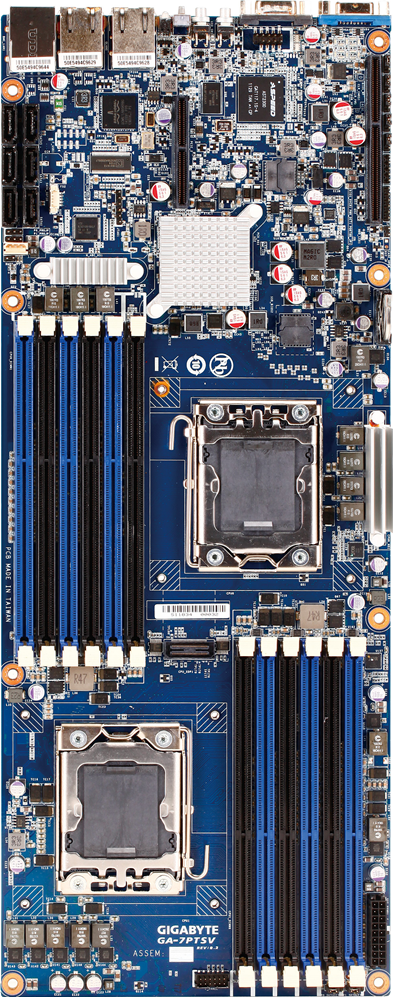

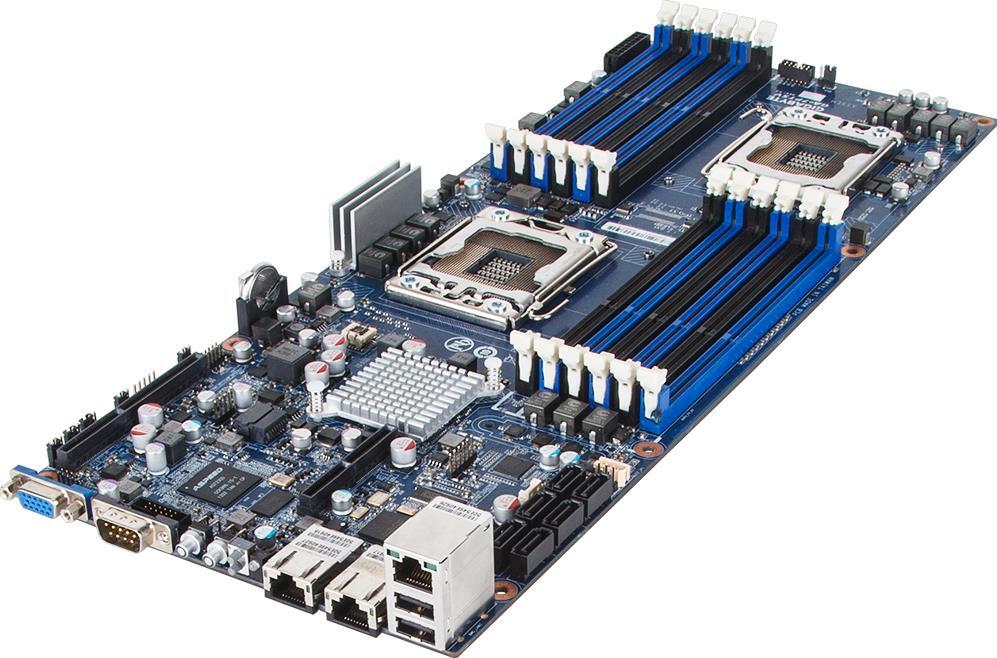

GA-7PTSV
Legacy | Firmware updates supportedIntel® C602 chipset
Especificación
Form Factor
Proprietary half-width form factor
165W x 415D (mm)
165W x 415D (mm)
CPU
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
Socket
2 x LGA 1356
Chipset
Intel® C602
Memory
12 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only
LAN
2 x GbE LAN ports (Broadcom® BCM5720)
1 x 10/100 management LAN
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
4 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) slot
1 x Low profile PCIe x16 (Gen3 x16 bus) slot
1 x Low profile PCIe x16 (Gen3 x16 bus) slot
Internal I/O
1 x 9-pin ATX 12V power connector
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x IPMB header
1 x Front panel header
1 x USB 2.0 header
1 x Serial header
1 x VGA header
1 x SPGIO header
1 x PMBus header
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x IPMB header
1 x Front panel header
1 x USB 2.0 header
1 x Serial header
1 x VGA header
1 x SPGIO header
1 x PMBus header

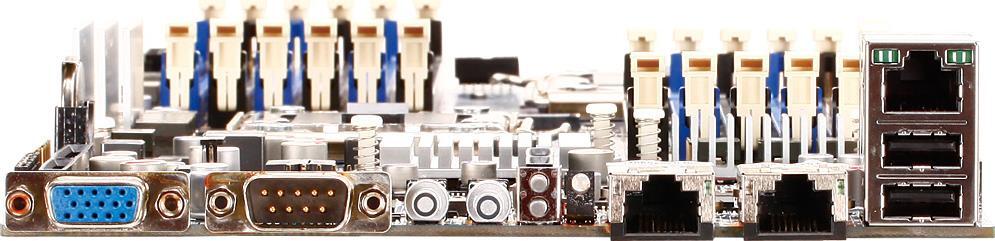

Rear I/O
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x Power button
1 x ID button with LED
1 x NMI button
1 x BMC reset button
1 x Power status LED
1 x Serial
1 x VGA
3 x RJ45
1 x Power button
1 x ID button with LED
1 x NMI button
1 x BMC reset button
1 x Power status LED
TPM
-
OS Compatibility
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 SP1 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 R2 SP1 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 9-pin ATX 12V power connector
Retail Packaging Content
-
Reference Numbers
-
