• Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Hybrid 8+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4:4*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks:GbE LAN & Wi-Fi 802.11ac
  • Extended Connectivity:Rear USB-C® 20Gb/s, DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
OVERVIEW
PERFORMANCE
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE

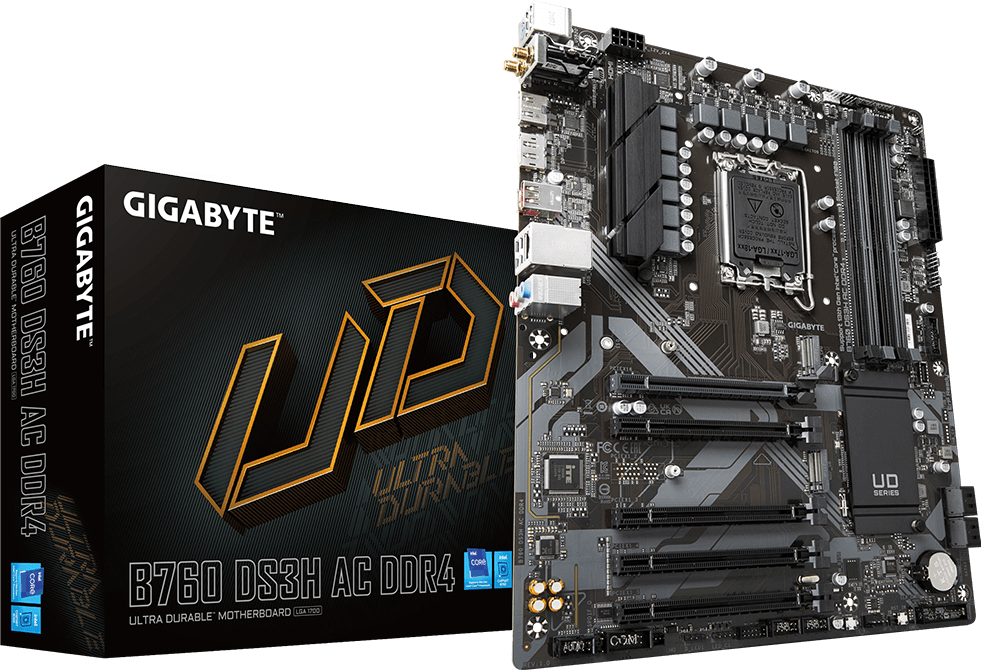

B760 DS3H AC DDR4
OVERVIEW
PERFORMANCE
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE
Performance
Connectivity
1
8 Solid Pin CPU Power Connector
2
Full PCI Express 4.0 Design
  1. 1*PCIe 4.0 x16 slot
  2. 2*PCIe 4.0 x4 M.2 Connectors
3
Audio Solution
  1. 8-ch HD Audio
  2. Audio Noise Guard
  3. High-End Audio Capacitors
4
8+2+1 Phases Hybrid Digital VRM Design
  1. 6-Layer & PCIe 4.0 Ready PCB
  2. Premium Choke and Capacitor
5
Support 13th and 12th Gen. Intel® Core™ Processors
6
Dual Channel DDR4, 4 DIMMs
7
PCIe EZ-Latch
8
Multi-key
  1. Multiple function set by BIOS
  2. Reset/RGB Switch/Direct to BIOS/Safe Mode
9
Q-FLASH Plus Onboard Button
1
Intel® WIFI 802.11ac & BT with High-Gain Antenna
2
HDMI
3
DisplayPort
4
Rear USB 3.2 Gen 2x2 Type-C®
5
GbE LAN
6
Front USB 3.2 Gen 1 Type-C® for Connecting devices
7
4*SATA 6Gb/s
8
RGB FUSION
  1. 2*Addressable LED Header
  2. 2*RGB LED Header
UNPARALLELED PERFORMANCE
PERFORMANCE
Hybrid Digital VRM Design
PCIe 4.0 Design
DDR4 XMP
Dual PCIe 4.0 x4 M.2
PerDrive
Smart Fan 6
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
8+2+1 Phases Hybrid Digital VRM Design
• 8+2+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation
GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
1. PCIe 4.0 M.2 Slot
2. PCIe 4.0 x16 Slot
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
Max Turbo
Optimization
Spec Enhance
E-Core™ Disable
Max Turbo allows Intel® 13th Gen. Core™ CPU to run at Maximum Turbo Boost speed.
The Optimization mode enables Intel® 13th Gen. Core™ CPU to balance between high performance and low temperature.
The Spec Enhance mode enables Intel® 13th Gen. Core™ CPU to run at high performance under a lower temperature setting.
The E-Core™ Disable mode allocates CPU resources to P-core exclusively to boost its gaming performance, while diminishing the overall power consumption of processors.
* Features and function vary depending on Motherboard and CPU specifications, image is for reference only.
CONNECTIVITY
CONNECTIVITY
802.11ac Wi-Fi
GbE LAN
Rear USB-C® 20Gb/s
Hi-Fi Audio
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.
802.11ac Wi-Fi
The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also support BLUETOOTH 4.2.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Connecting the Future - USB 3.2 Gen 2x2 Type-C®
Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
PERSONALIZATION
PERSONALIZATION
UEFI BIOS
GIGABYTE Control Center
Multi-Key
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
  1. Unified software platform for all Gigabyte supported products
  2. Intuitive user interface for an eased experience
  3. Modularized control components only for installed hardware
  4. Auto update function to keep system up to date and support future products
Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
  • RGB Switch
    Turn off all lighting effect on motherboard.
  • Direct-To-BIOS
    Boot into BIOS menu directly without pressing any keyboard button.
  • Safe Mode
    Boot into BIOS safe mode to change specific option without losing other BIOS settings.
* Photo for reference only.
ULTRA DURABLE
ULTRA DURABLE
DIY Friendly
Q-Flash Plus
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
* Photo for reference only.
STEP 1.
Plug 24pin & 8pin power supply cable on motherboard
STEP 2.
Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3.
Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
