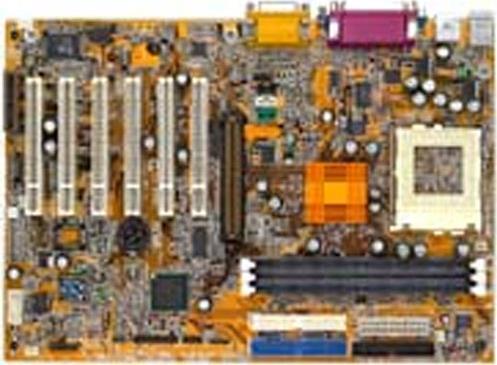

GA-6OXM7 (Rev. 3.x)

SpecificaţiiSuportNoutăţi/PremiiWhere to Buy

Specificaţii

  • CPU
    1. Socket 370 for Intel® FC-PGA Pentium®III or other compatible processors
    2. AUTO detect CPU voltage
    3. Supports Auto/66/100/133 MHz FSB & other clocks by Gigabyte EasyTune III Utility
  • Chipset
    1. Intel® 815 AGPset
    2. iTE IT8712F-A I/O & health chip
    3. AC97 codec
  • Memorie
    1. 32MB to 512MB memory size
    2. 3 x DIMM sockets
    3. Supports 32/64/128/256/512 MB SDRAM module
  • Sloturi de expansiune
    1. 1 x AGP slot supports 2X/4X mode AGP card or supports AIMM
    2. 1 x AMR (Audio Modem Riser) slot with reverse direction
    3. 6 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controller I/O
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM (1 by optional cable) , 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board (with 4 USB layout)
    5. Provides header for Smart Card Reader
    6. IrDA header ready
    7. Front panel audio header ready
    8. 20 pin IA port header (Optional)
  • Monitorizare H/W
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors; Case open detection
    3. System health status detect & report by BIOS, LDCM®
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. 4Mbit flash RAM
    2. BIOS with enhanced ACPI feature for PC99/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.5*21.5cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. Gigabyte EasyTune III overclock Utility
    3. Intel® LDCM® utility
    4. Intel® 815 patch utility for Windows 95/98
  • Alte caracteristici
    1. Includes Wake-On-LAN header (WOL)
    2. Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard, USB & game overcurrent protection
  • Alimentare
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & Switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support
  • CPU
    1. Socket 370 for Intel® FC-PGA Pentium®III or other compatible processors
    2. AUTO detect CPU voltage
    3. Supports Auto/66/100/133 MHz FSB & other clocks by Gigabyte EasyTune III Utility
  • Chipset
    1. Intel® 815 AGPset
    2. iTE IT8712F-A I/O & health chip
    3. AC97 codec
  • Memorie
    1. 32MB to 512MB memory size
    2. 3 x DIMM sockets
    3. Supports 32/64/128/256/512 MB SDRAM module
  • Sloturi de expansiune
    1. 1 x AGP slot supports 2X/4X mode AGP card or supports AIMM
    2. 1 x AMR (Audio Modem Riser) slot with reverse direction
    3. 6 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controller I/O
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM (1 by optional cable) , 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board (with 4 USB layout)
    5. Provides header for Smart Card Reader
    6. IrDA header ready
    7. Front panel audio header ready
    8. 20 pin IA port header (Optional)
  • Monitorizare H/W
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors; Case open detection
    3. System health status detect & report by BIOS, LDCM®
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. 4Mbit flash RAM
    2. BIOS with enhanced ACPI feature for PC99/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.5*21.5cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. Gigabyte EasyTune III overclock Utility
    3. Intel® LDCM® utility
    4. Intel® 815 patch utility for Windows 95/98
  • Alte caracteristici
    1. Includes Wake-On-LAN header (WOL)
    2. Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard, USB & game overcurrent protection
  • Alimentare
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & Switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support
