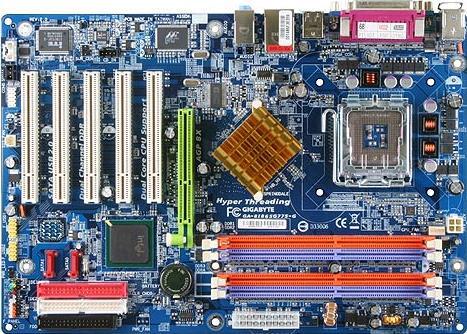

GA-8I865G775-G (Rev. 1.x)

DescriereSpecificaţiiSuportNoutăţi/PremiiWhere to Buy

Specificaţii

  • CPU
    1. LGA 775 for Intel® Pentium® 4/Pentium® D processor
  • Front Side Bus
    1. 800 / 533 MHz FSB
  • Chipset
    1. North Bridge : Intel® 865G
    2. South Bridge : Intel® ICH5
    3. Realtek ALC653
    4. Marvell 8001 chip (10/100/1000Mbit)
  • Memorie
    1. Type: Dual Channel DDR 400 / 333 / 266 support
    2. Max capacity: 4 GB
    3. DIMM slots: 4
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Sloturi de expansiune
    1. 1 AGP slot 4X/8X (1.5V)
    2. 5 PCI slots
  • Conectori interni I/O
    1. 1 20-pin ATX power connector
    2. 1 4-pin ATX 12V power connector
    3. 1 floppy connector
    4. 2 IDE connectors
    5. 2 SATA connectors
    6. 1 CPU fan connector
    7. 1 system fan connector
    8. 1 front panel connector
    9. 1 front audio connector
    10. 1 COMB connector
    11. 1 CD In connector
    12. 1 AUX In connector
    13. 1 Surround Center connector
    14. 1 SPDIF Out connector
    15. 1 power LED connector
    16. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
  • Conectori panou spate
    1. 1 PS/2 keyboard port
    2. 1 PS/2 mouse port
    3. 1 parallel port
    4. 1 serial port (COMA)
    5. 1 VGA port
    6. 4 USB 2.0/1.1 ports
    7. 1 RJ-45 port
    8. 3 audio jacks (Line In / Line Out / MIC In)
  • Monitorizare H/W
    1. System voltage detection
    2. CPU temperature detection
    3. CPU / System fan speed detection
    4. CPU warning temperature
    5. CPU System fan failure warning
    6. CPU smart fan control
  • BIOS
    1. 1 4Mbit flash ROM
    2. Use of licensed AWARD BIOS
  • Form Factor
    1. ATX
    2. 30.5cm x 21cm
  • Alte caracteristici
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune 5
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Xpress BIOS Rescue
  • Observație
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.
  • CPU
    1. LGA 775 for Intel® Pentium® 4/Pentium® D processor
  • Front Side Bus
    1. 800 / 533 MHz FSB
  • Chipset
    1. North Bridge : Intel® 865G
    2. South Bridge : Intel® ICH5
    3. Realtek ALC653
    4. Marvell 8001 chip (10/100/1000Mbit)
  • Memorie
    1. Type: Dual Channel DDR 400 / 333 / 266 support
    2. Max capacity: 4 GB
    3. DIMM slots: 4
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Sloturi de expansiune
    1. 1 AGP slot 4X/8X (1.5V)
    2. 5 PCI slots
  • Conectori interni I/O
    1. 1 20-pin ATX power connector
    2. 1 4-pin ATX 12V power connector
    3. 1 floppy connector
    4. 2 IDE connectors
    5. 2 SATA connectors
    6. 1 CPU fan connector
    7. 1 system fan connector
    8. 1 front panel connector
    9. 1 front audio connector
    10. 1 COMB connector
    11. 1 CD In connector
    12. 1 AUX In connector
    13. 1 Surround Center connector
    14. 1 SPDIF Out connector
    15. 1 power LED connector
    16. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
  • Conectori panou spate
    1. 1 PS/2 keyboard port
    2. 1 PS/2 mouse port
    3. 1 parallel port
    4. 1 serial port (COMA)
    5. 1 VGA port
    6. 4 USB 2.0/1.1 ports
    7. 1 RJ-45 port
    8. 3 audio jacks (Line In / Line Out / MIC In)
  • Monitorizare H/W
    1. System voltage detection
    2. CPU temperature detection
    3. CPU / System fan speed detection
    4. CPU warning temperature
    5. CPU System fan failure warning
    6. CPU smart fan control
  • BIOS
    1. 1 4Mbit flash ROM
    2. Use of licensed AWARD BIOS
  • Form Factor
    1. ATX
    2. 30.5cm x 21cm
  • Alte caracteristici
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune 5
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Xpress BIOS Rescue
  • Observație
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.

* Termenii HDMI, HDMI High-Definition Multimedia Interface, Imaginea comercială HDMI și Siglele HDMI sunt mărci comerciale sau mărci comerciale înregistrate ale HDMI Licensing Administrator, Inc.
* Materialele oferite aici sunt doar pentru referinţă. GIGABYTE îşi rezervă dreptul de a modifica sau revizui continutul oricând fără notificare prealabilă.
* Perfomanţa prezentată este bazată pe valorile teoretice maxime ale interfeţei de la vendorii respectivi de Chipset-uri sau de la organizaţiile ce au definit specificaţiile interfeţei. Perfomanţele reale pot varia în funcţie de sistem.
* Toate mărcile inregistrate şi logo-urile sunt proprietatea deţinătorilor respectivi.
* Datorită arhitecturii standard PC, o anumită cantitate de memorie este rezervată pentru sistem şi de aceea mărimea actuală a memoriei este mai mică decât cea indicată.
