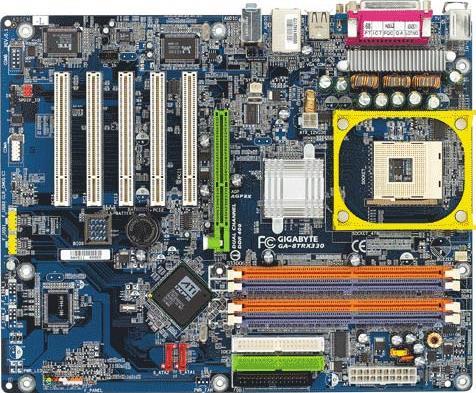

GA-8TRX330-L (Rev. 1.0)

DescriereSpecificaţiiSuportNoutăţi/PremiiWhere to Buy

Specificaţii

  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor with Hyper-Threading technology
  • Front Side Bus
    1. 800 / 533 / 400 MHz FSB
  • Chipset
    1. North bridge: ATI RX330
    2. South bridge: ATI SB300
    3. Realtek RTL8100C LAN chip
    4. Realtek ALC655 CODEC
  • Sloturi de expansiune
    1. 1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Conectori interni I/O
    1. 2 x Serial ATA ports
    2. 2 x UDMA ATA 100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports by cable)
    5. S/P DIF in/out connector
    6. 2 x cooling fan pin headers
    7. CD in connector
    8. 1 x COM port pin header
    9. 20-pin ATX Power connector
    10. 4-pin ATX 12V Power connector
  • Conectori panou spate
    1. 4 x USB 2.0/1.1 ports
    2. 1 x RJ45 LAN port
    3. 1 x LPT port
    4. 1 x COM port
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 2 x PS/2 ports (Keyboard/Mouse)
  • Monitorizare H/W
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for power-in voltage, CPU voltage, and fan speed
  • BIOS
    1. 2M bit flash ROM
  • Software bundle
    1. Norton Internet Security
      1. Norton Anti-Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Form Factor
    1. ATX
    2. 30.5 x 24.4 cm
  • Alte caracteristici
    1. Xpress3
    2. EasyTuneTM4
    3. @BIOS
    4. Q-FlashTM
  • Alimentare
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor with Hyper-Threading technology
  • Front Side Bus
    1. 800 / 533 / 400 MHz FSB
  • Chipset
    1. North bridge: ATI RX330
    2. South bridge: ATI SB300
    3. Realtek RTL8100C LAN chip
    4. Realtek ALC655 CODEC
  • Sloturi de expansiune
    1. 1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Conectori interni I/O
    1. 2 x Serial ATA ports
    2. 2 x UDMA ATA 100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports by cable)
    5. S/P DIF in/out connector
    6. 2 x cooling fan pin headers
    7. CD in connector
    8. 1 x COM port pin header
    9. 20-pin ATX Power connector
    10. 4-pin ATX 12V Power connector
  • Conectori panou spate
    1. 4 x USB 2.0/1.1 ports
    2. 1 x RJ45 LAN port
    3. 1 x LPT port
    4. 1 x COM port
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 2 x PS/2 ports (Keyboard/Mouse)
  • Monitorizare H/W
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for power-in voltage, CPU voltage, and fan speed
  • BIOS
    1. 2M bit flash ROM
  • Software bundle
    1. Norton Internet Security
      1. Norton Anti-Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Form Factor
    1. ATX
    2. 30.5 x 24.4 cm
  • Alte caracteristici
    1. Xpress3
    2. EasyTuneTM4
    3. @BIOS
    4. Q-FlashTM
  • Alimentare
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
