  1. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  2. Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1600 MHz
  3. Dual channel DDR2 1200 for remarkable system performance
  4. 2 PCI-E 2.0 x16 graphic interface with CrossFireXTM support for ultimate graphics performance
  5. 2 Gigabit Ethernet LAN with Teaming functionality
  6. DualBIOS solution gives a multiple security to the system
  7. Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
  8. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
  • Introduction

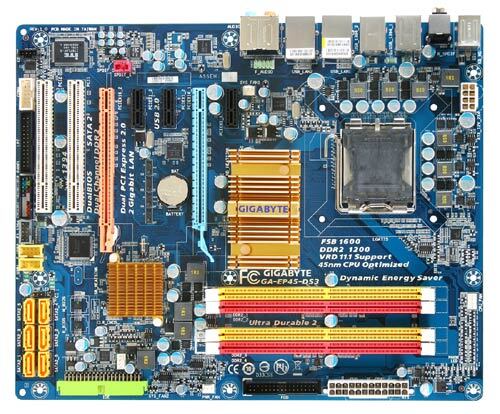

    Based on the new Intel P45 chipset, GA-EP45-DS3 delivers a record setting 1600MHz Front Side Bus for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1200MHz. GA-EP45-DS3 is equipped to support ATI CrossFireX™ Technology with dual PCI Express 2.0 x8 interfaces, delivering double the PCI Express bandwidth of 5 Gbit/s for the ultimate in extreme gaming performance. GA-EP45-DS3 also delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 2 which provide optimized power savings, ultra cooling for extreme system performance.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Smaller, Faster and More Efficient
    GA-EP45-DS3 motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.


  • Dual Channel DDR2 1333+ MHz
    Delivering native support for DDR2 memory up to 1333MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
    * DDR2 1333+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI-E 2.0 Graphic Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIe 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • ATI CrossFireX
    With support for ATI CrossFireX, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-EP45-DS3 allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.

    Attention: When attempting to enable ATI CrossfireX Technology on this board.In case of unable to get Crossfire Technology working normally, please make sure to use ATI graphic cards that have hardware Crossfire bridge.(Please refer to ATI official website for more Crossfire Technology supporting details: (http://ati.amd.com/technology/crossfire/charts.html)


  • Dynamic Energy Saver Advanced
    GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 6-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

    GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
    * The 6-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.


  • High Velocity 2X Bandwidth Boost
    he dual lan with teaming functionality enabled allows 2 single connections to act as 1 single connection for 2x bandwidth, improving overall throughput.

    prevents network downtime by transferring the workload from a failed port to a working port.

    receive side scaling balances the network traffic load evenly between 2 cpu cores in order to improve performance.

    adjusts power consumption automatically according to your lan cable lengths, up to 10% power savings.
  • Hardware Overvoltage Control ICs
    Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  • EasyTune6
    GIGABYTE a reproiectat de la zero utilitarul EasyTune6 pentru a face și mai ușoară administrarea și monitorizarea resurselor hardware cât și pentru ajustarea setărilor sistemului pentru obținerea de performanțe maxime. Fie că sunteți un overclocker entuziast sau un începător în computere, EasyTune6 vă ofera uneltele necesare pentru ajustarea rapidă și fără efort a sistemului.


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • Ultra Durable 2 -Designed with Top Quality Highly Efficient Components

    ultra cooling - low rds(on) mosfet design
    low rds(on) mosfets specially designed to produce lower switching resistance for faster electric current charging and discharging...more


    low power loss - ferrite core choke design
    ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency...more

    longer life - all-solid capacitor design
    solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors...more
  • 50,000 Hours Japanese Solid Capacitors
    GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more


    * 50000 hours of work time is calculated at 85℃ ambient temperature.
