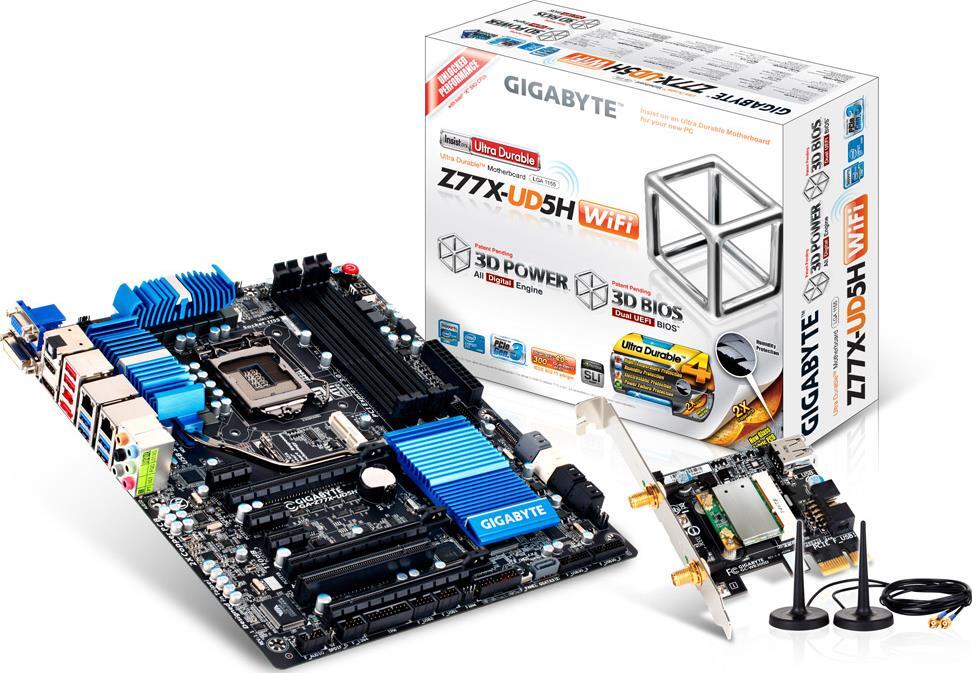

GA-Z77X-UD5H-WB WIFI (Rev. 1.1)

Rev. 1.1Rev. 1.0
Intel® Z77 Chipset
DescriereSpecificaţiiSuportNoutăţi/PremiiWhere to Buy

Specificaţii

  • CPU
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
  • Chipset
    1. Intel® Z77 Express Chipset
  • Memorie
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Grafică onboard
  • Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    4. 1 x DisplayPort, supporting a maximum resolution of 2560x1600p
  • Audio
    1. Realtek ALC898 codec
    2. Support for X-Fi Xtreme Fidelity® and EAX® Advanced HD™ 5.0 technologies
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
  • LAN
    1. 1 x Atheros GbE LAN chip (10/100/1000 Mbit) (LAN1)
    2. 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN2)
  • Wireless Communication module
    1. Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band
    2. Bluetooth 4.0, 3.0+HS, 2.1+EDR
  • Sloturi de expansiune
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.

    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot is available only when an Intel 22nm (Ivy Bridge) CPU is installed.
      * The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode.

    4. 3 x PCI Express x1 slots
      (All PCI Express x1 slots conform to PCI Express 2.0 standard.)

    5. 1 x PCI slot
  • Tehnologie multi-grafică
    1. Support for AMD CrossFireX™ / NVIDIA SLI technology
  • Interfață de stocare
  • Chipset:
    1. 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
    2. 4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices
    3. 1 x mSATA connector
      * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
    2 x Marvell 88SE9172 chips:
    1. 3 x SATA 6Gb/s connectors (GSATA3 6/7/8) supporting up to 3 SATA 6Gb/s devices
    2. 1 x eSATA 6Gb/s connector on the back panel supporting up to 1 SATA 6Gb/s device
    3. Support for RAID 0 and RAID 1
  • USB
  • Chipset:
    1. Up to 2 USB 3.0/2.0 ports (available through the internal USB headers)
    2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    Chipset + 2 VIA USB Hubs:
    1. Up to 8 USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
      * In Windows XP, the Intel USB 3.0 ports and VIA USB HUB can support up to USB 2.0 transfer speed.
      * Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the Intel USB 3.0 controller driver is installed.
  • IEEE 1394
  • VIA VT6308 chip:
    1. Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)
  • Conectori interni I/O
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x PCIe power connector
    4. 5 x SATA 6Gb/s connectors
    5. 4 x SATA 3Gb/s connectors
    6. 1 x mSATA connector
    7. 1 x CPU fan header
    8. 4 x system fan headers
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x S/PDIF Out header
    12. 3 x USB 3.0/2.0 headers
    13. 2 x USB 2.0/1.1 headers
    14. 1 x Clear CMOS jumper
    15. 1 x Trusted Platform Module (TPM) header
    16. 1 x power button
    17. 1 x reset button
    18. 1 x Clear CMOS button
    19. 1 x heatsink LED power connector
    20. 1 x BIOS Switch
    21. Voltage Measurement Points
  • Conectori panou spate
    1. 1 x D-Sub port
    2. 1 x DVI-D port
    3. 1 x optical S/PDIF Out connector
    4. 1 x HDMI port
    5. 1 x DisplayPort
    6. 1 x eSATA 6Gb/s connector
    7. 4 x USB 3.0/2.0 ports
    8. 2 x USB 2.0/1.0 ports
    9. 1 x IEEE 1394a port
    10. 2 x RJ-45 ports
    11. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
  • Controller I/O
    1. iTE I/O Controller Chip
  • Monitorizare H/W
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Caracteristici unice
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Install
    4. Support for Xpress Recovery2
    5. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    6. Support for eXtreme Hard Drive (X.H.D)
    7. Support for Auto Green
    8. Support for ON/OFF Charge
    9. Support for Q-Share
    10. Support for 3D Power
    11. Support for EZ Setup
    12. Support for LAN Optimizer (Intelligent optimization network management tool)
  • Software bundle
    1. Norton Internet Security (OEM version)
    2. Intel® Rapid Start Technology
    3. Intel® Smart Connect Technology
    4. Intel® Smart Response Technology
    5. LucidLogix Virtu MVP
      * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
  • Sistem de operare
    1. Support for Microsoft® Windows 8/7/XP
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Observație
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

    • CPU
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
      2. L3 cache varies with CPU
      (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
    • Chipset
      1. Intel® Z77 Express Chipset
    • Memorie
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Grafică onboard
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
      4. 1 x DisplayPort, supporting a maximum resolution of 2560x1600p
    • Audio
      1. Realtek ALC898 codec
      2. Support for X-Fi Xtreme Fidelity® and EAX® Advanced HD™ 5.0 technologies
      3. High Definition Audio
      4. 2/4/5.1/7.1-channel
      5. Support for S/PDIF Out
    • LAN
      1. 1 x Atheros GbE LAN chip (10/100/1000 Mbit) (LAN1)
      2. 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN2)
    • Wireless Communication module
      1. Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band
      2. Bluetooth 4.0, 3.0+HS, 2.1+EDR
    • Sloturi de expansiune
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

      2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
        * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.

      3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        * The PCIEX4 slot is available only when an Intel 22nm (Ivy Bridge) CPU is installed.
        * The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode.

      4. 3 x PCI Express x1 slots
        (All PCI Express x1 slots conform to PCI Express 2.0 standard.)

      5. 1 x PCI slot
    • Tehnologie multi-grafică
      1. Support for AMD CrossFireX™ / NVIDIA SLI technology
    • Interfață de stocare
    • Chipset:
      1. 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
      2. 4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices
      3. 1 x mSATA connector
        * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
      4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
        * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
      2 x Marvell 88SE9172 chips:
      1. 3 x SATA 6Gb/s connectors (GSATA3 6/7/8) supporting up to 3 SATA 6Gb/s devices
      2. 1 x eSATA 6Gb/s connector on the back panel supporting up to 1 SATA 6Gb/s device
      3. Support for RAID 0 and RAID 1
    • USB
    • Chipset:
      1. Up to 2 USB 3.0/2.0 ports (available through the internal USB headers)
      2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      Chipset + 2 VIA USB Hubs:
      1. Up to 8 USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
        * In Windows XP, the Intel USB 3.0 ports and VIA USB HUB can support up to USB 2.0 transfer speed.
        * Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the Intel USB 3.0 controller driver is installed.
    • IEEE 1394
    • VIA VT6308 chip:
      1. Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)
    • Conectori interni I/O
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x PCIe power connector
      4. 5 x SATA 6Gb/s connectors
      5. 4 x SATA 3Gb/s connectors
      6. 1 x mSATA connector
      7. 1 x CPU fan header
      8. 4 x system fan headers
      9. 1 x front panel header
      10. 1 x front panel audio header
      11. 1 x S/PDIF Out header
      12. 3 x USB 3.0/2.0 headers
      13. 2 x USB 2.0/1.1 headers
      14. 1 x Clear CMOS jumper
      15. 1 x Trusted Platform Module (TPM) header
      16. 1 x power button
      17. 1 x reset button
      18. 1 x Clear CMOS button
      19. 1 x heatsink LED power connector
      20. 1 x BIOS Switch
      21. Voltage Measurement Points
    • Conectori panou spate
      1. 1 x D-Sub port
      2. 1 x DVI-D port
      3. 1 x optical S/PDIF Out connector
      4. 1 x HDMI port
      5. 1 x DisplayPort
      6. 1 x eSATA 6Gb/s connector
      7. 4 x USB 3.0/2.0 ports
      8. 2 x USB 2.0/1.0 ports
      9. 1 x IEEE 1394a port
      10. 2 x RJ-45 ports
      11. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
    • Controller I/O
      1. iTE I/O Controller Chip
    • Monitorizare H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Caracteristici unice
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress Install
      4. Support for Xpress Recovery2
      5. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      6. Support for eXtreme Hard Drive (X.H.D)
      7. Support for Auto Green
      8. Support for ON/OFF Charge
      9. Support for Q-Share
      10. Support for 3D Power
      11. Support for EZ Setup
      12. Support for LAN Optimizer (Intelligent optimization network management tool)
    • Software bundle
      1. Norton Internet Security (OEM version)
      2. Intel® Rapid Start Technology
      3. Intel® Smart Connect Technology
      4. Intel® Smart Response Technology
      5. LucidLogix Virtu MVP
        * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
    • Sistem de operare
      1. Support for Microsoft® Windows 8/7/XP
    • Form Factor
      1. ATX Form Factor; 30.5cm x 24.4cm
    • Observație
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
