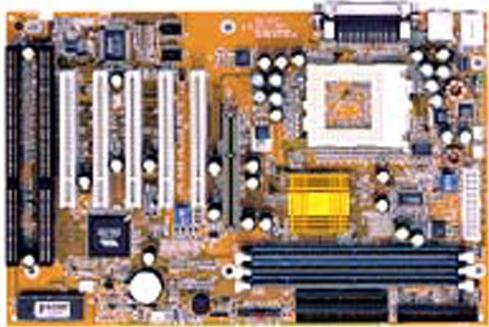

GA-6VX7

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Procesor
    1. Socket 370 for Intel® PPGA Celeron™ Processor
    2. Clock Ratio 3.0~9.5 for future Processor support 6
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
  • Čipset
    • VIA Apollo Pro AGPset
    1. Winbond 83977 I/Oset
  • Memorija
    1. 8MB to 768MB DRAM size
    2. 3 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Slotovi za proširenje
    1. 1 x AGP Slot Supports 66/133 MHz speeds
    2. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 2 x ISA Slot
  • I/O kontroler
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports onboard
    4. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status (optional)
  • Veličina
    1. ATX , 4 layer PCB (30.5*20.0cm)
  • Driver
    1. VIA Ultra DMA/33 Bus Master IDE Driver
    2. VIA AGP GART VxD & Power Management Controller Driver
    3. VIA Patch 95 Driver
    4. VIA Windows 98 IRQ Routing Driver
  • Other Features
    1. Includes Wake-On-LAN Header (WOL)
    2. Supports Internal / External modem wake on
    3. 3 Fan Power & Speed Detection Connectors
    4. Case Open Detection
    5. Poly fuse for keyboard, USB, VGA & Game overcurrent protection
  • Power
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem(COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. 3 Level ACPI LED Support
  • Procesor
    1. Socket 370 for Intel® PPGA Celeron™ Processor
    2. Clock Ratio 3.0~9.5 for future Processor support 6
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
  • Čipset
    • VIA Apollo Pro AGPset
    1. Winbond 83977 I/Oset
  • Memorija
    1. 8MB to 768MB DRAM size
    2. 3 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Slotovi za proširenje
    1. 1 x AGP Slot Supports 66/133 MHz speeds
    2. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 2 x ISA Slot
  • I/O kontroler
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports onboard
    4. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status (optional)
  • Veličina
    1. ATX , 4 layer PCB (30.5*20.0cm)
  • Driver
    1. VIA Ultra DMA/33 Bus Master IDE Driver
    2. VIA AGP GART VxD & Power Management Controller Driver
    3. VIA Patch 95 Driver
    4. VIA Windows 98 IRQ Routing Driver
  • Other Features
    1. Includes Wake-On-LAN Header (WOL)
    2. Supports Internal / External modem wake on
    3. 3 Fan Power & Speed Detection Connectors
    4. Case Open Detection
    5. Poly fuse for keyboard, USB, VGA & Game overcurrent protection
  • Power
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem(COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. 3 Level ACPI LED Support

* Izrazi HDMI, visokoločljivostni večpredstavnostni vmesnik HDMI (High-Definition Multimedia Interface), trgovska podoba HDMI in logotipi HDMI so blagovne znamke ali registrirane blagovne znamke družbe HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
