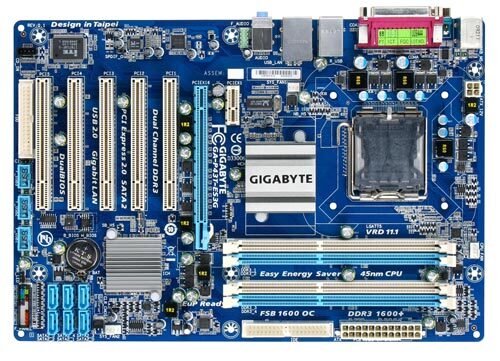

GA-P43T-ES3G (rev. 1.3)
Intel® P43 + ICH10 Chipset
- Revolution energy saving design with Easy Energy Saver technology
- 3X USB power delivery for greater compatibility and extra power for USB devices
- Supports 45nm Intel® Core 2™ multi-core processors with FSB 1600 (O.C.) MHz
- Dual channel DDR3 1600 for remarkable system performance
- Ultimate graphics performance with PCI-E x16 2.0 interface
- Integrated high speed SATA 3Gb/s
- Features high speed Gigabit Ethernet connection
- 8 channel High definition audio
Based on the new Intel P43 chipset, GA-P43T-ES3G delivers a record setting 1600MHz Front Side Bus by overclocking for the latest Intel® Core™ 2 multi-core processors, including 45nm CPUs. With supporting dual channel DDR3 up to 1600 MHz, GA-P43T-ES3G motherboard provides the highest levels of performance and maximum overclocking potential. GA-P43T-ES3G delivers several advanced GIGABYTE innovations including Easy Energy Saver, DualBIOS design which provide optimized power savings, ultra cooling and ultra safe data protection.
On/Off Charge TechnologyGIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
3x USB Power BoostGIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
GIGABYTE innovative technology- Easy Energy SaverGIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with Intel's highly efficient 45nm CPU's, Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.
Qualified for Windows® 7The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
Smaller, Faster and More EfficientGA-G41MT-ES2H motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.
DDR3 1600+ SupportDelivering native support for DDR3 memory up to1600+MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
PCI-E 2.0 Graphics InterfacePCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
Solid Capacitor for CPU VRMStable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
GREEN EthernetAdjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.
EasyTune6GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
DualBIOS™ - Patented Dual Hardware BIOS ProtectionDualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
