QBiX-Pro-TGLA1115G4EH-A1
Industrial system with Intel® Core™ i3-1115G4E Processor
- System Size : 178W x 125D x 52.7H (mm)
- Intel® Core™ i3-1115G4E Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x HDMI for Dual display
- 2 x GbE LAN Ports
-
(For more product information, please contact us at sales@gigaipc.com)
Specifications
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
CPU
Intel® Core™ i3-1115G4E Processor
10nm SuperFin, 2 cores, 4 threads, up to 3.9 GHz
10nm SuperFin, 2 cores, 4 threads, up to 3.9 GHz
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Support Dual Channel DDR4 3200 MHz memory modules
LAN
2 x GbE LAN ports (Intel® i219V and Intel® i211AT)
Video
Integrated Graphics Processor - Intel® UHD Graphics for 11th Gen Intel® Processors:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

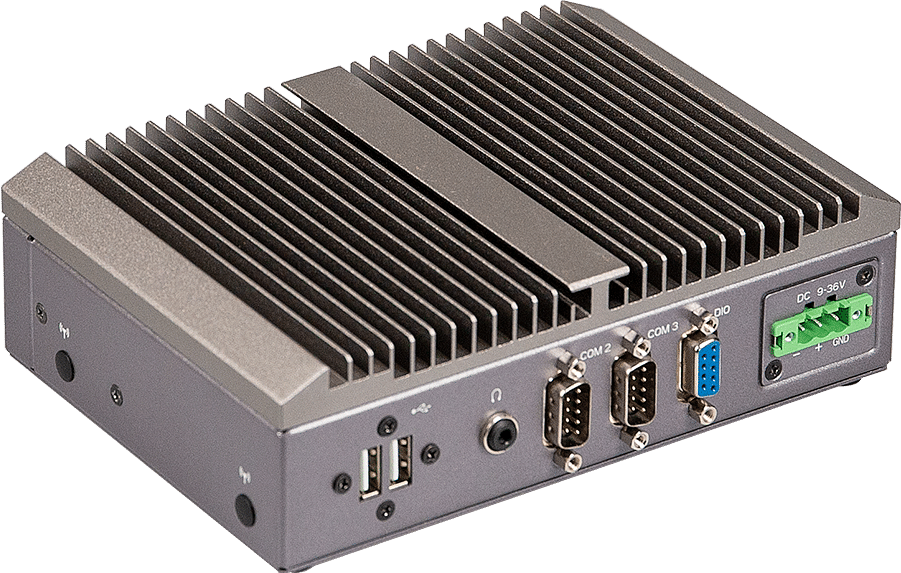

Rear I/O
2 x USB 2.0
2 x COM Ports (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x 3-pin Terminal block
2 x COM Ports (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x 3-pin Terminal block
Packaging Content
Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs
Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N:25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N:25ST3-200086-T5R)
SATA Cable x 1 (P/N:25CRI-070000-S9R)
Terminal Blocks Male Plug x 1 (P/N:25IO0-5ESDV0-D2R)
Packing Capacity: 5pcs
Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N:25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N:25ST3-200086-T5R)
SATA Cable x 1 (P/N:25CRI-070000-S9R)
Terminal Blocks Male Plug x 1 (P/N:25IO0-5ESDV0-D2R)
Ordering Information
6BQP1115AMR-SI (Box Packing)
Storage
1 x 2.5” HDD/SSD (SATA 6Gb/s)
Front I/O
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
Dimension
178W x 125D x 52.7H(mm)
Side I/O
2 x External Antenna Holes (Optional)
