Features

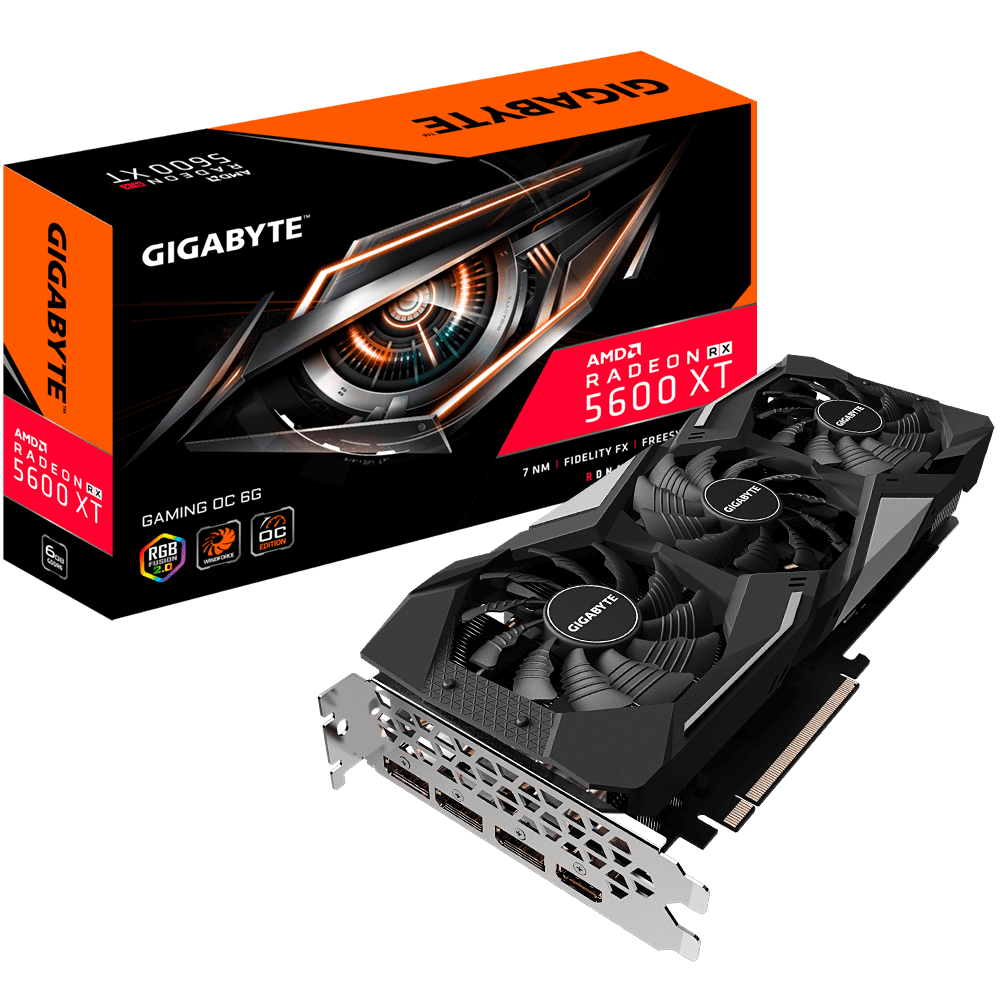

Powered by AMD Radeon™ RX 5600 XT
Integrated with 6GB GDDR6 192-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devices
Metal Back Plate
PCI-Express 4.0 Support


Core Clock
Boost Clock* : up to 1620 MHz (Reference card: 1560 MHz)
Game Clock* : up to 1560 MHz (Reference card: 1375 MHz)

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

ALTERNATE SPINNING

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

ALTERNATE SPINNING

Smooth Airflow

better heat dissipation

STANDARD SPINNING

Turbulent Airflow

worse heat dissipation

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH GPU

The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE

The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

CYCLING
Smoothly cycles through all colors

CONSISTENT
Choose a color for static light

FLASH
Choose a color for flash effect

DUAL FLASH
Choose a color for double flash effect

BREATHING
Choose a color to fade in and out

BUILT STRONG

EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

POWER INDICATOR

The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

Light on :
power cable disconnected

Light off :
stable power supply

Blinking :
abnormal power supply

PCI-E 4.0 SUPPORT

Gigabyte Radeon RX 5600 XT GAMING OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Protection Metal Back Plate

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

IN TOTAL COMMAND

The interface and functionality of the software is subject to each model.

AORUS Engine

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

(*Click the logo for more information)



FOOTNOTES
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

* All the images in this page are for illustration only.


* คำว่ำ HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress และโลโก้ HDMI เป็ นเคร ื่องหมำยกำรค้ำหรือเครื่องหมำยกำรค้ำจดทะเบียนของ HDMI Licensing Administrator, Inc.
*รายละเอียดสเปค และคุณลักษณะต่างๆ ของผลิตภัณฑ์อาจแตกต่างกันไปแต่ละประเทศ เราจึงขอแนะนำให้ท่านตรวจสอบรายละเอียดเหล่านี้กับตัวแทนจำหน่ายในประเทศของท่าน สีของผลิตภัณฑ์อาจแตกต่างจากที่ท่านเห็น อันเนื่องมาจากหลายสาเหตุ เช่น การตั้งค่าจอมอนิเตอร์ที่แตกต่างกันไป ถึงแม้ว่าเราจะพยายามนำเสนอข้อมูลที่ครอบคลุมและแม่นยำที่สุดก็ตาม ดังนั้นเราจึงขอสงวนสิทธิ์ในการปรับเปลี่ยนหรือแก้ไขโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
* GIGABYTE graphics cards, except those labeled “Mining Series”, are intended only for use with desktop PCs. Other types of use, such as blockchain computing or cryptocurrency mining, will render the product warranty void.
