• Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  • Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1600 MHz
  • Advanced power phase design with virtual 12 power phases to provides highly efficient operation for 45nm CPU
  • Dual channel DDR2 1333+ for remarkable system performance
  • Embedded 2 power phases for NB chipset and memory power to excel at power efficiency
  • 2 PCI-E 2.0 x16 graphic interface plus 2 PCI-E x4 with CrossFireX™ support for ultimate graphics performance
  • Built-in TPM chip with 2048bits encryption to highest level digital data protection
  • Smart Backup provides data backup solution with 4 serial ATA device attachment from 2 hardware RAID chip
  • Diagnostic LED and ACPI LEDs on board to display system and power status
  • 4 Gigabit Ethernet LAN with Teaming functionality
  • Supports Dolby Home Theater® audio to create a stunning surround sound listening experience.
  • Quad BIOS solution gives a multiple security to the system
  • Power/reset/Clr CMOS onboard button for easily operation on the workbench
  • Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
  • Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
  • Introduction

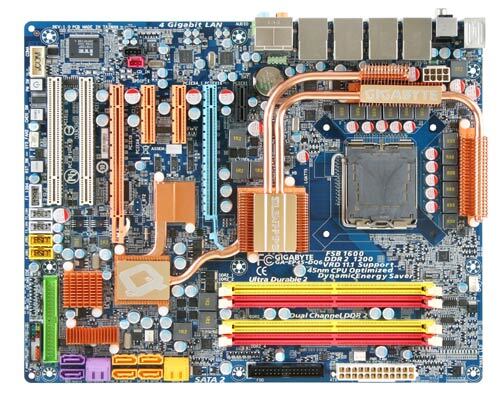

    Based on the new Intel P45 chipset, GA-EP45-DQ6 delivers a record setting 1600MHz Front Side Bus for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1333+MHz, GA-EP45-DQ6 motherboard provides the highest levels of performance and maximum overclocking potential. In additional, GA-EP45-DQ6 is further equipped to support ATI CrossFireX™ Technology with dual PCI Express 2.0 x8 interfaces, delivering double the PCI Express bandwidth of 5 Gbit/s for the ultimate in extreme gaming performance. GA-EP45-DQ6 delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 2, Ultra TPM design which provide optimized power savings, ultra cooling and ultra secure data protection.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Smaller, Faster and More Efficient
    GA-P43-ES3G motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.


  • Dual Channel DDR2 1333+ MHz
    ส่ง มอบประสบการณ์ความแรงด้วย DDR2 memory ความเร็วสูงถึง 1333MHz. GIGABYTE Ultra Durable 3 series ช่วยให้ผู้ใช้งานสามารถสัมผัสหน่วยความจำความเร็วสูงได้อย่างเหนือระดับ พร้อมบริโภคพลังงานต่ำ แต่ให้ประสิทธิภาพในการทำงานสูง สำหรับ applications ที่ต้องการความละเอียดสูง โดยเฉพาะระบบ 3D games...
    * DDR2 1333+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI-E 2.0 Graphics Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • Multi-display support with ATI CrossFireX™
    H55M-D2Hพร้อมส่งมอบประสิทธิภาพสำหรับผู้ที่ชื่นชอบการเล่นเกมความละเอียดสูงด้วยการสนับสนุนการทำงานร่วมกับ ATI CrossFireX. (H55M-S2H รองรับเฉพาะ ATI CrossFireX เท่านั้น)..
    (H55M-D2H support software ATI CrossFireX only)
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Dolby Home Theater ให้พลังเสียงที่สมจริง เหมือนมีโรงหนังที่บ้าน เพิ่มประสบการณ์ไปกับระบบเสียง
    • สมบูรณ์แบบด้วย Vivid Surround Sound ไม่ว่าจะเป็นการเล่นเกม ดูหนัง หรือฟังเพลง ก็ยังให้เสียง สมจริง
    • มาพร้อมกับระบบปรับแต่งแสียงที่มีประสิทธิภาพอีกด้วย


  • Dynamic Energy Saver Advanced
    GIGABYTE ได้ออกแบบ Dynamic Energy Saver อีกครั้งที่ได้มีการปรับปรุงระบบประหยัดพลังงานใหม่ โดยออกแบบให้ผู้ใช้มีความง่ายในการใช้งานมากขึ้น, เปิดการใช้งานได้เร็วขึ้น,. GIGABYTE ได้เพิ่มประสิทธิภาพของระบบ Dynamic Energy Saver ให้สามารถทำการ overclock ได้ด้วยกับการจัดการจ่ายพลังงานไฟฟ้าแบบ multi-gear , ทำให้ระบบมีความเสถียรมากขึ้น. โดยที่ Energy Saving technology ที่อยู่บน GA-EQ45M-S2 จะซัพพอร์ต VRD 11.1, GIGABYTE DES Advanced จะทำการ switch การทำงานไปเป็นแบบ 2 Gear phase เมื่ออยู่ในสภาวะ idle. สำหรับช่วยในเรื่องของการประหยัดพลังงานที่มีประสิทธิภาพ
  • 2 Power Phases for Both North Bridge and Memory
    เมนบอร์ดจาก GIGABYTE ที่ใช้ชิบเซต P45 มีระบบการจ่ายพลังงานแบบ 2-Phase power สำหรับ North Bridge และหน่วยความจำ ทำให้ผู้ใช้ได้สนุกกับประสิทธิภาพสูงของระบบที่ดียิ่งขึ้น ทำให้อายุการทำงานของระบบยาวนานขึ้นและอุณหภูมิในการทำงานไม่สูง


  • Ultra TPM - Industry’s highest level of data Security via onboard TPM
    • Maximum level of data protection with 2048 bit encryption
    • Security, manageability and flexibility that surpasses software-based encryption
    • Portable User Key to protect data when away from your system
    • Additional backup of user key in BIOS in case of misplaced key
    • After creating the password(s) and key(s) associated the TPM, be sure to store them in a secure location and back them up. Loss of the password(s) or the key(s) will render the files encrypted via the TPM unable to be cracked or read.
    • Though the TPM delivers the latest data security technology, it does not guarantee data integrity or give hardware protection. GIGABYTE is not liable for loss of encrypted data as a result of hardware damage.
    (Note)If you want to uninstall the Ultra TPM utility, be sure to insert the USB flash drive containing the TPM key into your computer before the uninstallation.


  • High Velocity 4X Bandwidth Boost
    The Quad LAN with Teaming functionality enabled allows 4 single connections to act as 1 single connection for Quad Bandwidth, improving overall throughput.

    Prevents network downtime by transferring the workload from a failed port to a working port.

    Receive Side Scaling balances the network traffic load evenly between 2 CPU cores in order to improve performance.

    Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.

    (Note) To enable Teaming or Bonding (IEEE 802.3ad Link Aggregation) feature, it is required the connected network switch or router device supports the IEEE 802.3ad LACP standard. Please refer to your network switch or router device manual for further details.
  • Hardware Overvoltage Control ICs
    Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  • EasyTune6
    GIGABYTE ได้ออกแบบ EasyTune6 ทำให้คุณสามารถปรับแต่งค่าต่างๆ ในระบบฮาร์ดแวร์ได้ง่ายขึ้นและมีประสิทธิภาพสูง เช่น การ overclock


  • Smart Backup- Plug & Play Hardware RAID
    GIGABYTE's Smart Backup ได้รับการออกแบบมาสำหรับติดตั้งอุปกรณ์จัดเก็บข้อมูล 4 Serial ATA เพื่อใช้ในการต่อ RAID data protection. โดยจะมีชิพเป็นแบบ Dual onboard RAID ช่วยให้การ configure RAID ทำได้ง่ายกว่าเพราะเป็นแบบอัตโนมัติ, , ลดการทำงานของ CPU และ backup ในแบบ real-time
  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • Onboard Diagnostic LEDs - Hardware Troubleshoot at a Glance

    7 Onboard LED ที่แสดงสถานะการทำงานของ BIOS , ผู้ใช้สามารถตรวจสอบถึงปัญหาได้อย่างง่ายได้โดยสังเกตุจากแสงไฟ, ทำให้สามารถเห็นการเปลื่ยนแปลงได้อย่างรวดเร็ว
  • Onboard ACPI LEDs - Power Status Indicators to avoid improper hardware removal
    การตั้งค่าแบบมืออาชีพและรูปแบบการจ่ายพลังงาน (ACPI) ทำให้ระบบ os สามารถควบคุมการทำงานได้โดยตรงกับระบบการจ่ายพลังงาน . สังเกตุสถานะได้จากแสงไฟ LED
  • Onboard Quick Switches
    Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  • Ultra Durable 2 -Designed with Top Quality Highly Efficient Components

    Ultra Cooling - Low RDS(on) MOSFET Design
    Low RDS(on) MOSFET ในการออกแบบ ทำให้ลดการใช้พลังงานลง...more


    Low Power Loss - Ferrite Core Choke Design
    Ferrite core chokes ประกอบด้วย ไอรอน-ออกไซด์ และ ส่วนประกอบอื่น ที่มีคูณภาพสูง...more

    Longer Life - All-Solid Capacitor Design
    ยืดอายุการทำงานของระบบให้ยาวนานขึ้น มีความเสถรียรในการทำงานของระบบ....more
  • 50,000 Hours Japanese Solid Capacitors
    เมนบอร์ด GIGABYTE ทุกรุ่นที่มีเทคโนโลยี Ultra Durable จะได้รับการออกแบบด้วย Solid Capacitors คุณภาพสูงที่ได้รับการพัฒนาจากประเทศญี่ปุ่น ซึ่งโดยเฉลี่ยของอายุการทำงานของ Solid Capacitors จะมีอายุการทำงานที่ยืนยาวกว่า 50,000 ชั่วโมงจึงให้ความน่าเชื่อถือในการทำงานที่สูง พร้อมให้พละกำลังในการทำงานที่ยอดเยี่ยม นับเป็นตัวเก็บประจุไฟฟ้ารุ่นใหม่ที่ให้เสถียรภาพในการทำงานที่ดีมาก และกำลังเป็นที่ต้องการของอุตสาหกรรมในขณะนี้ เพราะสามารถรองรับการทำงานร่วมกับโพรเซสเซอร์ระดับไฮเอนต์ และส่วนประกอบอื่นๆ ที่มีความร้อนสูงได้เป็นอย่างดี นับเป็นส่วนประกอบหลักที่สำคัญที่สุดของการเพิ่มประสิทธิภาพระบบ ที่ต้องทำงานร่วมกับแอพลิเคชันและระบบเกมความเร็วสูงในปัจจุบัน...
