• Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  • Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1600 MHz
  • Dual channel DDR2 1333+ for remarkable system performance
  • 2 PCI-E 2.0 x16 graphic interface plus PCI-E 2.0 x4 with CrossFireX support for ultimate graphics performance
  • Diagnostic LED and ACPI LEDs on board to display system and power status
  • 2 Gigabit Ethernet LAN with Teaming functionality
  • Supports Dolby Home Theater® audio to create a stunning surround sound listening experience.
  • DualBIOS solution gives a multiple security to the system
  • Power/reset/Clr CMOS onboard button for easily operation on the workbench
  • Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
  • Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
  • Introduction

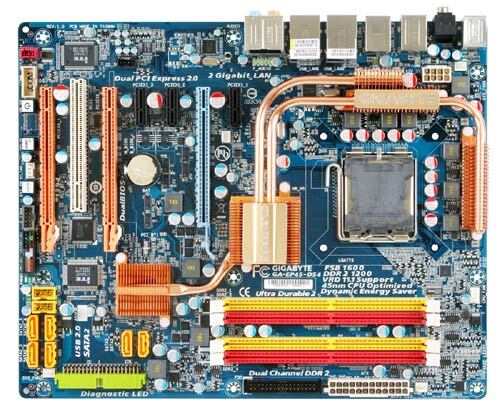

    Based on the new Intel P45 chipset, GA-EP45-DS4 delivers a record setting 1600MHz Front Side Bus for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1333+MHz, GA-EP45-DS4 motherboard provides the highest levels of performance and maximum overclocking potential. In additional, GA-EP45-DS4 is further equipped to support ATI CrossFireX™ Technology with dual PCI Express 2.0 x8 interfaces, delivering double the PCI Express bandwidth of 5 Gbit/s for the ultimate in extreme gaming performance. GA-EP45-DS4 delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 2 design which provide optimized power savings, ultra cooling for extreme system performance.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Smaller, Faster and More Efficient
    GA-P43-ES3G motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.


  • Dual Channel DDR2 1333+ MHz
    ส่ง มอบประสบการณ์ความแรงด้วย DDR2 memory ความเร็วสูงถึง 1333MHz. GIGABYTE Ultra Durable 3 series ช่วยให้ผู้ใช้งานสามารถสัมผัสหน่วยความจำความเร็วสูงได้อย่างเหนือระดับ พร้อมบริโภคพลังงานต่ำ แต่ให้ประสิทธิภาพในการทำงานสูง สำหรับ applications ที่ต้องการความละเอียดสูง โดยเฉพาะระบบ 3D games...
    * DDR2 1333+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI-E 2.0 Graphics Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • Multi-display support with ATI CrossFireX™
    H55M-D2Hพร้อมส่งมอบประสิทธิภาพสำหรับผู้ที่ชื่นชอบการเล่นเกมความละเอียดสูงด้วยการสนับสนุนการทำงานร่วมกับ ATI CrossFireX. (H55M-S2H รองรับเฉพาะ ATI CrossFireX เท่านั้น)..
    (H55M-D2H support software ATI CrossFireX only)
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Dolby Home Theater ให้พลังเสียงที่สมจริง เหมือนมีโรงหนังที่บ้าน เพิ่มประสบการณ์ไปกับระบบเสียง
    • สมบูรณ์แบบด้วย Vivid Surround Sound ไม่ว่าจะเป็นการเล่นเกม ดูหนัง หรือฟังเพลง ก็ยังให้เสียง สมจริง
    • มาพร้อมกับระบบปรับแต่งแสียงที่มีประสิทธิภาพอีกด้วย


  • Dynamic Energy Saver Advanced
    GIGABYTE ได้ออกแบบ Dynamic Energy Saver อีกครั้งที่ได้มีการปรับปรุงระบบประหยัดพลังงานใหม่ โดยออกแบบให้ผู้ใช้มีความง่ายในการใช้งานมากขึ้น, เปิดการใช้งานได้เร็วขึ้น,. GIGABYTE ได้เพิ่มประสิทธิภาพของระบบ Dynamic Energy Saver ให้สามารถทำการ overclock ได้ด้วยกับการจัดการจ่ายพลังงานไฟฟ้าแบบ multi-gear , ทำให้ระบบมีความเสถียรมากขึ้น. โดยที่ Energy Saving technology ที่อยู่บน GA-EQ45M-S2 จะซัพพอร์ต VRD 11.1, GIGABYTE DES Advanced จะทำการ switch การทำงานไปเป็นแบบ 2 Gear phase เมื่ออยู่ในสภาวะ idle. สำหรับช่วยในเรื่องของการประหยัดพลังงานที่มีประสิทธิภาพ


  • High Velocity 2X Bandwidth Boost
    ให้อัตราความเร็วของ Bandwidth สูง 2 เท่า
  • Hardware Overvoltage Control ICs
    Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  • EasyTune6
    GIGABYTE ได้ออกแบบ EasyTune6 ทำให้คุณสามารถปรับแต่งค่าต่างๆ ในระบบฮาร์ดแวร์ได้ง่ายขึ้นและมีประสิทธิภาพสูง เช่น การ overclock


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • Onboard Diagnostic LEDs - Hardware Troubleshoot at a Glance

    7 Onboard LED ที่แสดงสถานะการทำงานของ BIOS , ผู้ใช้สามารถตรวจสอบถึงปัญหาได้อย่างง่ายได้โดยสังเกตุจากแสงไฟ, ทำให้สามารถเห็นการเปลื่ยนแปลงได้อย่างรวดเร็ว
  • Onboard ACPI LEDs - Power Status Indicators to avoid improper hardware removal
    การตั้งค่าแบบมืออาชีพและรูปแบบการจ่ายพลังงาน (ACPI) ทำให้ระบบ os สามารถควบคุมการทำงานได้โดยตรงกับระบบการจ่ายพลังงาน . สังเกตุสถานะได้จากแสงไฟ LED
  • Onboard Quick Switches
    Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  • Ultra Durable 2 -Designed with Top Quality Highly Efficient Components

    Ultra Cooling - Low RDS(on) MOSFET Design
    Low RDS(on) MOSFET ในการออกแบบ ทำให้ลดการใช้พลังงานลง...more


    Low Power Loss - Ferrite Core Choke Design
    Ferrite core chokes ประกอบด้วย ไอรอน-ออกไซด์ และ ส่วนประกอบอื่น ที่มีคูณภาพสูง...more

    Longer Life - All-Solid Capacitor Design
    ยืดอายุการทำงานของระบบให้ยาวนานขึ้น มีความเสถรียรในการทำงานของระบบ....more
  • 50,000 Hours Japanese Solid Capacitors
    เมนบอร์ด GIGABYTE ทุกรุ่นที่มีเทคโนโลยี Ultra Durable จะได้รับการออกแบบด้วย Solid Capacitors คุณภาพสูงที่ได้รับการพัฒนาจากประเทศญี่ปุ่น ซึ่งโดยเฉลี่ยของอายุการทำงานของ Solid Capacitors จะมีอายุการทำงานที่ยืนยาวกว่า 50,000 ชั่วโมงจึงให้ความน่าเชื่อถือในการทำงานที่สูง พร้อมให้พละกำลังในการทำงานที่ยอดเยี่ยม นับเป็นตัวเก็บประจุไฟฟ้ารุ่นใหม่ที่ให้เสถียรภาพในการทำงานที่ดีมาก และกำลังเป็นที่ต้องการของอุตสาหกรรมในขณะนี้ เพราะสามารถรองรับการทำงานร่วมกับโพรเซสเซอร์ระดับไฮเอนต์ และส่วนประกอบอื่นๆ ที่มีความร้อนสูงได้เป็นอย่างดี นับเป็นส่วนประกอบหลักที่สำคัญที่สุดของการเพิ่มประสิทธิภาพระบบ ที่ต้องทำงานร่วมกับแอพลิเคชันและระบบเกมความเร็วสูงในปัจจุบัน...

* คำว่ำ HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress และโลโก้ HDMI เป็ นเคร ื่องหมำยกำรค้ำหรือเครื่องหมำยกำรค้ำจดทะเบียนของ HDMI Licensing Administrator, Inc.
* ข้อมูลเบื้องต้นมีไว้สำหรับอ้างอิงเท่านั้น GIGABYTE ขอสงวนสิทธิ์ในการปรับเปลี่ยนหรือแก้ไขเนื้อหาได้ตลอดเวลาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
* ประสิทธิภาพสูงสุดที่ใช้ในการประชาสัมพันธ์เป็นเพียงข้อมูลตามทฤษฎีจากผู้ผลิตชิปเซ็ตที่เกี่ยวข้อง หรือองค์กรที่กำหนดคุณสมบัติอินเตอร์เฟส ประสิทธิภาพที่แท้จริงอาจแตกต่างกันโดยการตั้งค่าของระบบที่ไม่เหมือนกัน
* เครื่องหมายการค้าและโลโก้คุณสมบัติต่างๆ เป็นของผู้ถือสิทธิ์นั้นๆ
* เนื่องจากความต้องการหน่วยความจำมาตรฐานของสถาปัตยกรรมคอมพิวเตอร์ต่อหน่วยที่ไม่เหมือนกัน ดังนั้นขนาดหน่วยความจำที่จำเป็นอาจน้อยกว่าจำนวนที่ระบุไว้ก็ได้
