• Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  • Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1600 MHz
  • Dual Channel DDR3 2000 for remarkable system performance
  • Advanced power phase design with virtual 12 power phases to provides highly efficient operation for 45nm CPU
  • Embedded 2 power phases for NB chipset and 2 phases for memory power to excel at power efficiency
  • 2 PCI-E 2.0 x16 graphic interface plus PCI-E x4 with CrossFireX ™ support for ultimate graphics performance
  • Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
  • All Copper Heat pipe/Heat sink connecting NB, SB, and MOSFET and extra Hybrid Silent-Pipe design provides 30% cooler thermal performance
  • Professed onboard Debug LED and OV-Alert LED, OC-Alert LED, TMP-Alert LED allows user to easily catch on to PC status
  • 2 Gigabit Ethernet LAN with Teaming functionality
  • Supports Dolby Home Theater® audio to create a stunning surround sound listening experience.
  • DualBIOS solution gives a multiple security to the system
  • Power/reset/Clr CMOS onboard button for easily operation on th workbench
  • Maximum CPU keep out zone for extreme CPU cooling
  • Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
  • Introduction

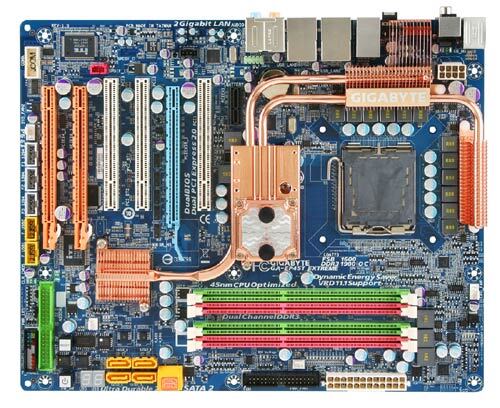

    Designed for overclocking enthusiasts with overwhelming overclocking experience, GIGABYTE GA-EP45T-EXTREME is based on Intel P45 chipset, and supports the latest multi-core and 45nm processors up to FSB 1600MHz, featuring dual PCI-E 2.0x16 connectivity with CrossFireX™ supported and dual LAN with teaming for ultra bandwidth.

    GA-EP45T-EXTREME equipped with all-copper heat pipe from North Bridge, South Bridge, to CPU MOSFET which provides comprehensive thermal solution, and can be further optimized by a special heat pipe between North Bridge heat sink and PCI socket on your option. Additionally, enhanced with special design around CPU circuit for maximum heat reducing and top quality electronics components, GA-EP45T-EXTREME brings unprecedented cool and reliable platform for overclockers.

    Built with GIGABYTE patented Dynamic Energy Saver Advanced technology and Ultra Durable 2 design, GA-EP45T-EXTREME delivers ultimate overclocking performance along with maximum stability and advanced power savings.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Smaller, Faster and More Efficient
    GA-P43-ES3G motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.
  • Dual Channel DDR3 2000
    แรงตั้งแต่โรงงานกับการรองรับหน่วยความจำ DDR3 สามารถอัพเกรดความเร็วได้สูงถึง 2200+MHz เหนือระดับไปกับเทคโนโลยีหน่วยความจำที่รองรับได้ทั้ง DDR2 และ DDR3 สำหรับอนาคตที่ดีกว่า พร้อมรับกับทุกแอพลิเคชั่น, เมนบอร์ด GIGABYTE Ultra Durable 3 series ทุกรุ่นสามารถรองรับหน่วยความจำที่ใช้พลังงานต่ำ ส่งผลให้ระบบโดยรวมมีอุณหภูมิที่ลดลง แต่ประสิทธิภาพดีขึ้นพร้อมรับสำหรับ applications, high-definition video และ 3D games
    *กรุณาดูข้อมูลเกี่ยวกับหน่วยความจำที่ซัพพอร์ต "Memory Support List"
  • PCI-E 2.0 Graphics Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • Multi-display support with ATI CrossFireX™
    H55M-D2Hพร้อมส่งมอบประสิทธิภาพสำหรับผู้ที่ชื่นชอบการเล่นเกมความละเอียดสูงด้วยการสนับสนุนการทำงานร่วมกับ ATI CrossFireX. (H55M-S2H รองรับเฉพาะ ATI CrossFireX เท่านั้น)..
    (H55M-D2H support software ATI CrossFireX only)
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Dolby Home Theater ให้พลังเสียงที่สมจริง เหมือนมีโรงหนังที่บ้าน เพิ่มประสบการณ์ไปกับระบบเสียง
    • สมบูรณ์แบบด้วย Vivid Surround Sound ไม่ว่าจะเป็นการเล่นเกม ดูหนัง หรือฟังเพลง ก็ยังให้เสียง สมจริง
    • มาพร้อมกับระบบปรับแต่งแสียงที่มีประสิทธิภาพอีกด้วย


  • Hybrid Silent-Pipe
    Hybrid-Silent Pipe ออกแบบระบบระบายอากาศที่มีประสิทธิภาพด้วย Air cooling พร้อมด้วย Liquid Cooling ที่อยู่บริเวณของ North Bridge, South Bridge และCPU นั่นทำให้อุณหภูมิโดยลดลง.

    Hybrid-Silent Pipe combines liquid cooling and air cooling to provide up to 30% cooler operation


  • Dynamic Energy Saver Advanced
    GIGABYTE ได้ออกแบบ Dynamic Energy Saver อีกครั้งที่ได้มีการปรับปรุงระบบประหยัดพลังงานใหม่ โดยออกแบบให้ผู้ใช้มีความง่ายในการใช้งานมากขึ้น, เปิดการใช้งานได้เร็วขึ้น,. GIGABYTE ได้เพิ่มประสิทธิภาพของระบบ Dynamic Energy Saver ให้สามารถทำการ overclock ได้ด้วยกับการจัดการจ่ายพลังงานไฟฟ้าแบบ multi-gear , ทำให้ระบบมีความเสถียรมากขึ้น. โดยที่ Energy Saving technology ที่อยู่บน GA-EQ45M-S2 จะซัพพอร์ต VRD 11.1, GIGABYTE DES Advanced จะทำการ switch การทำงานไปเป็นแบบ 2 Gear phase เมื่ออยู่ในสภาวะ idle. สำหรับช่วยในเรื่องของการประหยัดพลังงานที่มีประสิทธิภาพ
  • 2 Power Phases for Both North Bridge and Memory
    เมนบอร์ดจาก GIGABYTE ที่ใช้ชิบเซต P45 มีระบบการจ่ายพลังงานแบบ 2-Phase power สำหรับ North Bridge และหน่วยความจำ ทำให้ผู้ใช้ได้สนุกกับประสิทธิภาพสูงของระบบที่ดียิ่งขึ้น ทำให้อายุการทำงานของระบบยาวนานขึ้นและอุณหภูมิในการทำงานไม่สูง


  • High Velocity 2X Bandwidth Boost
    ให้อัตราความเร็วของ Bandwidth สูง 2 เท่า
  • Hardware Overvoltage Control ICs
    Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  • EasyTune6
    GIGABYTE ได้ออกแบบ EasyTune6 ทำให้คุณสามารถปรับแต่งค่าต่างๆ ในระบบฮาร์ดแวร์ได้ง่ายขึ้นและมีประสิทธิภาพสูง เช่น การ overclock


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • Visible Overvoltage Reminder
    Debug LED Embedded post code LED display simplifies motherboard signals and indicates system status.
  • OV-Alert LED
    แสดงสถานะด้วยไฟ 4 ชุด ของระดับ OV ของ CPU, memory, NB และ SB
  • Visible Overclocking Reminder
    ไฟเตื่อน LED บนบอร์ด แสดงสถานะการทำงานของ CPU ที่ overclock
  • Visible Temperature Reminder
    Two sets of Temperature Alert LEDs indicate the current temperature level of the CPU and North Bridge
  • Onboard Quick Switches
    Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  • Ultra Durable 2 -Designed with Top Quality Highly Efficient Components

    Ultra Cooling - Low RDS(on) MOSFET Design
    Low RDS(on) MOSFET ในการออกแบบ ทำให้ลดการใช้พลังงานลง...more


    Low Power Loss - Ferrite Core Choke Design
    Ferrite core chokes ประกอบด้วย ไอรอน-ออกไซด์ และ ส่วนประกอบอื่น ที่มีคูณภาพสูง...more

    Longer Life - All-Solid Capacitor Design
    ยืดอายุการทำงานของระบบให้ยาวนานขึ้น มีความเสถรียรในการทำงานของระบบ....more
  • 50,000 Hours Japanese Solid Capacitors
    เมนบอร์ด GIGABYTE ทุกรุ่นที่มีเทคโนโลยี Ultra Durable จะได้รับการออกแบบด้วย Solid Capacitors คุณภาพสูงที่ได้รับการพัฒนาจากประเทศญี่ปุ่น ซึ่งโดยเฉลี่ยของอายุการทำงานของ Solid Capacitors จะมีอายุการทำงานที่ยืนยาวกว่า 50,000 ชั่วโมงจึงให้ความน่าเชื่อถือในการทำงานที่สูง พร้อมให้พละกำลังในการทำงานที่ยอดเยี่ยม นับเป็นตัวเก็บประจุไฟฟ้ารุ่นใหม่ที่ให้เสถียรภาพในการทำงานที่ดีมาก และกำลังเป็นที่ต้องการของอุตสาหกรรมในขณะนี้ เพราะสามารถรองรับการทำงานร่วมกับโพรเซสเซอร์ระดับไฮเอนต์ และส่วนประกอบอื่นๆ ที่มีความร้อนสูงได้เป็นอย่างดี นับเป็นส่วนประกอบหลักที่สำคัญที่สุดของการเพิ่มประสิทธิภาพระบบ ที่ต้องทำงานร่วมกับแอพลิเคชันและระบบเกมความเร็วสูงในปัจจุบัน...

* คำว่ำ HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress และโลโก้ HDMI เป็ นเคร ื่องหมำยกำรค้ำหรือเครื่องหมำยกำรค้ำจดทะเบียนของ HDMI Licensing Administrator, Inc.
* ข้อมูลเบื้องต้นมีไว้สำหรับอ้างอิงเท่านั้น GIGABYTE ขอสงวนสิทธิ์ในการปรับเปลี่ยนหรือแก้ไขเนื้อหาได้ตลอดเวลาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
* ประสิทธิภาพสูงสุดที่ใช้ในการประชาสัมพันธ์เป็นเพียงข้อมูลตามทฤษฎีจากผู้ผลิตชิปเซ็ตที่เกี่ยวข้อง หรือองค์กรที่กำหนดคุณสมบัติอินเตอร์เฟส ประสิทธิภาพที่แท้จริงอาจแตกต่างกันโดยการตั้งค่าของระบบที่ไม่เหมือนกัน
* เครื่องหมายการค้าและโลโก้คุณสมบัติต่างๆ เป็นของผู้ถือสิทธิ์นั้นๆ
* เนื่องจากความต้องการหน่วยความจำมาตรฐานของสถาปัตยกรรมคอมพิวเตอร์ต่อหน่วยที่ไม่เหมือนกัน ดังนั้นขนาดหน่วยความจำที่จำเป็นอาจน้อยกว่าจำนวนที่ระบุไว้ก็ได้
