• Supports AMD Athlon/ Sempron processors*
  • Dual Channel DDR2 800 for outstanding system performance
  • Integrated NVIDIA CineFX 3.0 graphics
  • Ultimate graphics performance with PCI-E x16 interface
  • Integrated SATA 3Gb/s with RAID function
  • Features high speed Gigabit Ethernet
  • Integrated 6-Channel High Definition audio
  • Integrated DVI interface with HDCP
  • RoHS compliant motherboard for green computing
*Note: If you install AMD AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec; however, the frequency of AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
  • Introduction

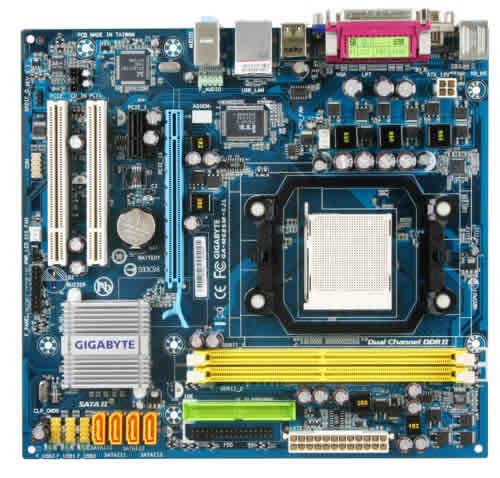

    GIGABYTE Technology latest S series motherboards for AMD socket AM2 platform, featuring with two innovative features- Safe and Smart Technologies. The new S series motherboards GA-M68SM-S2L; supporting AMD new generation AM2 processor with dual channel DDR2 800MHz high frequency memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion's choice for AMD Socket AM2 platform!
  • AMD Phenom™ Processors Support
    The AMD AM2+ Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
    (Note) If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
  • Smart
    The Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  • AMD Live Ready
    AMD Live Ready Requirement compliant.
  • AMD Athlon™ 64 FX/ 64 X2 / 64 Processor
    รองรับการทำงานแบบ 64bit และเทคโนโลยีจาก AMD Athlon 64 บน socket AM2 และ และซีพียูรุ่นล่าสุด Athlon 64x2 ที่มาพร้อมกับการทำงานแบบ multitasking เต็มรูปแบบ
  • NVIDIA GeForce 7025 / NVIDIA nForce 630a GPU
    ชิบเซตจาก NVIDIA GeForce 7025 / NVIDIA nForce 630a กราฟฟิกมีเดียและระบบสือสาร(GMCP) ที่มีรูปแบบการทำงาน single-chip ระบบประมวลผลวีดีโอ, พร้อมด้วย DVI มีช่องต่อ HDCP . รองรับการทำงาน HD-DVD & Blue-ray.(support up to 720p)
  • PCI Express Interface
    Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface delivers the utmost graphics experience; PCI-E x1interface delivers twice the bandwidth.
  • Superior Dual channel DDR2 800 Architecture
    ซัพพอร์ทสถาปัตยกรรมโครงสร้างการทำงานของหน่วยความจำ DDR2 800 การทำงานแบบ Dual จึงทำให้แบนด์วิธที่ขยายสูงถึง 12.8 GB/วินาที และถือเป็นรูปแบบล่าสุดของหน่วยความจำ
  • SATA 3Gb/s & RAID
    This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA® RAID allows multi-disk designs to be set up as RAID 0, 1, based on users' priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.
  • High Definition Audio
    Experience home theater-quality sound with your PC using High Definition Audio for enhanced 6/ 8-channel* audio, improved voice and communication input, and multi-streaming capability.
    * To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.

* คำว่ำ HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress และโลโก้ HDMI เป็ นเคร ื่องหมำยกำรค้ำหรือเครื่องหมำยกำรค้ำจดทะเบียนของ HDMI Licensing Administrator, Inc.
* ข้อมูลเบื้องต้นมีไว้สำหรับอ้างอิงเท่านั้น GIGABYTE ขอสงวนสิทธิ์ในการปรับเปลี่ยนหรือแก้ไขเนื้อหาได้ตลอดเวลาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
* ประสิทธิภาพสูงสุดที่ใช้ในการประชาสัมพันธ์เป็นเพียงข้อมูลตามทฤษฎีจากผู้ผลิตชิปเซ็ตที่เกี่ยวข้อง หรือองค์กรที่กำหนดคุณสมบัติอินเตอร์เฟส ประสิทธิภาพที่แท้จริงอาจแตกต่างกันโดยการตั้งค่าของระบบที่ไม่เหมือนกัน
* เครื่องหมายการค้าและโลโก้คุณสมบัติต่างๆ เป็นของผู้ถือสิทธิ์นั้นๆ
* เนื่องจากความต้องการหน่วยความจำมาตรฐานของสถาปัตยกรรมคอมพิวเตอร์ต่อหน่วยที่ไม่เหมือนกัน ดังนั้นขนาดหน่วยความจำที่จำเป็นอาจน้อยกว่าจำนวนที่ระบุไว้ก็ได้
