• Supports AMD Phenom X4/ Athlon X2 processors*
  • Solid capacitors design in CPU VRM
  • Dual Channel DDR2 800 for outstanding system performance
  • Integrated ATI Radeon 2100 graphics
  • Ultimate graphics performance with PCI-Ex16 interface
  • Integrated SATA 3Gb/s with RAID function
  • Features high speed Gigabit Ethernet connection
  • Integrated 6/8-Channel** High Definition audio
  • Integrated DVI interface with HDCP
Note:
* If you install AMD AM3/AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec; however, the frequency of AM3/AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
** To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.
  • Introduction

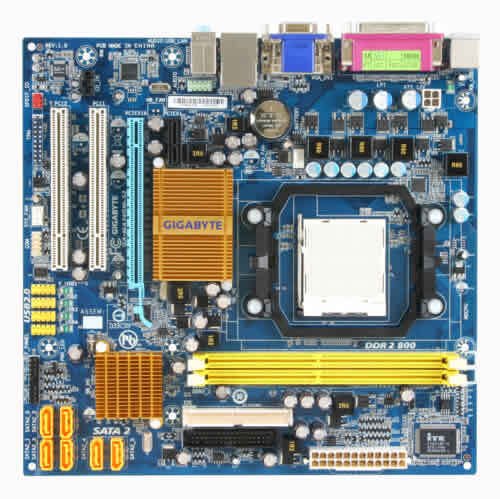

    The GA-MA74GM-S2 is GIGABYTE’s next generation, high performance platform based on the new AMD 740G Chipset and support for AMD AM2 processor with dual channel DDR2 800MHz high frequency memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. In addition, GA-MA74GM-S2 features with two innovative S features- Safe, Smart technologies, further providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion’s choice for AMD AM2 platform!
  • Supports next generation of 45nm AMD AM3 CPU
    This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
  • AMD Phenom™ Processors Support
    The AMD Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
    (Note) If you install AMD AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec; however, the frequency of AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
  • Solid Capacitor for CPU VRM
    Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
  • AMD Live Ready
    AMD Live Ready Requirement compliant.
  • AMD Athlon™64 FX/ 64 X2 / 64 Processors
    รองรับการทำงานแบบ 64bit และเทคโนโลยีจาก AMD Athlon 64 บน socket AM2 และ และซีพียูรุ่นล่าสุด Athlon 64x2 ที่มาพร้อมกับการทำงานแบบ multitasking เต็มรูปแบบ
  • AMD 780G Chipset
    The AMD 780G Chipset is the system logic of the latest AM2+ (HyperTransport 3.0) platform from AMD that enables its next generation Phenom™ processors. The AMD 780G chipset integrated ATI Radeon™ HD 3200-based graphics architecture. This unique combination of Integrated Graphics Processor (IGP) creates a single motherboard featuring a world-class DX10, Shader Model 4.0 graphics, ATI Avivo™ Technology, and brand-new ATI Hybrid Graphics Technology and AMD UVD (Unified Video Decoder) Technology for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
  • Dual Channel DDR2 800 MHz
    ซัพพอร์ทสถาปัตยกรรมโครงสร้างการทำงานของหน่วยความจำ DDR2 800 สองช่องทางกับแบนด์วิธที่ขยายสูงถึง 6.4 GB/วินาที และการเข้าถึงหน่วยความจำที่ใช้ระยะเวลาที่สั้นลงกว่าเดิมที่จะเข้าไปการทำงานภายในตัวเครื่อง ดังนั้นจึงสามารถแสดงผลหน่วยความจำได้ดีและยอดเยี่ยมที่สุด..
    * Please refer "Memory Support List" for memory support information
  • PCI Express Interface
    Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface delivers the utmost graphics experience; PCI-E x1interface delivers twice the bandwidth.
  • High Definition Audio
    Experience home theater-quality sound with your PC using High Definition Audio for enhanced 6/ 8-channel* audio, improved voice and communication input, and multi-streaming capability.
    * To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.
  • SATA 3Gb/s storage interface
    ให้ bandwidth lสูง 1.5Gb/s to 3Gb/s. นับเป็นเทคโนโลยีในการโอนถ่ายข้อมูลใหม่สำหรับฮาร์ดดิสก์ความเร็วสูง. รองรับ Hot Plug ฟังก์ชันที่ไม่ต้องปิดเครื่อง pc เมื่อมีการถอดฮาร์ดดิสก์
  • Gigabit LAN Connectivity
    การอินเตอร์ เฟสเครือข่ายของ GIGABYTE ทำให้เกิดการเชื่อมต่อ LAN ในระดับความเร็วสูง ซึ่งมีอัตราการส่งผ่านข้อมูลสูงถึง 1000 MB/วินาที ถือเป็นความสามารถในการเชื่อมต่อในยุคถัดไปสำหรับยุคบรอดแบรนด์ ซึ่ง Gigabit LAN มีความเหมาะสมในการเชื่อมต่อระบบเครือข่ายอินเตอร์เน็ตที่ไร้ข้อตำหนิ ทั้งการส่งสัญญาณเนื้อหาทางเสียงและวิดีโอ ตามลำดับ
  • Smart
    The Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
