• Supports AMD Phenom™/ Athlon™ series processors
  • Dual Channel DDR2 1066* for remarkable system performance
  • Integrated 128MB DDR3 1066/ 1333(OC)MHz SidePort Memory
  • Integrated ATI Radeon HD3200 graphics (DirectX10)
  • Ultimate graphics performance with PCI-E 2.0 x16 interface with ATI Hybrid CrossFireX support
  • Features high speed Gigabit Ethernet and IEEE1394
  • High quality 106dB SNR ALC889A HD audio
  • Supports Dolby Home Theater audio to create a stunning surround sound listening experience.
  • Integrated HDMI/ DVI interface with HDCP
  • DualBIOS solution gives a multiple security to the system
  • All Japanese manufactured solid capacitors
* DDR2 1066 is supported with combination of AM2+ processors and DDR2 1066 memory modules, please refer "Memory Support List" for detail memory support information.
  • Introduction

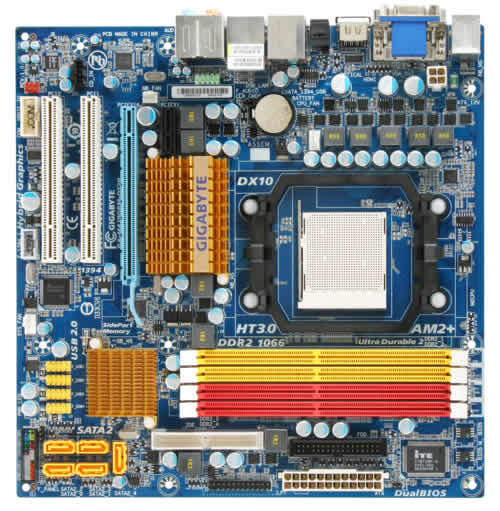

    GA-MA78LMT-S2 offers high performance platform based on AMD 760G chipset, it is integrated ATI Radeon HD 3000 (DX10) graphics engine and supports AMD AM3 Phenom II/ Phenom/ Athlon processors, HyperTransport™ 3.0 technology links, DDR2 memory, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-MA78LMT-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
  • Supports next generation of 45nm AMD AM3 CPU
    This motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
  • AMD Phenom™ processors
    The leading-edge performance and unparallel technology of AMD AM2+ Phenom™ processors have built its strength on the well-known AMD64 framework which consisted next generation of HyperTransport 3.0 Technology, and integrated DDR2 1066 memory controller, and 128-bit Floating Point Units. The AMD Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
  • AMD 780G Chipset
    The AMD 780G Chipset is the system logic of the latest AM2+ (HyperTransport 3.0) platform from AMD that enables its next generation Phenom™ processors. The AMD 780G chipset integrated ATI Radeon™ HD 3200-based graphics architecture. This unique combination of Integrated Graphics Processor (IGP) creates a single motherboard featuring a world-class DX10, Shader Model 4.0 graphics, ATI Avivo™ Technology, and brand-new ATI Hybrid Graphics Technology and AMD UVD (Unified Video Decoder) Technology for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
  • Built-in 128MB DDR3 SidePort Memory
    built-in หน่วยความจำขนาด 128MB DDR3 SidePort memory มาให้พร้อมสำหรับเพิ่มประสิทธิภาพของชิพ 3D ได้มากถึง 10-15%
  • AMD 785G 3D Graphics Performance Upgrade- up to 3DMark 2006 2300 marks!!
    ให้ ประสิทธิภาพในการทดสอบ benchmark software 3DMark 2006 จาก Futuremark Corporation ได้สูงด้วยประสิทธิภาพ DirectX® 3D ที่เร็วเหนือมาตรฐาน . ...
    • Hardware equipment required: [CPU] AMD AM3 Sempron 140(OC), [Memory] DDR2 1066(1GBx2), [OS] Windows Vista.
    • Software equipment required: [Benchmark] 3DMark 2006, [Resolution] 1280x1024x32 (no AA, no AF, 32bpp).
    * 2300+ marks in 3DMark06 was achieved by overclocking.
    * Please be aware that GIGABYTE's product warranty does not cover damages caused by overclocking.
  • ATI Hybrid Graphics Technology support
    ด้วยประสิทธิภาพของ ATI Hybrid Graphics Technology ที่มีการใส่เทคโนโลยี ATI Hybrid CrossFireX™, ATI SurroundView™, และ ATI PowerPlay™.ลงบนตัว GPU ที่บอร์ด ทำให้เพิ่มประสิทธิภาพการทำงานของระบบสูงขึ้น .
    * Please use ATI Hybrid CrossFireX certified DX11 VGA card (i.e., ATI Radeon HD 5450, etc.)
  • Dual Channel DDR2 1066* MHz
    Experience the advanced technology of DDR2 1066* memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI-E 2.0 Graphics Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • HDMI Interface
    HDMI เป็นเทคโนโลยีล่าสุดของระบบ High-Definition Multimedia Interface ที่สามารถให้ความเร็วในการโอนถ่ายข้อมูลวีดีโอได้สูงถึง 5Gb / s และระบบเสียงแบบ 8 ช่องทางด้วยสายเคเบิ้ลเพียงเส้นเดียว นอกจากนั้นด้วยพอร์ต HDMI จะช่วยให้การแสดงผลกราฟิกมีความละเอียดที่สูงมากถึง 1080p โดยไม่สูญเสียคุณภาพเกี่ยวกับการแปลงสัญญาณจากอนาล็อก และ ดิจิตอล ที่สำคัญ HDMI ยังมีความเข้ากันได้ กับ HDCP (High-bandwidth Digital Content Protection) ช่วย ให้การเล่น Blu-ray/HD DVD และ ป้องกันการเล่นแผ่นที่ไม่ได้รับอนุญาต.
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones.
  • ALC889A Enables a Superior Audio Experience

    Excellent Audio Performance
    High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.



    Blu-ray/HD DVD Full Rate Audio Support
    The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support for both Blu-ray and HD DVD formats for an exhilarating home theater entertainment experience.

    7.1+2 Channel High Definition Output
    The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
  • Gigabit LAN connectivity
    การอินเตอร์ เฟสเครือข่ายของ GIGABYTE ทำให้เกิดการเชื่อมต่อ LAN ในระดับความเร็วสูง ซึ่งมีอัตราการส่งผ่านข้อมูลสูงถึง 1000 MB/วินาที ถือเป็นความสามารถในการเชื่อมต่อในยุคถัดไปสำหรับยุคบรอดแบรนด์ ซึ่ง Gigabit LAN มีความเหมาะสมในการเชื่อมต่อระบบเครือข่ายอินเตอร์เน็ตที่ไร้ข้อตำหนิ ทั้งการส่งสัญญาณเนื้อหาทางเสียงและวิดีโอ ตามลำดับ
  • SATA 3Gb/s & RAID
    This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA® RAID allows multi-disk designs to be set up as RAID 0, 1, based on users' priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.
  • IEEE1394 motherboard
    This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.
  • Smart
    The Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  • AMD Live Ready
    AMD Live Ready Requirement compliant.
  • Windows Vista Premium Logo Certified
    Windows Vista Premium จะส่งมอบประสบการณ์ในการใช้งานเครื่องคอมพิวเตอร์ที่ยอดเยี่ยม ออกแบบมาเพื่อเปลี่ยนมุมมอง และค้นหา จัดการข้อมูลดิจิตอลที่มีคุณภาพ ผ่านโซลูชั่น P965/G965/946/945 สำหรับ Vista Premium, GIGABYTE ได้พยายามนำเสนอประสบการณ์ของเดสก์ ท็อปพีซีที่ดีที่สุด ใช้งานง่ายและเป็นระบบปฏิบัติการใหม่ล่าสุด....more
  • Ultra Durable 2 -Designed with Top Quality Highly Efficient Components

    Ultra Cooling - Low RDS(on) MOSFET Design
    Low RDS(on) MOSFET ในการออกแบบ ทำให้ลดการใช้พลังงานลง...more


    Low Power Loss - Ferrite Core Choke Design
    Ferrite core chokes ประกอบด้วย ไอรอน-ออกไซด์ และ ส่วนประกอบอื่น ที่มีคูณภาพสูง...more

    Longer Life - All-Solid Capacitor Design
    ยืดอายุการทำงานของระบบให้ยาวนานขึ้น มีความเสถรียรในการทำงานของระบบ....more

* คำว่ำ HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress และโลโก้ HDMI เป็ นเคร ื่องหมำยกำรค้ำหรือเครื่องหมำยกำรค้ำจดทะเบียนของ HDMI Licensing Administrator, Inc.
* ข้อมูลเบื้องต้นมีไว้สำหรับอ้างอิงเท่านั้น GIGABYTE ขอสงวนสิทธิ์ในการปรับเปลี่ยนหรือแก้ไขเนื้อหาได้ตลอดเวลาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
* ประสิทธิภาพสูงสุดที่ใช้ในการประชาสัมพันธ์เป็นเพียงข้อมูลตามทฤษฎีจากผู้ผลิตชิปเซ็ตที่เกี่ยวข้อง หรือองค์กรที่กำหนดคุณสมบัติอินเตอร์เฟส ประสิทธิภาพที่แท้จริงอาจแตกต่างกันโดยการตั้งค่าของระบบที่ไม่เหมือนกัน
* เครื่องหมายการค้าและโลโก้คุณสมบัติต่างๆ เป็นของผู้ถือสิทธิ์นั้นๆ
* เนื่องจากความต้องการหน่วยความจำมาตรฐานของสถาปัตยกรรมคอมพิวเตอร์ต่อหน่วยที่ไม่เหมือนกัน ดังนั้นขนาดหน่วยความจำที่จำเป็นอาจน้อยกว่าจำนวนที่ระบุไว้ก็ได้
