• Supports new generation of AMD Phenom™ II X6 processors
  • Ultra Durable 3 Technology with copper cooled quality for lower working temperature
  • Revolution energy saving design with Easy Energy Saver technology
  • Supports socket AM3 45nm AMD Phenom™ II series processors
  • Advanced 8+2 power phase design for 45nm CPU highly efficiency support
  • Dual Channel DDR3 1666+ for remarkable system performance
  • 2 PCI-E 2.0 x16 interface with ATI CrossFireX support for ultimate graphics performance
  • 2 Gigabit Ethernet LAN with Teaming functionality
  • Power/reset/Clr CMOS onboard button for power users
  • Blu-ray playback supported by high quality 106dB SNR ALC889A HD audio
  • Supports Dolby Home Theater audio to enjoy a rich surround sound experience
  • Patented DualBIOS with dual hardware BIOS protection
* Only compatible with AM3 Phenom™ II processors, not AM2+ Phenom™ II processors. Please refer "CPU support list" for detail information.
* DDR3 1666+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • Get Ready to Unleash the Power of AMD 6-Core CPU
    GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
  • Introduction

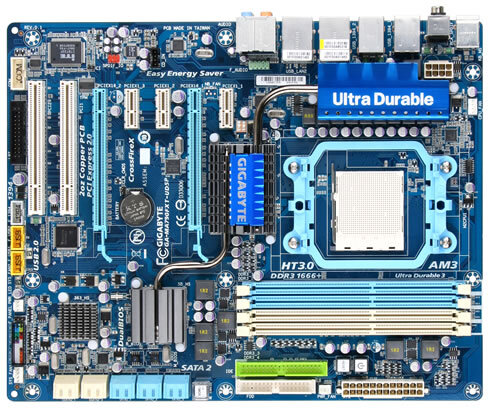

    The GA-MA790FXT-UD5P introduces revolutionary GIGABYTE Ultra Durable 3 technology on latest AMD socket AM3 platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 790FX chipset, the GA-MA790FXT-UD5P supports new generation of 45nm AMD Phenom II series processors, integrated DDR3 memory controller, HyperTransport™ 3.0 technology links and dual PCI Express 2.0 graphics interfaces (running at x16 and x16) for ATI CrossFireX support. With the innovative GIGABYTE Easy Energy Saver technology, the MA790FXT-UD5P is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
  • Supports next generation of 45nm AMD AM3 CPU
    This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom™I/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
  • EC AOD-ACC Support
    EC AOD-ACC เป็นชิพอคอนโทรลเลอร์ที่ถูกฝังไว้สำหรับ AMD OverDrive- Advanced Clock Calibration, ฟีเจอร์พิเศษที่พร้อมสำหรับ AMD SB750 southbridge chip, ออกแบบมาสำหรับเฉพาะสำหรับ AMD 790X chipset, เหมาะสำหรับ AMD Black Edition CPUs ที่เน้นการ overclocked ผ่านทาง AMD OverDrive™ utility. ..
    * Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.
  • AMD OverDrive Support
    Tด้วยคุณสมบัติพิเศษของ AMD OverDrive™ utility จะช่วยให้ผู้ใช้งานสามารถปรับแต่งค่าต่างๆ ได้อย่างง่ายดาย สำหรับการปรับค่าของ AMD processors, sockets, และ chipsets....
    * For download site of AMD OverDrive™, please visit AMD official website for details: http://game.amd.com/us-en/drivers_overdrive.aspx
    ** The support condition of this utility may vary by models(chipsets).
  • ATI CrossFireX™ support
    With support for latest ATI CrossFireX™ technology, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with quad PCI-E connectivity, the GA-890FXA-UD7 allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible.


  • Ultra Durable 3
    GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE’s Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
  • Benefits of 2 oz Copper PCB
    • Cooler than traditional motherboards
    • Enhanced durability
    • Improved energy efficiency
    • Greater margins for overclocking...more
  • 2X Lower Impedance

    Doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking.


  • Dual Channel DDR3 1666+ MHz
    ส่งมอบประสบการณ์ความแรงด้วย DDR3 memory ความเร็วสูงถึง 1666MHz. GIGABYTE Ultra Durable 3 series ช่วยให้ผู้ใช้งานสามารถสัมผัสหน่วยความจำความเร็วสูงได้อย่างเหนือระดับ พร้อมบริโภคพลังงานต่ำ แต่ให้ประสิทธิภาพในการทำงานสูง สำหรับ applications ที่ต้องการความละเอียดสูง โดยเฉพาะระบบ 3D games


  • High Velocity 2X Bandwidth Boost
    ให้อัตราความเร็วของ Bandwidth สูง 2 เท่า
  • EasyTune6
    GIGABYTE ได้ออกแบบ EasyTune6 ทำให้คุณสามารถปรับแต่งค่าต่างๆ ในระบบฮาร์ดแวร์ได้ง่ายขึ้นและมีประสิทธิภาพสูง เช่น การ overclock


  • Smart Backup- Plug & Play Hardware RAID
    GIGABYTE's Smart Backup ได้รับการออกแบบมาสำหรับติดตั้งอุปกรณ์จัดเก็บข้อมูล 4 Serial ATA เพื่อใช้ในการต่อ RAID data protection. โดยจะมีชิพเป็นแบบ Dual onboard RAID ช่วยให้การ configure RAID ทำได้ง่ายกว่าเพราะเป็นแบบอัตโนมัติ, , ลดการทำงานของ CPU และ backup ในแบบ real-time
  • GIGABYTE innovative technology- Easy Energy Saver
    GIGABYTE Easy Energy Saver เป็นฟีเจอร์ที่ได้รับการออกแบบมาเป็นพิเศษ สำหรับช่วยจัดการระบบประหยัดพลังงาน สามารถปรับแต่งเพิ่มลดพลังของ CPU ได้, สามารถควบคุมระบบจัดการพลังงานได้อย่างมีเสถียรภาพ มีความเข้ากันได้ กับแพลตฟอร์ม AMD ปลอดปล่อยพลังได้อย่างเต็มที่ พร้อมการประหยัดพลังงานควบคู่กันไป เพื่อประสิทธิภาพที่ดียิ่งกว่า.
  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • Onboard Quick Switches
    Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • 50,000 Hours Japanese Solid Capacitors
    เมนบอร์ด GIGABYTE ทุกรุ่นที่มีเทคโนโลยี Ultra Durable จะได้รับการออกแบบด้วย Solid Capacitors คุณภาพสูงที่ได้รับการพัฒนาจากประเทศญี่ปุ่น ซึ่งโดยเฉลี่ยของอายุการทำงานของ Solid Capacitors จะมีอายุการทำงานที่ยืนยาวกว่า 50,000 ชั่วโมงจึงให้ความน่าเชื่อถือในการทำงานที่สูง พร้อมให้พละกำลังในการทำงานที่ยอดเยี่ยม นับเป็นตัวเก็บประจุไฟฟ้ารุ่นใหม่ที่ให้เสถียรภาพในการทำงานที่ดีมาก และกำลังเป็นที่ต้องการของอุตสาหกรรมในขณะนี้ เพราะสามารถรองรับการทำงานร่วมกับโพรเซสเซอร์ระดับไฮเอนต์ และส่วนประกอบอื่นๆ ที่มีความร้อนสูงได้เป็นอย่างดี นับเป็นส่วนประกอบหลักที่สำคัญที่สุดของการเพิ่มประสิทธิภาพระบบ ที่ต้องทำงานร่วมกับแอพลิเคชันและระบบเกมความเร็วสูงในปัจจุบัน...
