• Supports Intel® Core™ 2 multi-core and 45nm processors to FSB 1600 (O.C.)
  • Solid capacitors design in CPU VRM
  • Dual Channel DDR2 1066(O.C.) for remarkable system performance
  • Ultimate graphics performance with PCI-E x16 interface
  • Integrated high speed SATA 3Gb/s
  • Features high speed Gigabit Ethernet connection
  • Integrated high quality 6-channel audio with S/P-DIF OUT function
Because of chipset limitations, when using FSB 1333 MHz CPU with populating all DIMM sockets, memory frequency will be reduced from the original, and system instability or incorrect detection of memory module may be occur.
Please refer "Memory Support List" for memory support information.
  • Introduction

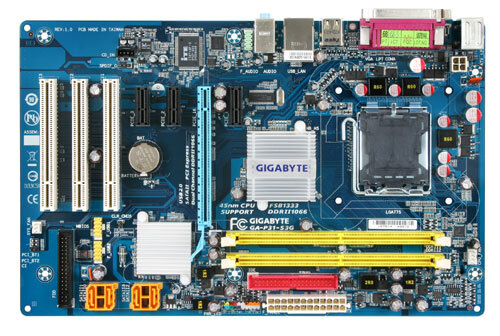

    The GA-P31-S3G is GIGABYTE high performance platform based on the new Intel P31 chipset plus support for the latest multi-core processors up to FSB 1333MHz, including the upcoming 45nm platform.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Intel® Core™ 2 multi-core and upcoming 45nm processors
    GA-P41-ES3G supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform
  • Intel® P31 Express Chipset
    The Intel® P31 Express Chipsets support the latest multi-core processors up to FSB 1333MHz, including the upcoming 45nm platform, with its record breaking performance and greater energy efficiency.
  • Solid Capacitor for CPU VRM
    Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
  • Windows Vista Premium Logo Certified
    Windows Vista Premium จะส่งมอบประสบการณ์ในการใช้งานเครื่องคอมพิวเตอร์ที่ยอดเยี่ยม ออกแบบมาเพื่อเปลี่ยนมุมมอง และค้นหา จัดการข้อมูลดิจิตอลที่มีคุณภาพ ผ่านโซลูชั่น P965/G965/946/945 สำหรับ Vista Premium, GIGABYTE ได้พยายามนำเสนอประสบการณ์ของเดสก์ ท็อปพีซีที่ดีที่สุด ใช้งานง่ายและเป็นระบบปฏิบัติการใหม่ล่าสุด....more
  • Dual Channel DDR2 1066 by O.C
    Get a jump in memory performance with the advanced technology of DDR2 1066 memory architecture by overclocking, which delivers superior performance for the most demanding applications.
  • SATA 3Gb/s storage interface
    ให้ bandwidth lสูง 1.5Gb/s to 3Gb/s. นับเป็นเทคโนโลยีในการโอนถ่ายข้อมูลใหม่สำหรับฮาร์ดดิสก์ความเร็วสูง. รองรับ Hot Plug ฟังก์ชันที่ไม่ต้องปิดเครื่อง pc เมื่อมีการถอดฮาร์ดดิสก์
  • High quality 6-channel audio with S/P-DIF function
    มาพร้อม Realtek ALC662 audio CODEC chip, ชิพเสียงคุณภาพดีที่ให้ระบบเสียงในแบบ 6-channel audio สำหรับการรับชมภาพยนต์และเกมส์
  • RoHS compliant
    As a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.
  • Speed
    ฟีเจอร์ Speed จะมาพร้อมมาเธอบอร์ด GIGABYTE S-series ทุกรุ่นสำหรับการ over-clocking และ over-voltage software settings อย่างมีประสิทธิภาพ...more
  • Smart
    ความ เป็นอัจฉริยะมาเธอร์บอร์ดของ GIGABYTE S-series ส่งผลให้ซอฟต์แวร์นวัตกรรมที่เป็นลิขสิทธิ์ส่วนตัวของ GIGABYTE อาทิ Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, และ Smart Fan. BIOS และการจัดการไดร์เวอร์ที่ปัจจุบันกลายเป็นเรื่องง่ายดายสำหรับการใช้งานของ ผู้ใช้ผ่านฟีเจอร์อัจฉริยะของ GIGABYTE Smart!...more
  • Safe
    ความ ปลอดภัยเป็นฟีเจอร์หลักของมาเธอร์บอร์ของ GIGABYTE กับองค์ประกอบดังต่อไปนี้ : การออกแบบฮาร์ดแวร์ที่ยอดเยี่ยมเป็นที่ยอมรับ, การเข้าเสริมการปกป้อง BIOS ผ่านเทคโนโลยี GIGABYTE Virtual Dual BIOS Technology และเทคโนโลยีกู้คืนการติดตั้ง (GIGABYTE BIOS Setting Recovery Technology), ซอฟต์แวร์ระบบอันเป็นลักษณะเฉพาะตัว อาทิ Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., และ C.O.M. ที่ช่วยเพิ่มความแข็งแกร่งให้กับความเสถียรและความน่าเชื่อถือของพีซีของคุณ เอง...more

* คำว่ำ HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress และโลโก้ HDMI เป็ นเคร ื่องหมำยกำรค้ำหรือเครื่องหมำยกำรค้ำจดทะเบียนของ HDMI Licensing Administrator, Inc.
* ข้อมูลเบื้องต้นมีไว้สำหรับอ้างอิงเท่านั้น GIGABYTE ขอสงวนสิทธิ์ในการปรับเปลี่ยนหรือแก้ไขเนื้อหาได้ตลอดเวลาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
* ประสิทธิภาพสูงสุดที่ใช้ในการประชาสัมพันธ์เป็นเพียงข้อมูลตามทฤษฎีจากผู้ผลิตชิปเซ็ตที่เกี่ยวข้อง หรือองค์กรที่กำหนดคุณสมบัติอินเตอร์เฟส ประสิทธิภาพที่แท้จริงอาจแตกต่างกันโดยการตั้งค่าของระบบที่ไม่เหมือนกัน
* เครื่องหมายการค้าและโลโก้คุณสมบัติต่างๆ เป็นของผู้ถือสิทธิ์นั้นๆ
* เนื่องจากความต้องการหน่วยความจำมาตรฐานของสถาปัตยกรรมคอมพิวเตอร์ต่อหน่วยที่ไม่เหมือนกัน ดังนั้นขนาดหน่วยความจำที่จำเป็นอาจน้อยกว่าจำนวนที่ระบุไว้ก็ได้
